MAC15-8-D1 datasheet, PDF - EEWORLD Datasheet

MAC15-8-D1: DescriptionTRIAC, 600V V(DRM), 15A I(T)RMS, TO-220AB,; CategoryAnalog mixed-signal IC Trigger device; File Size128KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

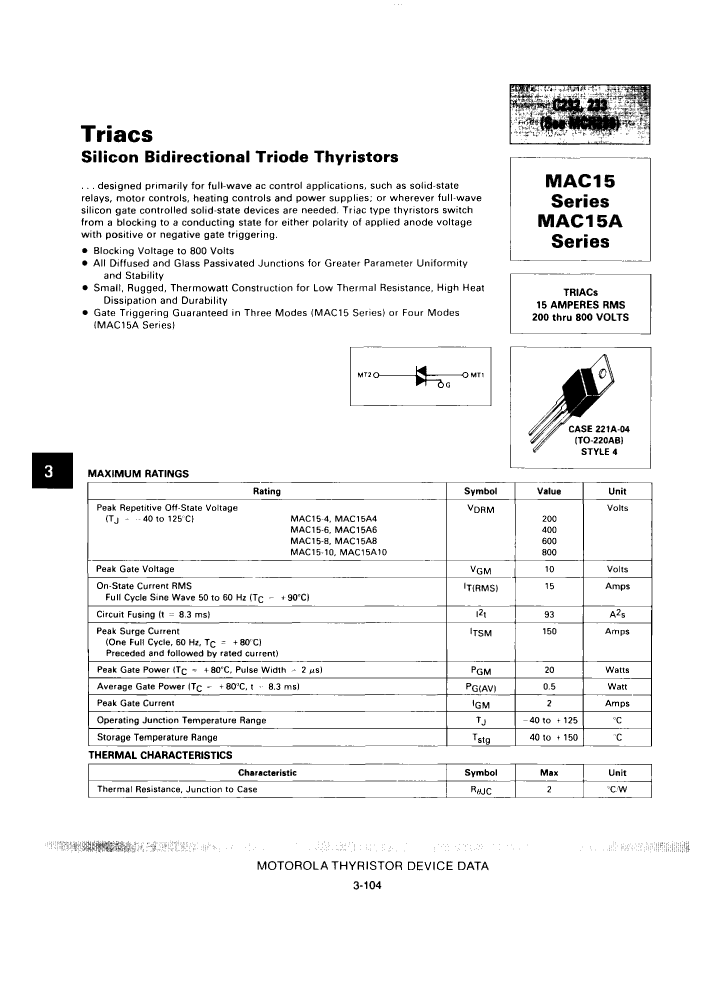

MAC15-8-D1 Overview

TRIAC, 600V V(DRM), 15A I(T)RMS, TO-220AB,

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Is Samacsys	N
Shell connection	MAIN TERMINAL 2
Configuration	SINGLE

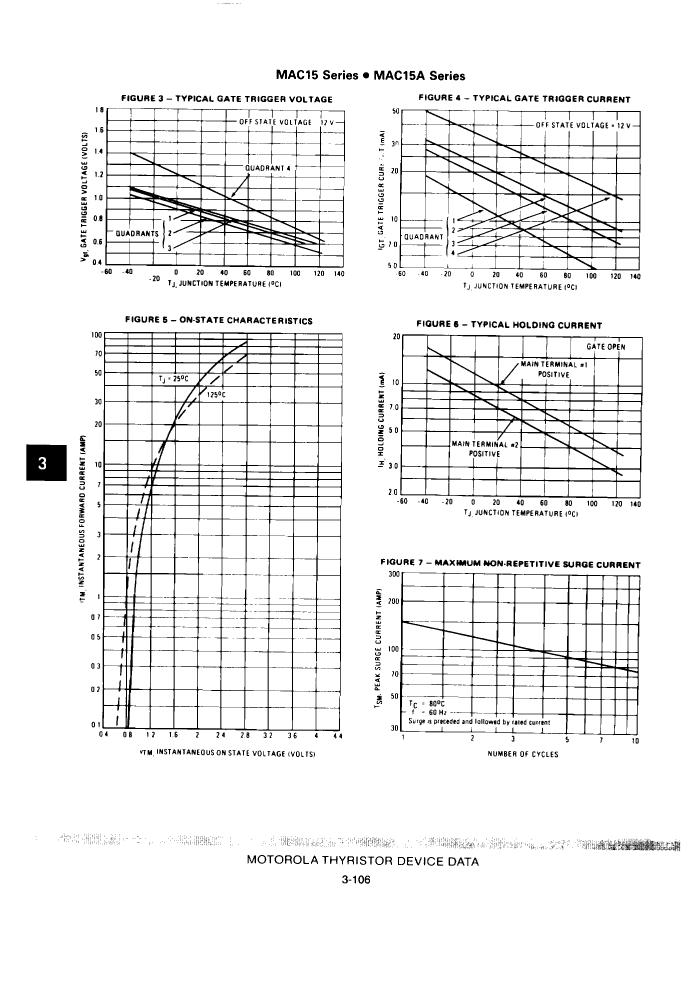

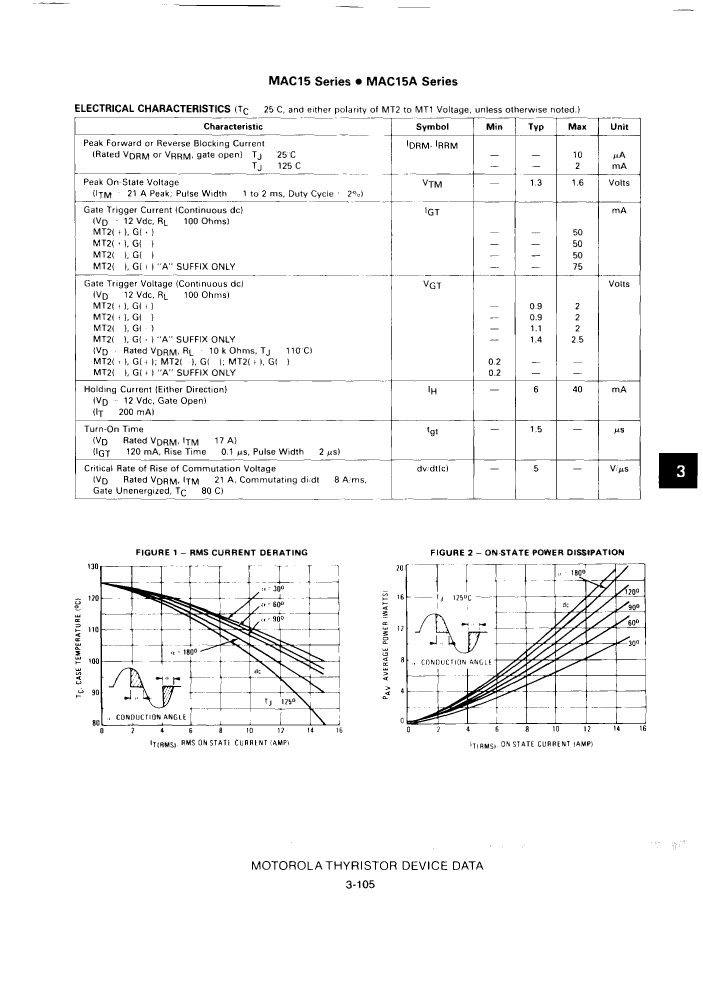

Maximum DC gate trigger current	50 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	40 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3

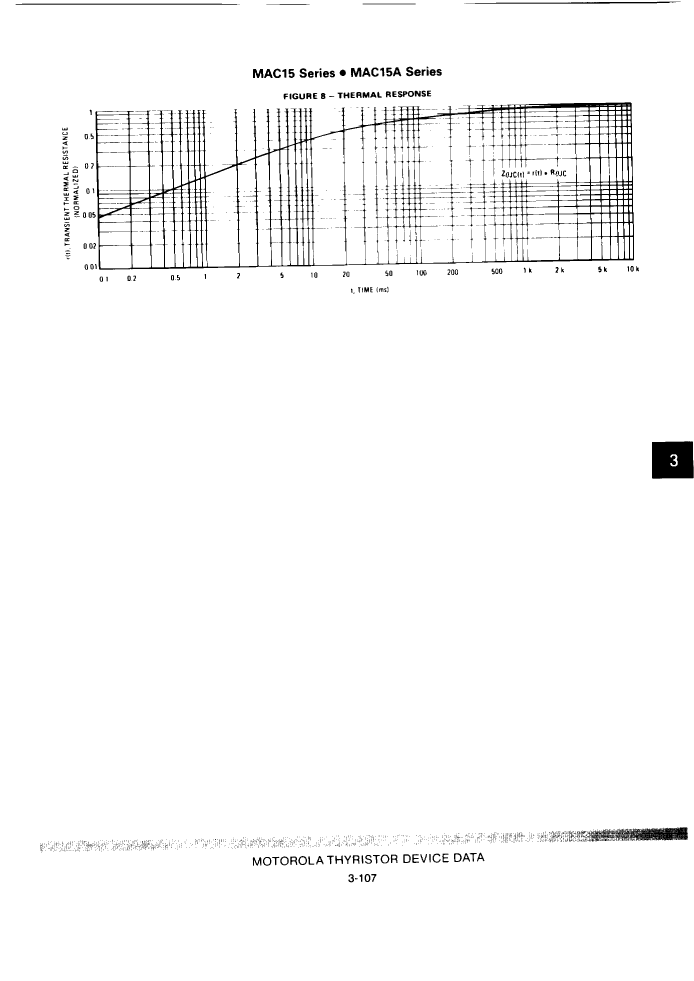

Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	15 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	600 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	TRIAC
Base Number Matches	1
