A301T datasheet, PDF - EEWORLD Datasheet

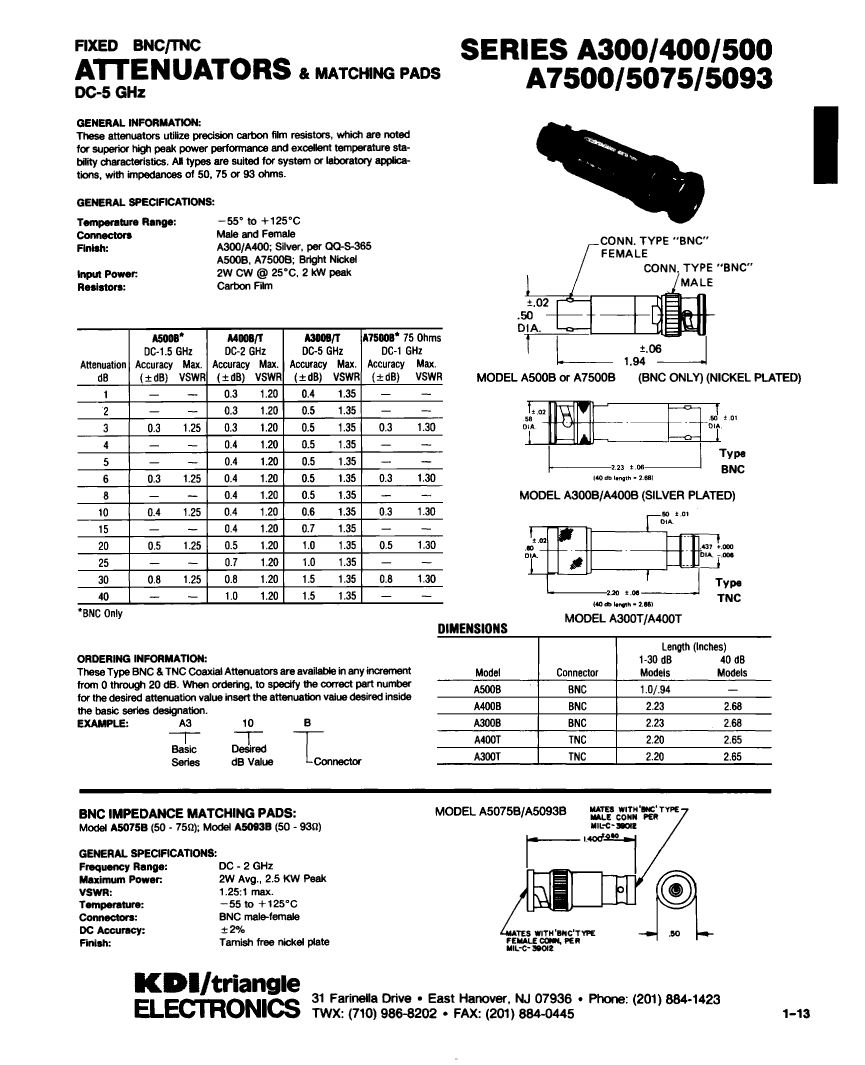

A301T: DescriptionRF/Microwave Attenuator, 0 MHz - 5000 MHz RF/MICROWAVE FIXED ATTENUATOR; CategoryWireless rf/communication Radio frequency and microwave; File Size49KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric View All

A301T Overview

RF/Microwave Attenuator, 0 MHz - 5000 MHz RF/MICROWAVE FIXED ATTENUATOR

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Is Samacsys	N
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	5000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.35
Base Number Matches	1
