DECLDL-2-7.5 datasheet, PDF - EEWORLD Datasheet

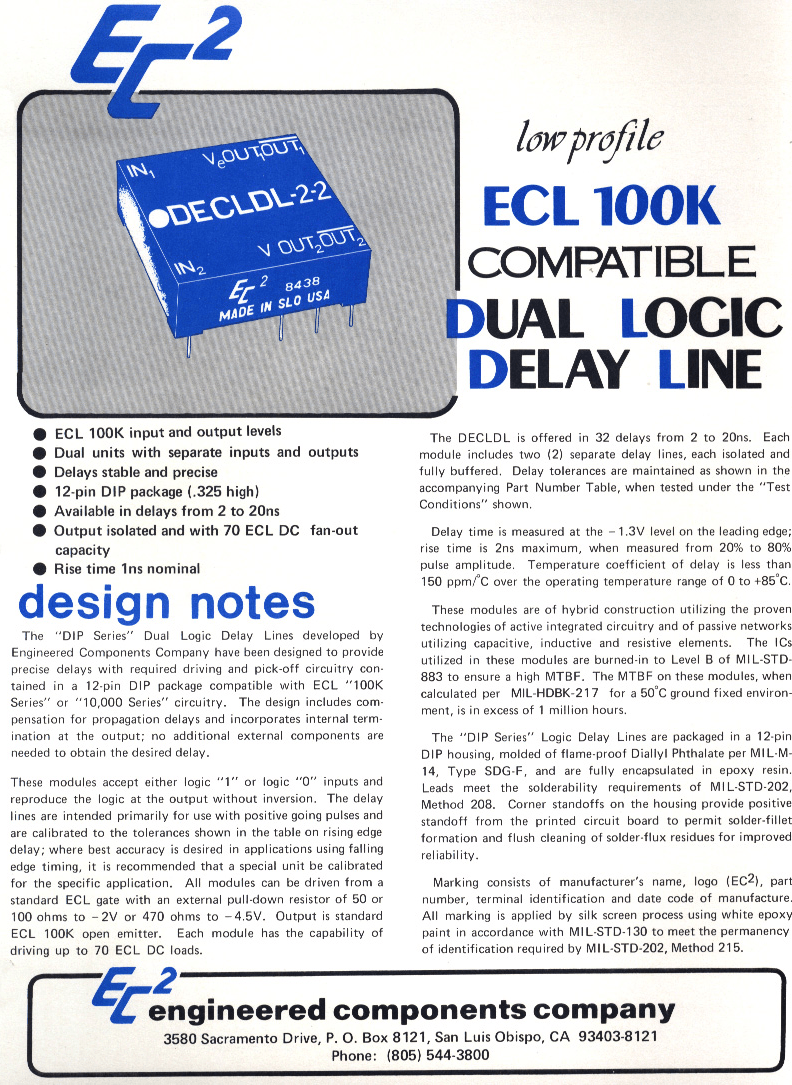

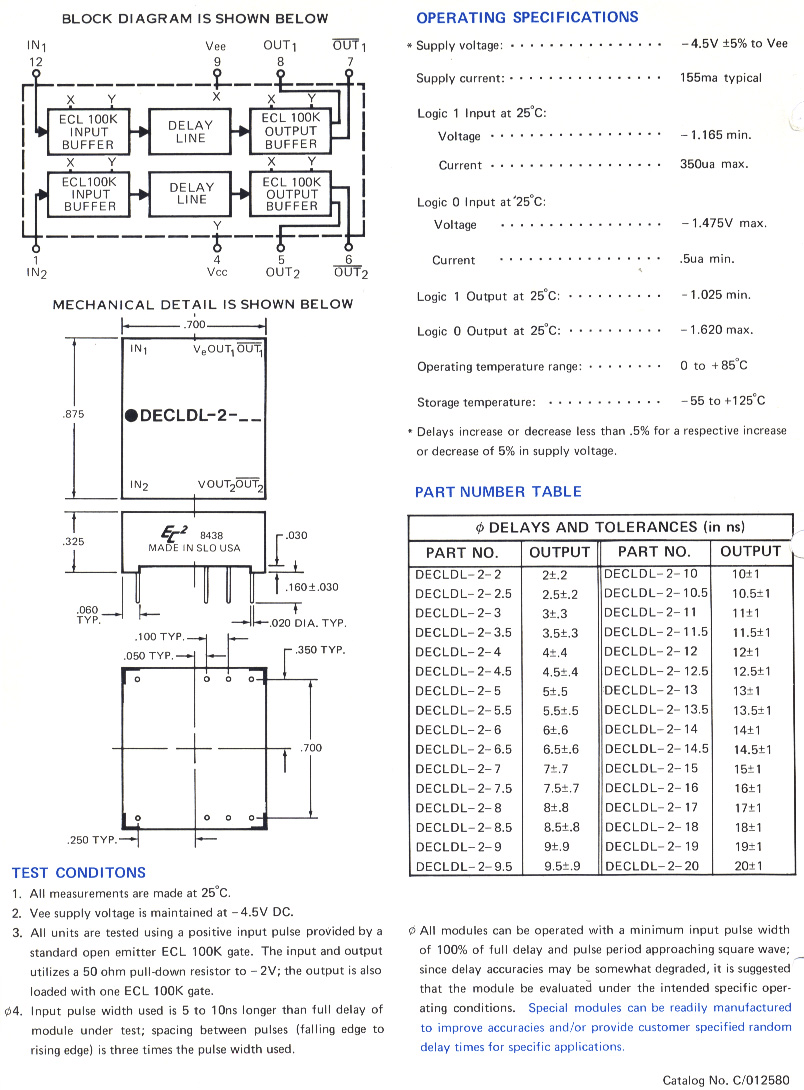

DECLDL-2-7.5: DescriptionActive Delay Line, 2-Func, 1-Tap, Complementary Output, ECL, 0.325 INCH HEIGHT, DIP-12/8; Categorylogic logic; File Size951KB，2 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

DECLDL-2-7.5 Overview

Active Delay Line, 2-Func, 1-Tap, Complementary Output, ECL, 0.325 INCH HEIGHT, DIP-12/8

Parameter Name	Attribute value
Maker	Engineered Components Co.
Parts packaging code	DIP
package instruction	QIP, DIP12,.7
Contacts	12/8
Reach Compliance Code	unknown
Is Samacsys	N
Other features	BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 155MA; MAX TEMP. COEFF. CAPTURED
series	100K
JESD-30 code	R-XDIP-P8
length	22.225 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	2
Number of taps/steps	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature
Output characteristics	OPEN-EMITTER
Output polarity	COMPLEMENTARY
Package body material	UNSPECIFIED
encapsulated code	QIP
Encapsulate equivalent code	DIP12,.7
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	-4.5 V
programmable delay line	NO
Prop。Delay @ Nom-Sup	7.5 ns
Certification status	Not Qualified
Maximum seat height	8.255 mm
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	7.5 ns
width	17.78 mm
Base Number Matches	1
