MAC6401N

Description
TRIAC, 800V V(DRM), 30A I(T)RMS, CASE 174-04, 2 PIN
CategoryAnalog mixed-signal IC    Trigger device
File Size140KB,2 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

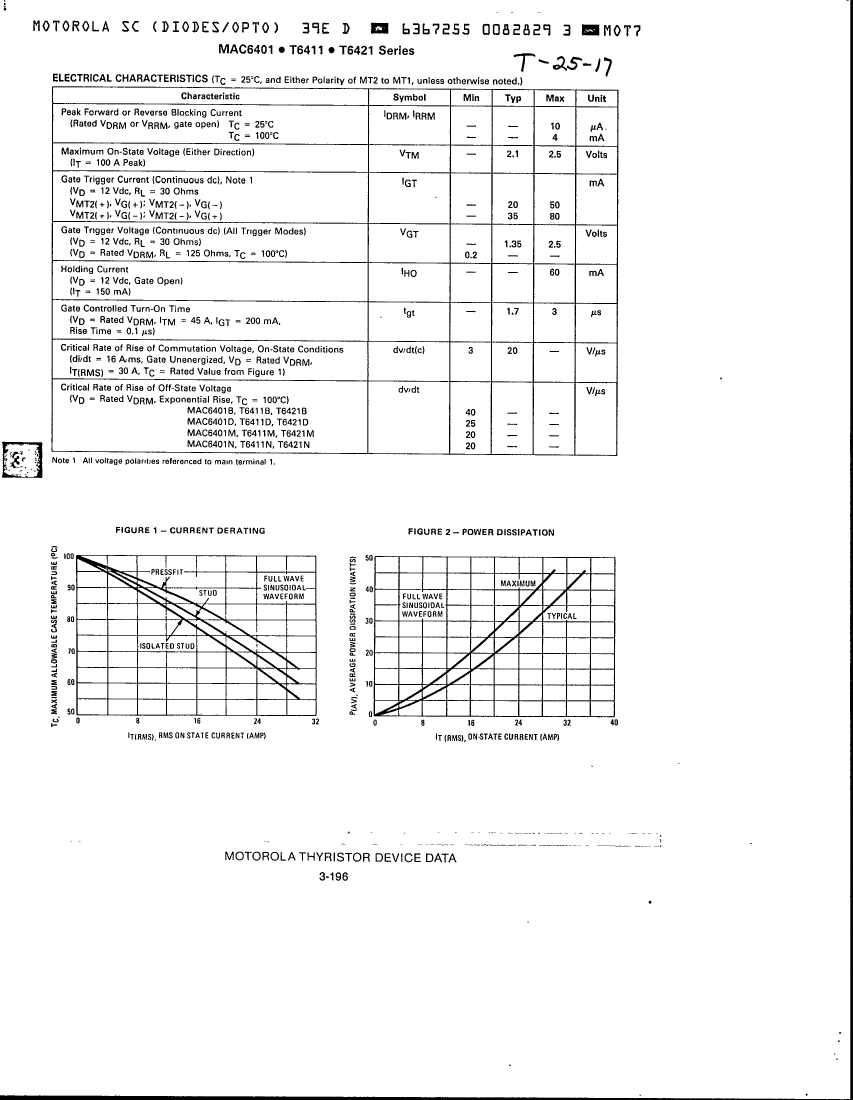

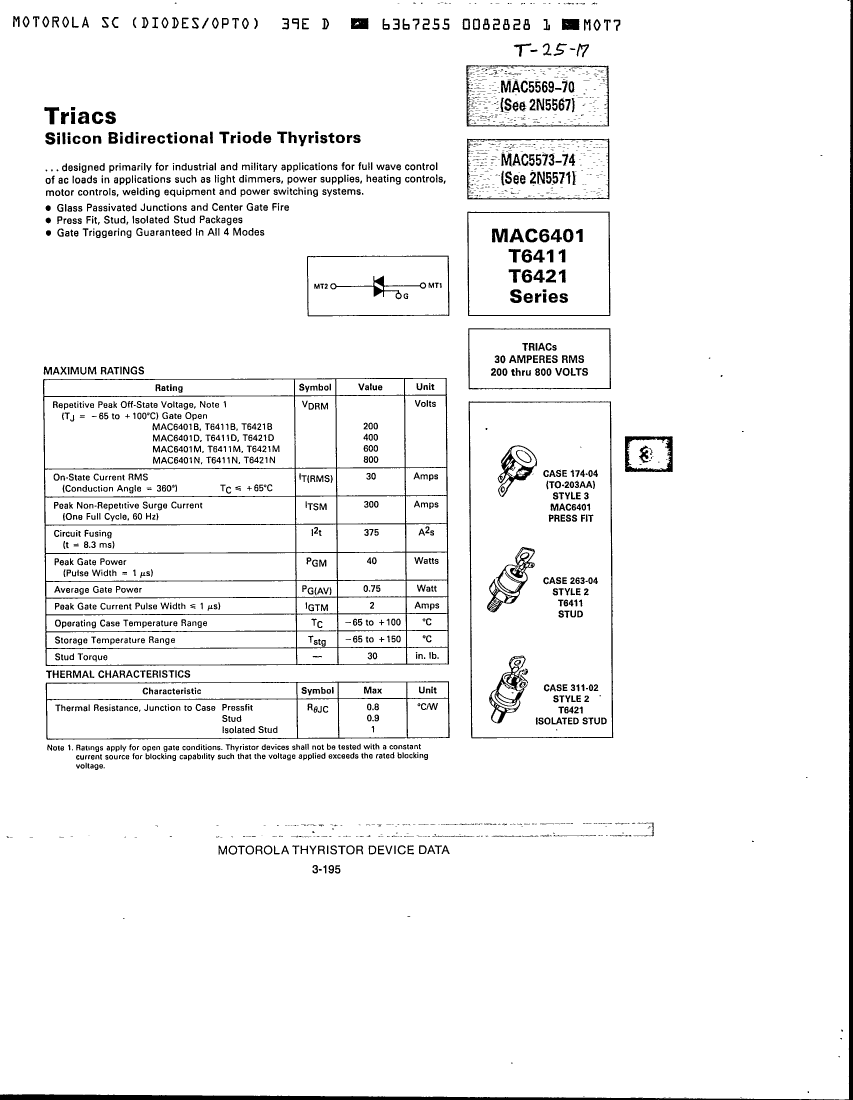

MAC6401N Overview

TRIAC, 800V V(DRM), 30A I(T)RMS, CASE 174-04, 2 PIN

MAC6401N Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
package instructionPRESS FIT, O-MUPF-D2
Reach Compliance Codeunknown
Is SamacsysN
Shell connectionMAIN TERMINAL 2
ConfigurationSINGLE
Critical rise rate of commutation voltage - minimum value3 V/us
Critical rise rate of minimum off-state voltage20 V/us
Maximum DC gate trigger current50 mA
Maximum DC gate trigger voltage2.5 V
Maximum holding current60 mA
JESD-30 codeO-MUPF-D2
JESD-609 codee0
Maximum leakage current4 mA
Number of components1
Number of terminals2
Maximum on-state voltage2.5 V
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Package body materialMETAL
Package shapeROUND
Package formPRESS FIT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current30 A
Maximum repetitive peak off-state leakage current10 µA
Off-state repetitive peak voltage800 V
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formSOLDER LUG
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeTRIAC
Base Number Matches1
