CH1104700UH+/-10%V

Description
General Fixed Inductor, 1 ELEMENT, 4700 uH, GENERAL PURPOSE INDUCTOR, RADIAL LEADED
CategoryPassive components    inductor
File Size25KB,2 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

CH1104700UH+/-10%V Overview

General Fixed Inductor, 1 ELEMENT, 4700 uH, GENERAL PURPOSE INDUCTOR, RADIAL LEADED

CH1104700UH+/-10%V Parametric

Parameter NameAttribute value
MakerVishay
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
DC Resistance5.6 Ω
Nominal inductance(L)4700 µH
Inductor ApplicationsDC-DC CONVERTER
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberCH110
Number of functions1
Number of terminals2
Maximum operating temperature70 °C
Minimum quality factor (at nominal inductance)20
Maximum rated current0.00016 A
self resonant frequency0.54 MHz
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldNO
surface mountNO
Terminal locationRADIAL
Terminal shapeWIRE
Test frequency0.252 MHz
Tolerance10%
Base Number Matches1

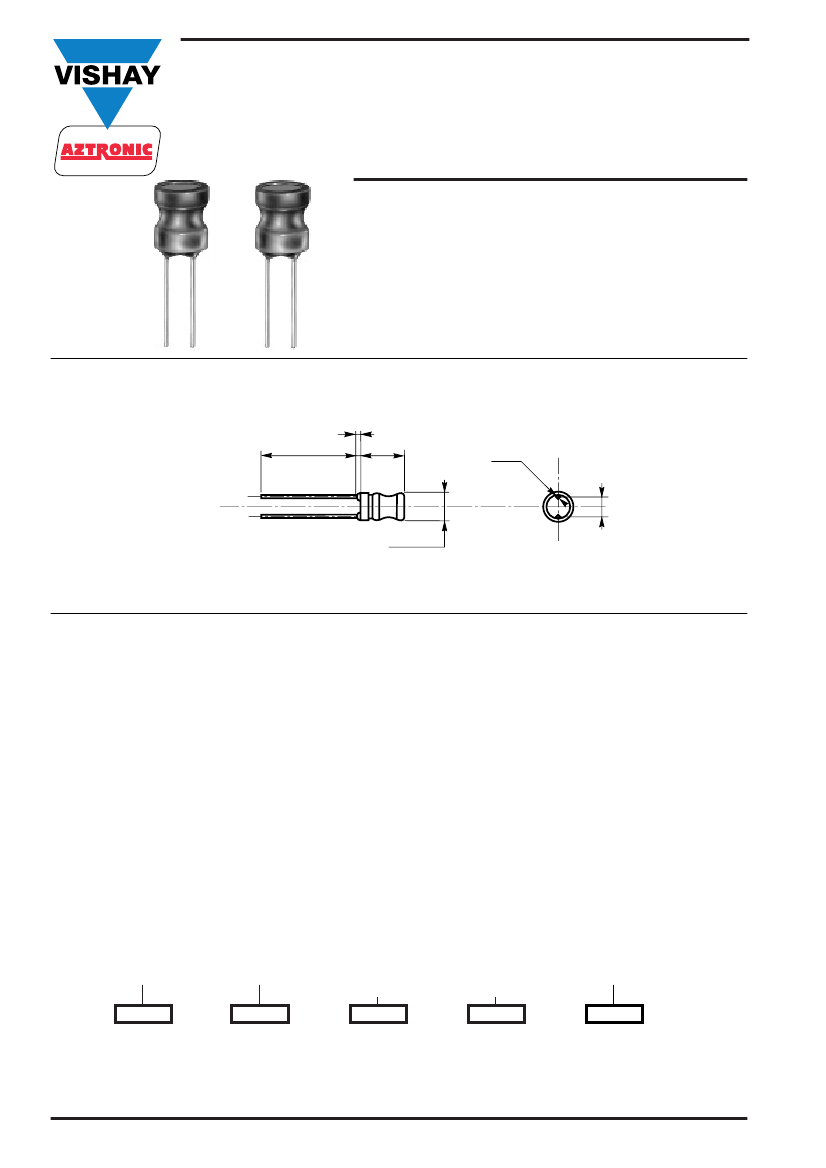

Data sheet E 1/7.116 -
10497
CH110
inductors
– radial leads
– commercial use
Use of a ferrite bobbin with radial terminal configuration allows a high induc-
tance value in a small size.
These inductors CH series are especially designed for power supplies
filtering.
2 max.
25 max.
12 max.
Ø 0,7
5
± 1
Ø 11 max.
Dimensions in mm
SPECIFICATIONS
MECHANICAL
COATING... thermo sleeve
TERMINALS... tinned copper
WEIGHT... 4 g
ENVIRONMENTAL
OPERATING TEMPERATURE...
...
RANGE... + 70°C
TEMPERATURE LIMITS... –20°C +100°C
ELECTRICAL
INDUCTANCE RANGE... 1 µH to 15000 µH
TOLERANCE... ± 10%
MAXIMUM VOLTAGE... 250 V
RMS
MARKING
PACKAGING
Printed in clear : inductance value.
Tape “ammopack” of 1000 pieces.
ORDERING PROCEDURE
SERIES
STYLE
INDUCTANCE
VALUE
STANDARD
TOLERANCE
PACKAGING
CH
110
680 µH
± 10%
B
V : bulk
B : tape ”ammopack”
7-40
