MC74AC32DC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC74AC32DC

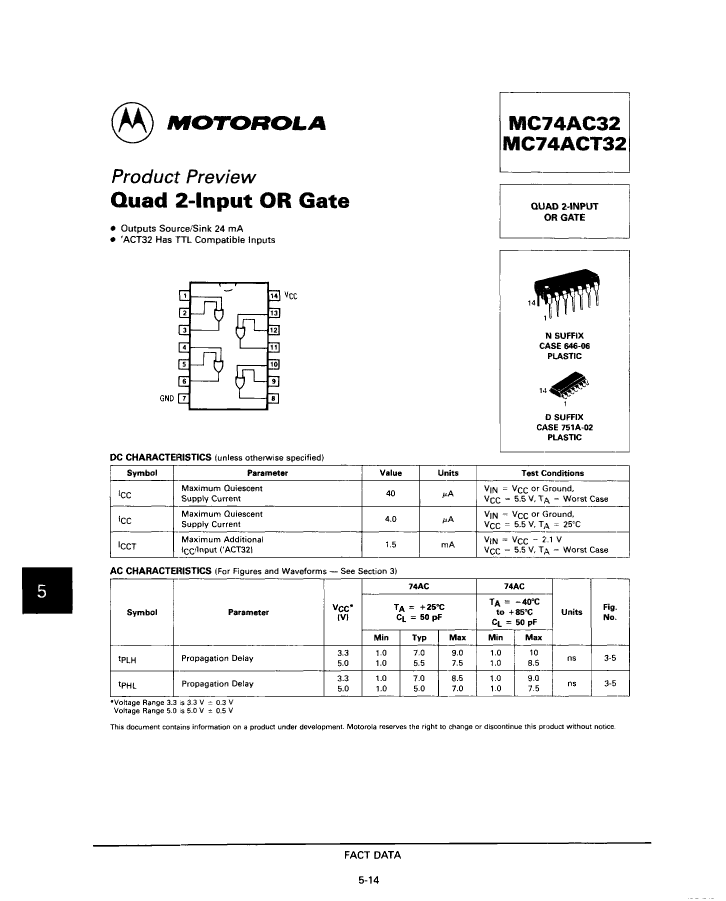

MC74AC32DC: DescriptionAC SERIES, QUAD 2-INPUT OR GATE, PDSO14, PLASTIC, SOIC-14; Categorylogic logic; File Size33KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC74AC32DC Overview

AC SERIES, QUAD 2-INPUT OR GATE, PDSO14, PLASTIC, SOIC-14

MC74AC32DC Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
Is Samacsys	N
series	AC
JESD-30 code	R-PDSO-G14
length	8.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	OR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	7.5 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MC74AC32DC Related Products

	MC74AC32DC	MC74ACT32DCR1	MC74AC32NC	MC74AC32DCR1	MC74ACT32DC	MC74ACT32NC
Description	AC SERIES, QUAD 2-INPUT OR GATE, PDSO14, PLASTIC, SOIC-14	OR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOIC-14	OR Gate, AC Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14	OR Gate, AC Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOIC-14	ACT SERIES, QUAD 2-INPUT OR GATE, PDSO14, PLASTIC, SOIC-14	ACT SERIES, QUAD 2-INPUT OR GATE, PDIP14, PLASTIC, DIP-14
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	SOP,	PLASTIC, SOIC-14	PLASTIC, DIP-14	PLASTIC, SOIC-14	SOP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	AC	ACT	AC	AC	ACT	ACT
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14
length	8.65 mm	8.65 mm	18.86 mm	8.65 mm	8.65 mm	18.86 mm
Logic integrated circuit type	OR GATE	OR GATE	OR GATE	OR GATE	OR GATE	OR GATE
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP	SOP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	4.69 mm	1.75 mm	1.75 mm	4.69 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	7.62 mm	3.9 mm	3.9 mm	7.62 mm
Is Samacsys	N	N	N	N	-	-
Base Number Matches	1	1	1	1	-	-
