MC14556BCPDS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC14556BCPDS

MC14556BCPDS: Description4000/14000/40000 SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16, 648-06; Categorylogic logic; File Size110KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC14556BCPDS Overview

4000/14000/40000 SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16, 648-06

MC14556BCPDS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
series	4000/14000/40000
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	20.07 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V
propagation delay (tpd)	440 ns
Certification status	Not Qualified
Maximum seat height	4.69 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

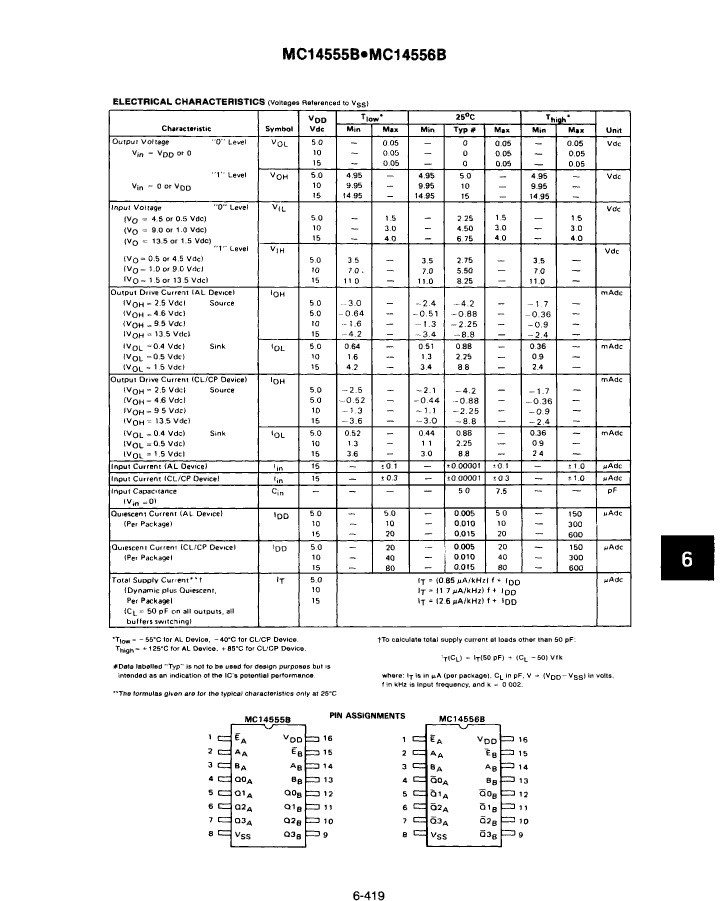

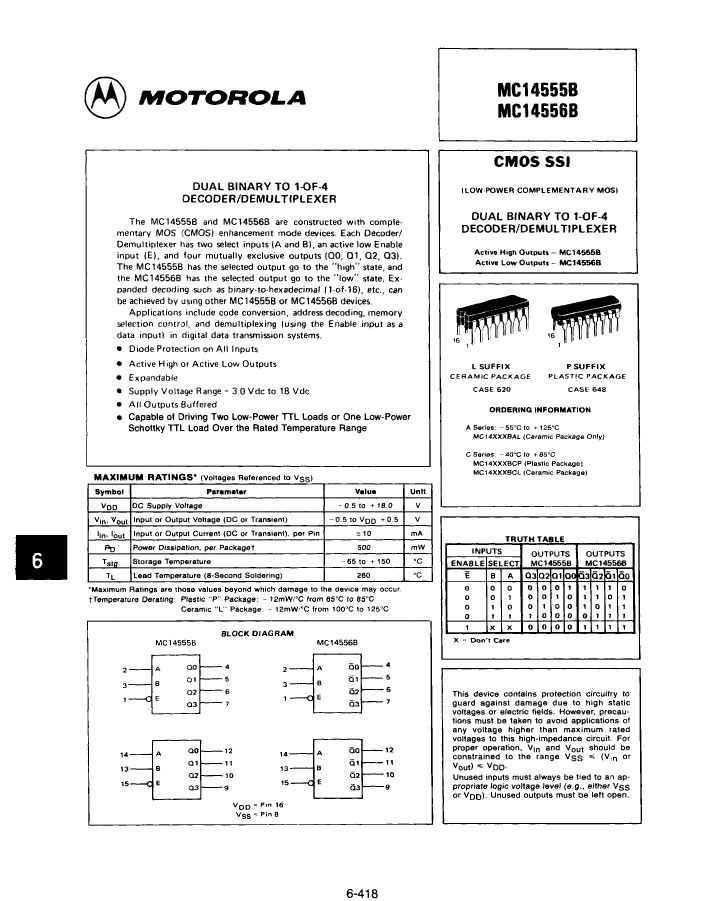

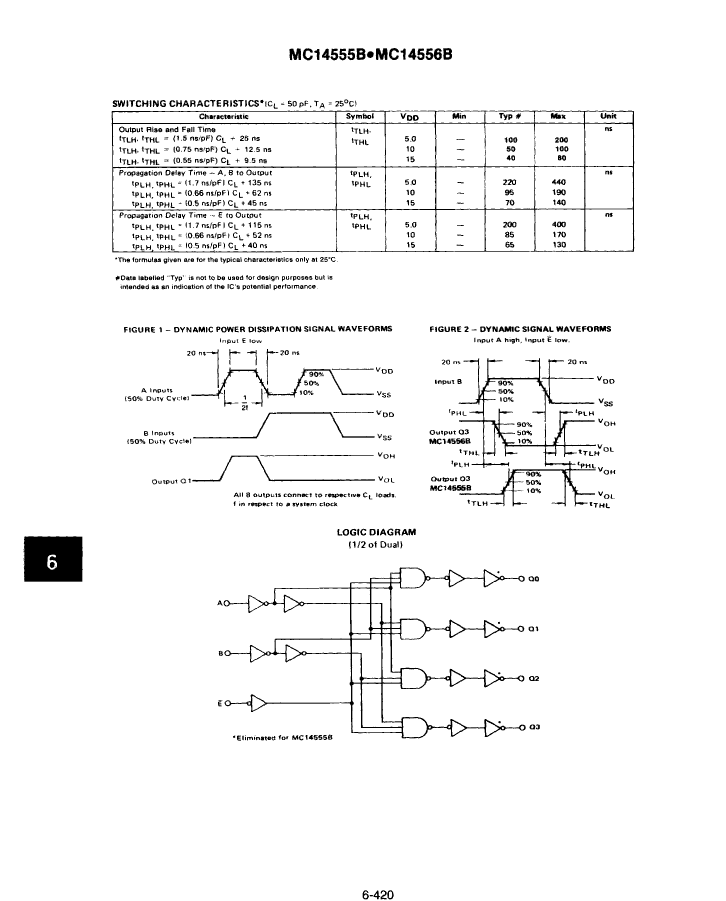

Preview

Download Datasheet

View All

MC14556BCPDS Related Products

	MC14556BCPDS	MC14555BCPDS	MC14555BCLD	MC14555BCLDS	MC14556BCLDS	MC14555BAL	MC14555BALD	MC14556BAL	MC14556BALD
Description	4000/14000/40000 SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16, 648-06	4000/14000/40000 SERIES, OTHER DECODER/DRIVER, TRUE OUTPUT, PDIP16, 648-06	4000/14000/40000 SERIES, OTHER DECODER/DRIVER, TRUE OUTPUT, CDIP16, 620-09	4000/14000/40000 SERIES, OTHER DECODER/DRIVER, TRUE OUTPUT, CDIP16, 620-09	4000/14000/40000 SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP16, 620-09	Decoder/Driver, 4000/14000/40000 Series, True Output, CMOS, CDIP16, 620-09	4000/14000/40000 SERIES, OTHER DECODER/DRIVER, TRUE OUTPUT, CDIP16, 620-09	4000/14000/40000 SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP16, 620-09	4000/14000/40000 SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP16, 620-09
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP,	DIP, DIP16,.3	DIP,	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
series	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	20.07 mm	20.07 mm	19.3 mm	19.3 mm	19.3 mm	19.3 mm	19.3 mm	19.3 mm	19.3 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
Number of functions	2	2	2	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	TRUE	TRUE	TRUE	INVERTED	TRUE	TRUE	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
propagation delay (tpd)	440 ns	440 ns	440 ns	440 ns	440 ns	440 ns	440 ns	440 ns	440 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.69 mm	4.69 mm	4.19 mm	4.19 mm	4.19 mm	4.19 mm	4.19 mm	4.19 mm	4.19 mm
Maximum supply voltage (Vsup)	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	DIP	DIP	DIP	DIP	DIP	-	DIP	DIP	DIP
Contacts	16	16	16	16	16	-	16	16	16
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	-	DIP16,.3	-	DIP16,.3
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	-	5/15 V	-	5/15 V
Base Number Matches	1	1	1	1	1	-	-	-	-
