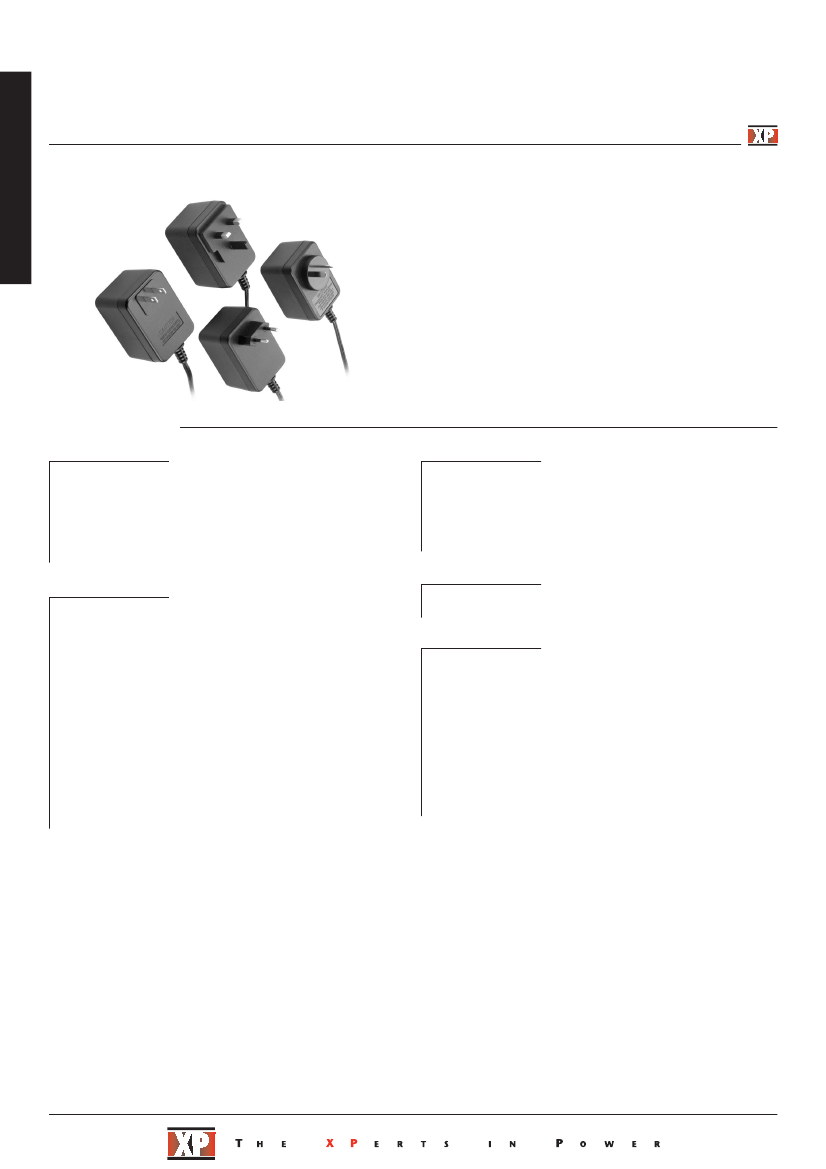

AC-DC
6-25 Watts
AEP Series
•
•
•
•
•
•
•
Universal Input 90-264 VAC
xppower.com
Interchangeable Mains Plug, 10 Watt Models
Continous Short Circuit Protection
EN550022 Class B
Low Cost
6, 10, 15 and 25 Watt Versions
Non-standard Outputs Available
Specification
Input
Input Voltage
Input Frequency
Input Current
• 90-264 VAC
• 47-63 Hz
•
0.2/0.09 A at 115/230 VAC (6W & 10W)
0.3/0.15 A at 115/230 VAC (15W)
0.5/0.3 A at 115/230 VAC (25W)
• 15/30 A max at 115/230 VAC (6W & 10W)
25/50 A max at 115/230 VAC (15W & 25W)
General
Efficiency
• Typically 70% for 6 W,
75% for 10 and 15 W,
80% for 25 W
• 3000 VAC Input to Output
• 60 kHz ± 10 kHz
• >230 kHrs, MIL-HDBK-217F
Inrush Current
Isolation
Switching Frequency
MTBF
Environmental
Output
Output Voltage
Initial Set Accuracy
Minimum Load
Start Up Delay
•
•
•
•
See tables
See tables
No minimum load requirement
6 W 100 ms,
10 W 240 ms,
15 W 270 ms,
25 W 280 ms
10 ms typical at 115 VAC,
60 ms typical at 230 VAC
See tables
See tables
1 % pk-pk max (see note 2)
125% typical
Trip and restart (Hiccup mode)
Continuous (auto recovery)
Operating Temperature
• 0 ˚C to +40 ˚C
Storage Temperature
• -20 ˚C to +85 ˚C
EMC & Safety
Emissions
ESD Immunity
Radiated Immunity
EFT/Burst
Surge
Conducted Immunity
Dips & Interruptions
EN55022, level B
EN61000-4-2, level 2 Perf Criteria B
EN61000-4-3, level 2 Perf Criteria A
EN61000-4-4, level 2 Perf Criteria B
EN61000-4-5, level 2 Perf Criteria B
EN61000-4-6, level 2 Perf Criteria B
EN61000-4-11, 5 % U
T
10 ms, Perf
Criteria B, 70 % U
T
500 ms,
Perf Criteria C
• EN60950, UL1950,
CSA C22.2 No.234 cUL
•
•
•
•
•
•
•
Hold Up Time
Line Regulation
Load Regulation
Ripple & Noise
Overvoltage Protection
Overload Protection
Short Circuit Protection
•
•
•
•
•
•
•
Safety Approvals
AC-DC
Models and Ratings
Output Voltage
4.2
5.0
6.0
6.5
7.0
7.5
8.0
9.0
10.0
12.0
Notes
1. Initial set accuracy is at 60% full load.
2. Add a 0.1µF E.L capacitor to output for ripple & noise measurement at 20 MHz BW.
3. Line regulation measured from 100 VAC to 240 VAC, full load.
4. Load regulation measured from 60% to full load and from 60% to 20% load (60% ±40% load).
AEP06
Ripple & Noise
(2)
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
Initial Set
Accuracy
(1)
±3%
±3%
±3%
±3%
±3%
±3%
±3%
±3%
±3%
±3%
Line
Regulation
(3)
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
Load
Regulation
(4)
±4%
±4%
±4%
±3%
±3%
±3%
±3%
±2%
±2%
±2%
Model
Number
AEP06US042
AEP06US05
AEP06US06
AEP06US065
AEP06US07
AEP06US075
AEP06US08
AEP06US09
AEP06US10
AEP06US12
Output Current
1000
1200
1000
650
650
650
650
650
600
500
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
V
V
V
V
V
V
V
V
V
V

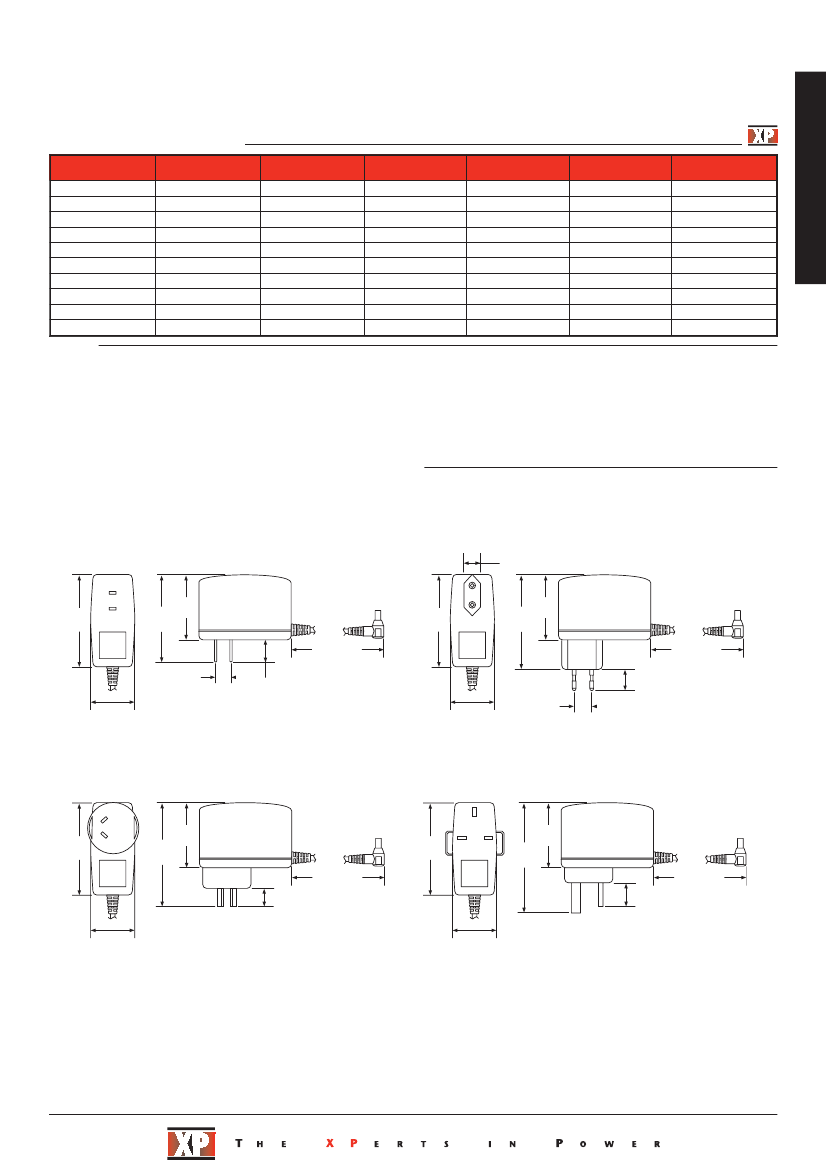

Mechanical Details 6 & 15 Watt Models
All dimensions are in inches (mm)
0.54
(13.7)
2.83
(72.0)
2.05
2.71 (52.0)
(68.9)
70.87 ±1.97
(1800.0 ±50.0)
0.50
(12.7)
1.38
(35.0)
0.67
(17.0)
2.83
(72.0)
2.05
3.53 (52.0)
(89.7)
70.87 ±1.97
(1800.0 ±50.0)
0.75
(19.0)
1.38
(35.0)
0.71
(18.0)
To order US add suffix’-US’ to model number
To order European add suffix’-EU’ to model number
2.83
(72.0)
3.31
(84.0)
2.05
(52.0)
2.83
(72.0)
70.87 ±1.97
(1800.0 ±50.0)
0.67 (17.0)
2.05
(52.0)
3.40
(86.3)
70.87 ±1.97
(1800.0 ±50.0)
0.71 (18.0)
1.38
(35.0)
1.38
(35.0)
To order Australian add suffix’-AU’ to model number
To order UK add suffix’-UK’ to model number
Weight:
AEP06: 0.3 lb (135 g)
AEP15: 0.35 lb (160 g)
Output Plug:
0.22 x 0.10 x 0.37 (5.5 x 2.5 x 9.5)
AC-DC
Models and Ratings
Output Voltage
3.3
5.0
6.0
7.5
9.0
12.0
13.6
15.0
18.0
24.0
Notes
1. Initial set accuracy is at 60% full load.
2. Add a 0.1µF E.L capacitor to output for ripple & noise measurement at 20 MHz BW.
3. Line regulation measured from 100 VAC to 240 VAC, full load.
4. Load regulation measured from 60% to full load and from 60% to 20% load (60% ±40% load).
AEP10
Ripple & Noise
(2)
50 mV pk-pk
50 mV pk-pk
1%
1%
1%
1%
1%
1%
1%
1%
Initial Set
Accuracy
(1)
±3%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
Line
Regulation
(3)
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
Load
Regulation
(4)
±4%
±4%
±3%
±3%
±2%
±2%
±2%
±2%
±2%
±2%
Model
Number
AEP10US033
AEP10US05
AEP10US06
AEP10US075
AEP10US09
AEP10US12
AEP10US136
AEP10US15
AEP10US18
AEP10US24
Output Current
1600
1600
1500
1200
1100
850
750
700
550
400
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
V
V
V
V
V
V
V
V
V
V
Mechanical Details 10 Watt Models
All dimensions are in inches (mm)
2.83
(72.0)
1.81
(46.0)
70.87 ±1.97
(1800.0 ±50.0)
1.38
(35.0)
Weight:
0.3 lb (135 g)
Output Plug:
0.22 x 0.10 x 0.37 (5.5 x 2.5 x 9.5)
NB: The AEP10 has four interchangeable mains adapter plugs.
All four mains adapter plugs are supplied with these units.
0.49 (12.5) ±0.002 (0.05)
0.72 (18.3) ±0.002 (0.05)
1.49
(38.0)
1.14
(28.9)
0.75
(19.0)
0.70
(17.7)
0.63
(16.0) 1.50
(38.0)
0.69
(17.4)
0.67
(17.0)
1.10
(28.0)
0.99
(25.1)
1.24
(31.5)
UK
US
EUROPEAN
AUSTRALIAN
AC-DC
Models and Ratings
Output Voltage
5.0
6.0
7.5
9.0
12.0
13.6
15.0
18.0
24.0
3.3
5.0
12.0
15.0
18.0
24.0
Notes
1. Initial set accuracy is at 60% full load.
2. Add a 0.1µF E.L capacitor to output for ripple & noise measurement at 20 MHz BW.
3. Line regulation measured from 100 VAC to 240 VAC, full load.
4. Load regulation measured from 60% to full load and from 60% to 20% load (60% ±40% load).
AEP15-25
Ripple & Noise
(2)
1%
1%
1%
1%
1%
1%
1%
1%
1%
50 mV pk-pk
1%
1%
1%
1%
1%
Initial Set
Accuracy
(1)
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
Line
Regulation
(3)
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
Load
Regulation
(4)
±4%
±4%
±4%
±4%
±4%
±4%
±4%
±4%
±4%
±6%
±6%
±5%
±3%
±2%
±2%
Model
Number
AEP15US05
AEP15US06
AEP15US075
AEP15US09
AEP15US12
AEP15US136
AEP15US15
AEP15US18
AEP15US24
AEP25US033
AEP25US05
AEP25US12
AEP25US15
AEP25US18
AEP25US24
Output Current
2.00
1.50
1.60
1.40
1.00
1.00
1.00
0.83
0.63
4.00
4.00
2.10
1.67
1.40
1.05
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
Mechanical Details 25 Watt Models
All dimensions are in inches (mm)
For
15 Watt model
mechanical details see 6 Watt model
3.19
(81.0)
1.89
(48.0)
3.19
(81.0)
70.87 ±1.97
(1800.0 ±50.0)
1.89
(48.0)
3.19
(81.0)
2.20
(56.0)
70.87 ±1.97
(1800.0 ±50.0)
2.20
(56.0)
3.19
(81.0)
To order US add suffix’-US’ to model number
To order European add suffix’-EU’ to model number
3.19
(81.0)
1.89
(48.0)
3.19
(81.0)
70.87 ±1.97
(1800.0 ±50.0)
3.19
(81.0)
1.89
(48.0)
70.87 ±1.97
(1800.0 ±50.0)
2.20
(56.0)
2.20
(56.0)
3.19
(81.0)
To order Australian add suffix’-AU’ to model number
To order UK add suffix’-UK’ to model number
Weight:
0.485 lb (220 g)
Output Plug:
0.22 x 0.10 x 0.37 (5.5 x 2.5 x 9.5)
