51939-326: DescriptionBoard Connector, 13 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size156KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51939-326 Overview

Board Connector, 13 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

51939-326 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
body width	0.574 inch
subject depth	0.93 inch
body length	1.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51939
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	13
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N
Base Number Matches	1

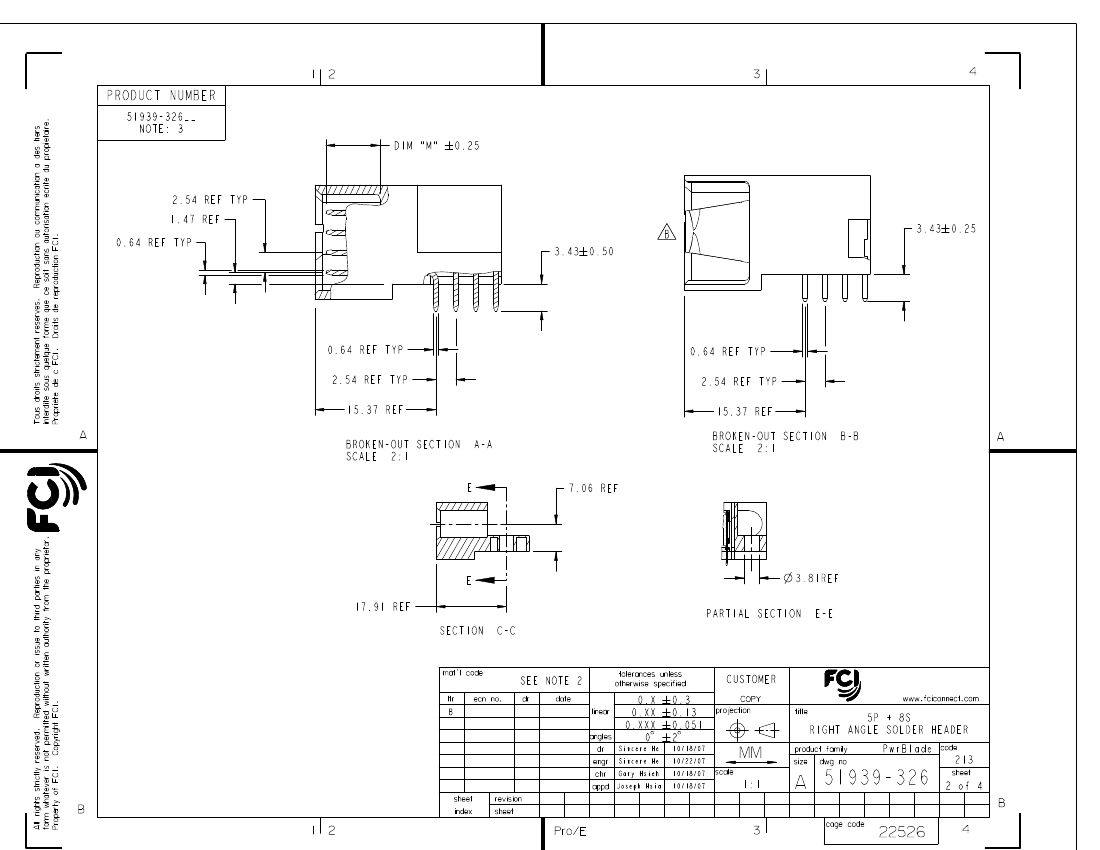

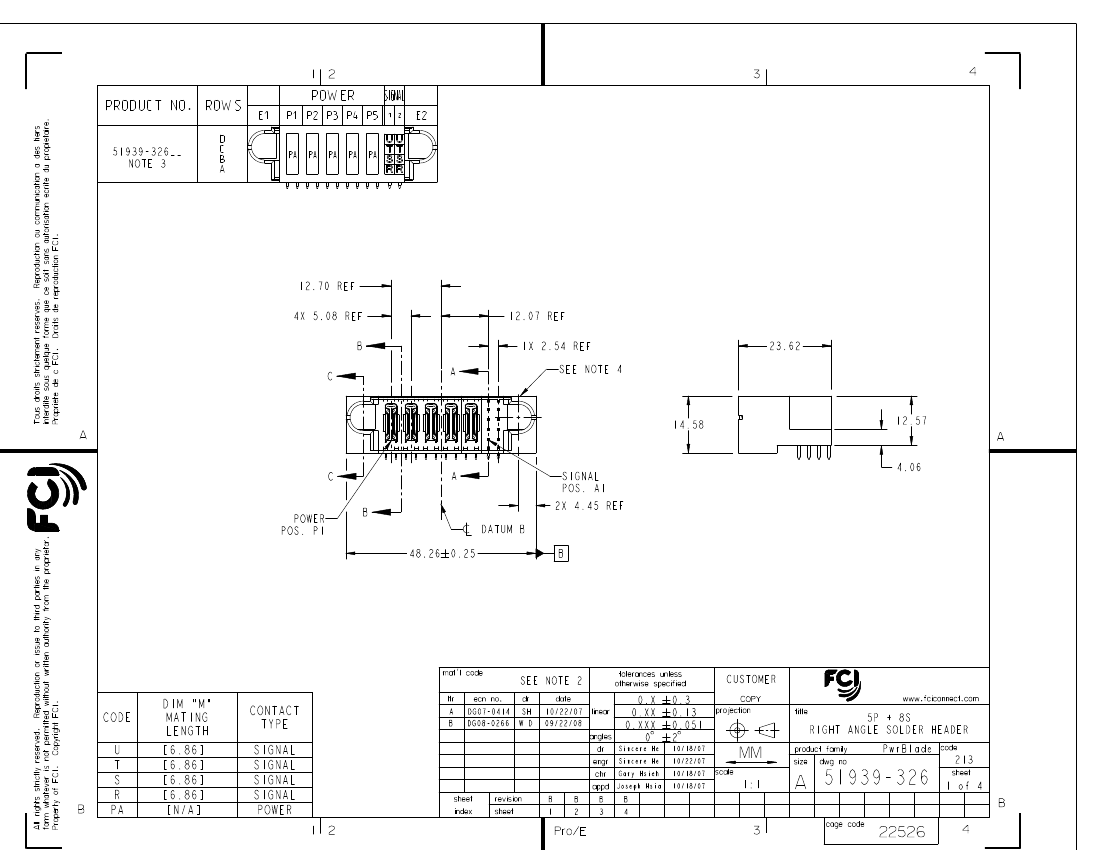

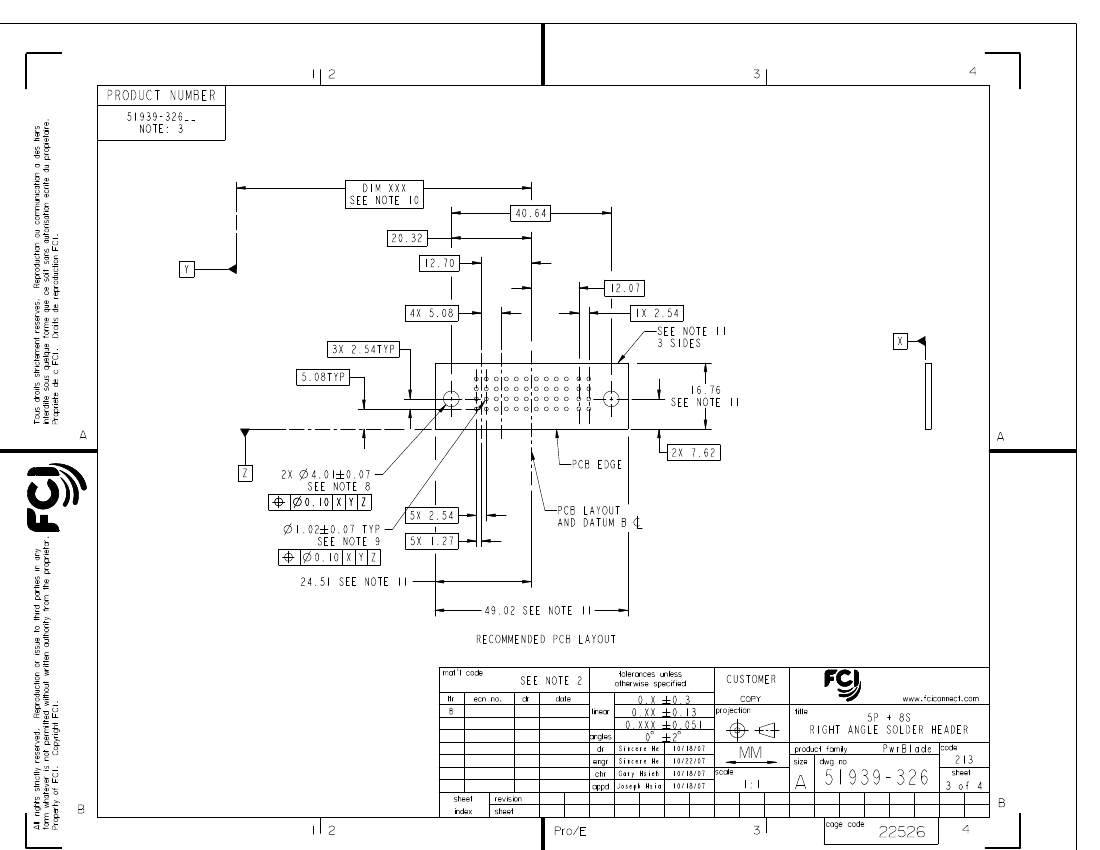

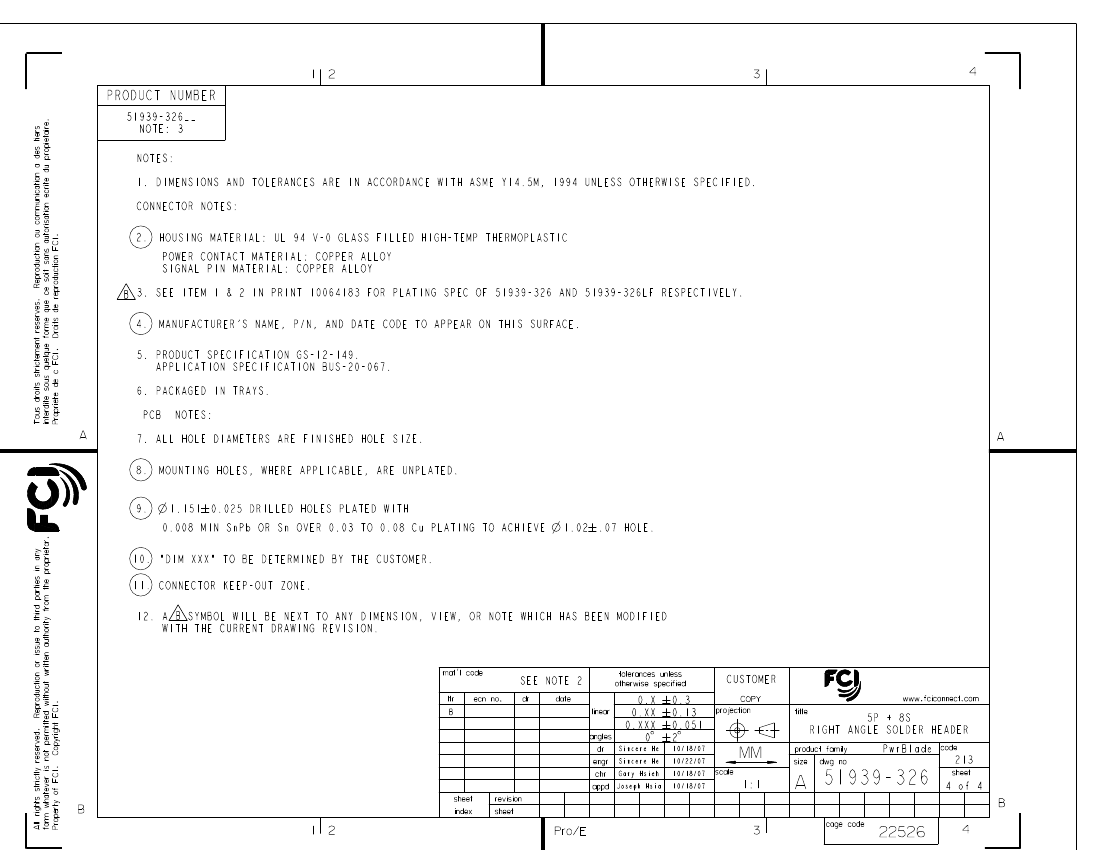

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Dec 20, 2010
