MUR815R datasheet, PDF - EEWORLD Datasheet

MUR815R: Description8A, 150V, SILICON, RECTIFIER DIODE, TO-220AC; CategoryDiscrete semiconductor diode; File Size62KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

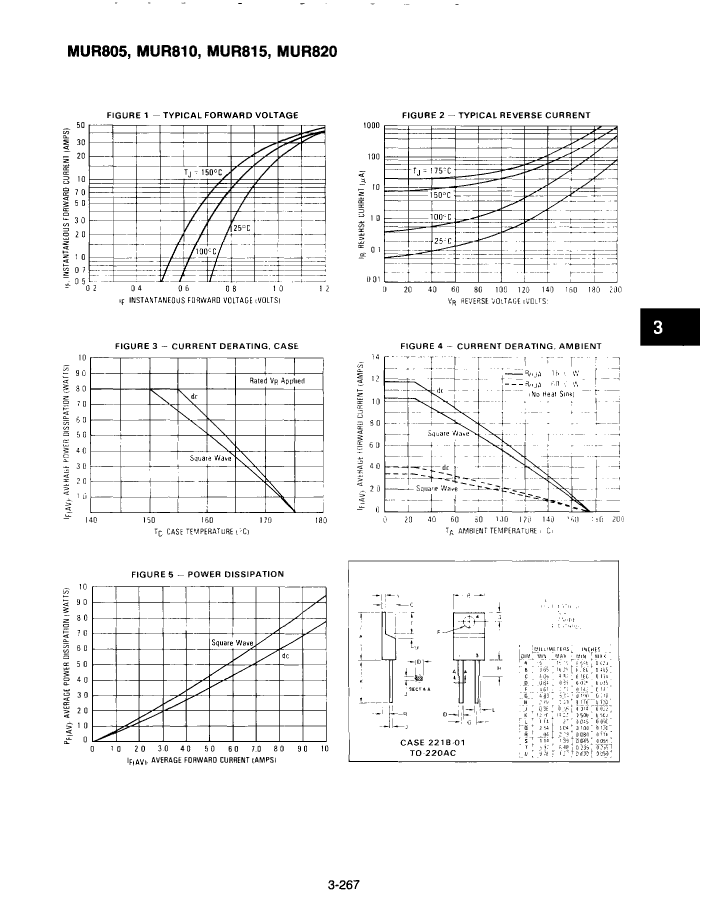

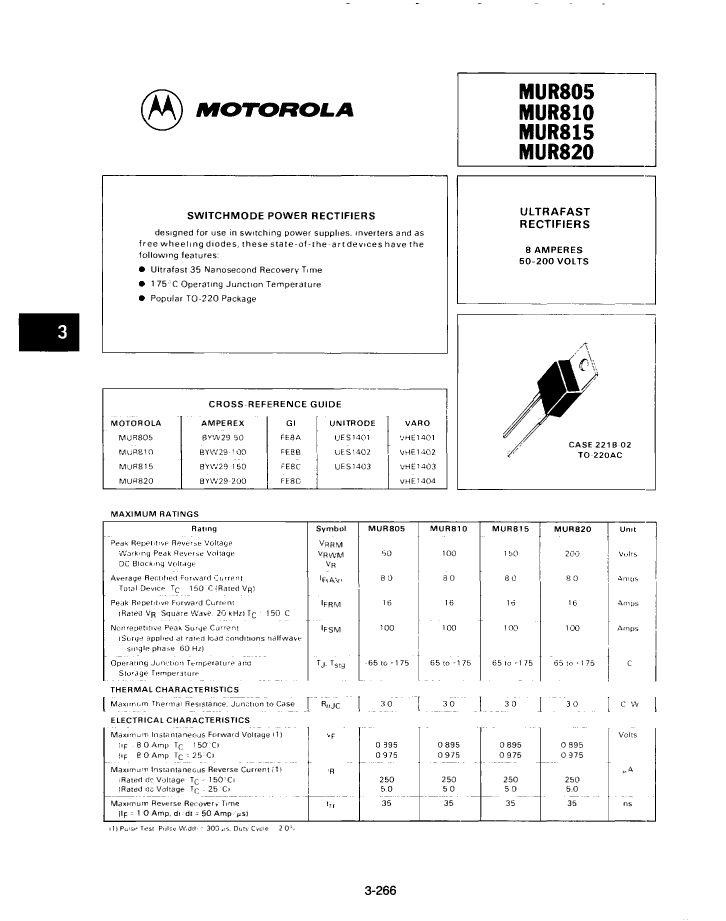

MUR815R Overview

8A, 150V, SILICON, RECTIFIER DIODE, TO-220AC

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	R-PSFM-T2
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
application	ULTRA FAST RECOVERY POWER
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.975 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

	MUR815R	MUR820R
Description	8A, 150V, SILICON, RECTIFIER DIODE, TO-220AC	Rectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon, TO-220AC,
Maker	Motorola ( NXP )	Motorola ( NXP )
package instruction	R-PSFM-T2	R-PSFM-T2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
application	ULTRA FAST RECOVERY POWER	ULTRA FAST RECOVERY POWER
Shell connection	ANODE	ANODE
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.975 V	0.975 V
JEDEC-95 code	TO-220AC	TO-220AC
JESD-30 code	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	100 A	100 A
Number of components	1	1
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C
Maximum output current	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	150 V	200 V
Maximum reverse current	5 µA	5 µA
Maximum reverse recovery time	0.035 µs	0.035 µs
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
