MPX10GSX datasheet, PDF - EEWORLD Datasheet

MPX10GSX: DescriptionGAGE, PEIZORESISTIVE PRESSURE SENSOR, 0-1.45Psi, 1%, 20-80mV, ROUND, THROUGH HOLE MOUNT, CASE 344F-01, 4 PIN; CategoryThe sensor Sensor/transducer; File Size164KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

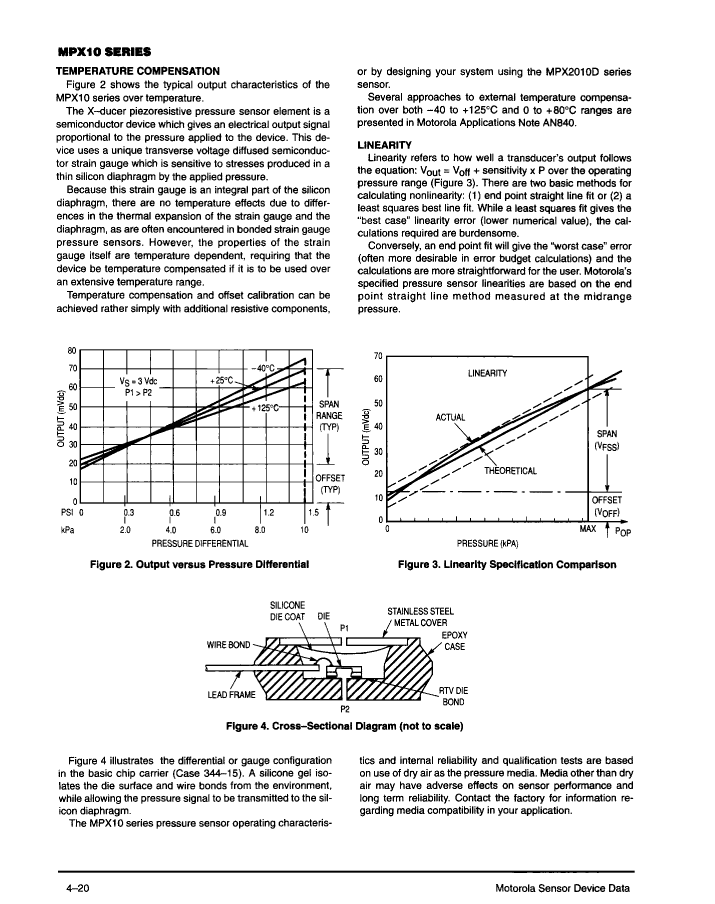

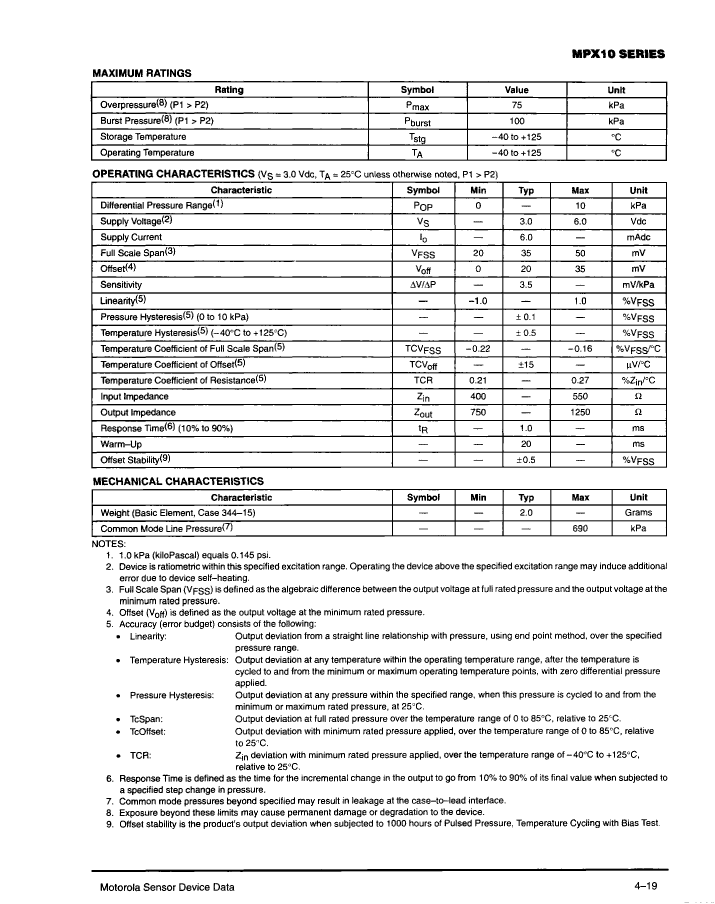

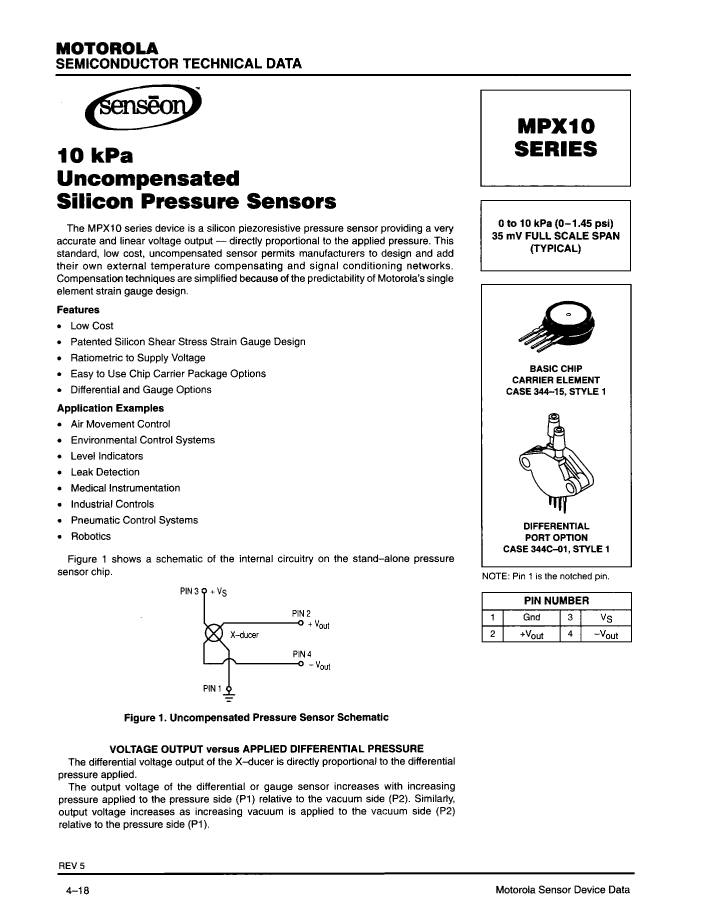

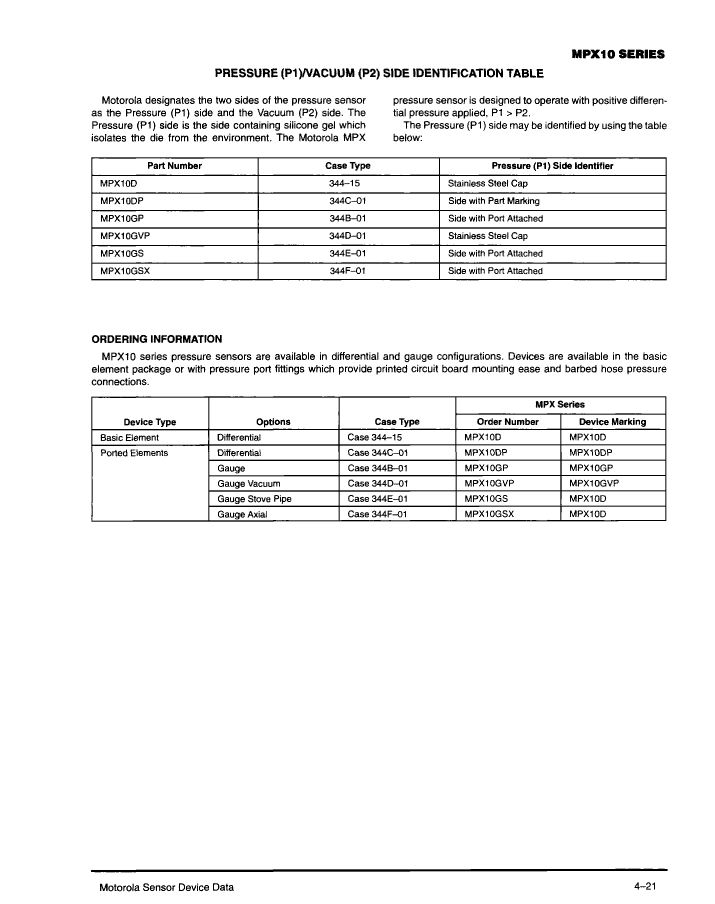

MPX10GSX Overview

GAGE, PEIZORESISTIVE PRESSURE SENSOR, 0-1.45Psi, 1%, 20-80mV, ROUND, THROUGH HOLE MOUNT, CASE 344F-01, 4 PIN

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Reach Compliance Code	unknown
Is Samacsys	N
Maximum accuracy(%)	1%
body width	16.25 mm
body height	19.05 mm
Body length or diameter	27.94 mm
Linearity(%)	1 %
Installation features	THROUGH HOLE MOUNT
Nominal offset	20MV
Maximum working current	6 mA
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output range	20-80mV
Output type	ANALOG VOLTAGE
Package Shape/Form	ROUND
port type	BARBED
Maximum pressure range	1.45 Psi
Minimum pressure range
Pressure sensing mode	GAGE
Response time	1000 µs
Sensitivity (mV/V)	3.5 mV/V
Sensor/Transducer Type	PRESSURE SENSOR,PEIZORESISTIVE
Maximum supply voltage	6 V
Minimum supply voltage	3 V
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

	MPX10GSX
Description	GAGE, PEIZORESISTIVE PRESSURE SENSOR, 0-1.45Psi, 1%, 20-80mV, ROUND, THROUGH HOLE MOUNT, CASE 344F-01, 4 PIN
Maker	Motorola ( NXP )
Reach Compliance Code	unknown
Is Samacsys	N
Maximum accuracy(%)	1%
body width	16.25 mm
body height	19.05 mm
Body length or diameter	27.94 mm
Linearity(%)	1 %
Installation features	THROUGH HOLE MOUNT
Nominal offset	20MV
Maximum working current	6 mA
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output range	20-80mV
Output type	ANALOG VOLTAGE
Package Shape/Form	ROUND
port type	BARBED
Maximum pressure range	1.45 Psi
Pressure sensing mode	GAGE
Response time	1000 µs
Sensitivity (mV/V)	3.5 mV/V
Sensor/Transducer Type	PRESSURE SENSOR,PEIZORESISTIVE
Maximum supply voltage	6 V
Minimum supply voltage	3 V
surface mount	NO
Termination type	SOLDER
Base Number Matches	1
