AC DC
36 70 Watts

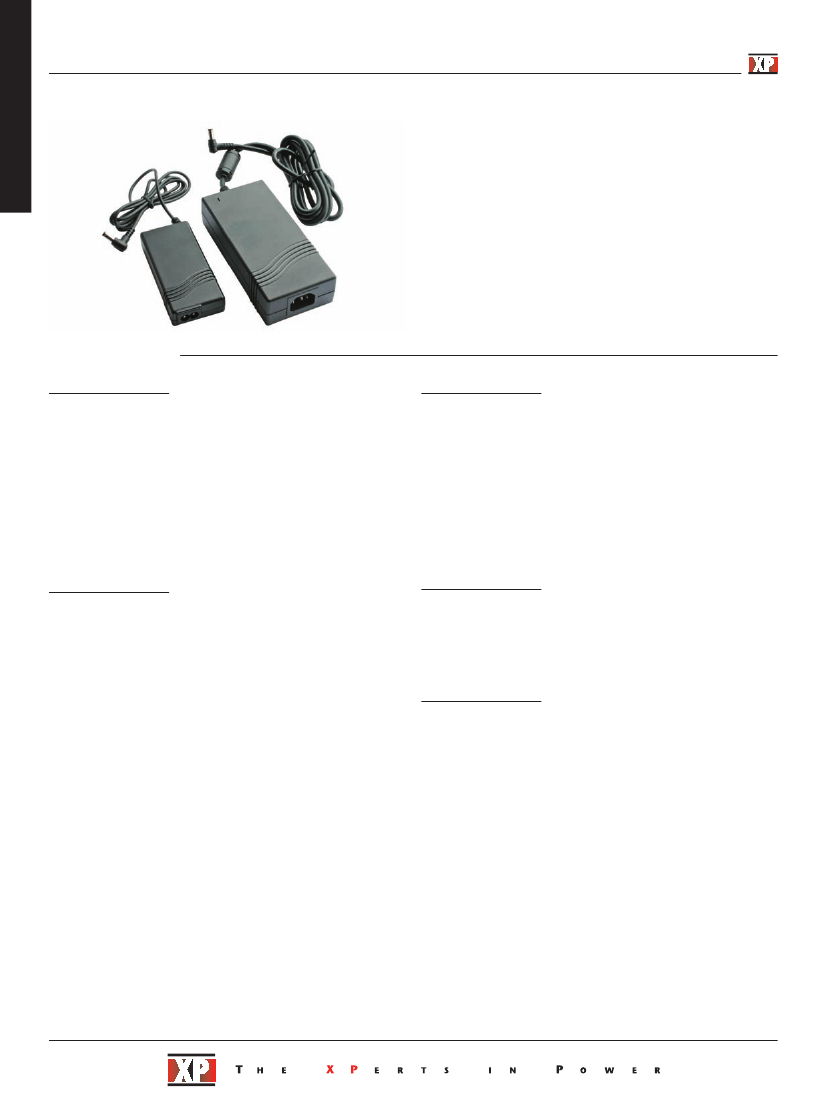

AED Series
•
•
•
•
•
•
•
Low Profile
xppower.com
Single Outputs from 5 V to 48 V
Universal Input
Optional Floating Output
High Power Density
Class II Insulation on 36 W Version
3 Year Warranty
Specification
Input
• 90-264 VAC
• 47-63 Hz
• AED36: 1.00 A max
AED45: 1.20 A max
AED70: 2.00 A max
Inrush Current
• AED36: 50 A max at 230 VAC
AED45: 100 A max at 230 VAC
AED70: 100 A max at 240 VAC
Earth Leakage Current
• AED36: Class II
AED45/70: 3.5 mA max
Power Factor
• Compliant with EN61000-3-2
Input Voltage
Input Frequency
Input Current
General
Efficiency
Isolation
• 85% typical at 230 VAC & 100% load
• 3000 VAC Input to Output,
1500 VAC Input to Ground.
Negative output is connected to ground.
For optional 500 VAC output to ground
isolation add suffix ‘-F’ to model number
• 60 kHz ±10 kHz
• AED36: 5.34 W/in
3
AED45: 3.20 W/in
3
AED70: 4.98 W/in
3
• 200 kHrs to MIL-HDBK-217F at 25 °C, GB
Switching Frequency
Power Density
MTBF
Output
Output Voltage
Initial Set Accuracy
Minimum Load
Hold Up Time
•
•
•
•
See tables
±2%
No minimum load requirement
AED36: 8 ms min at 115 VAC
AED45: 8 ms min at 115 VAC
AED70: 20 ms min at 115 VAC
±1%
See tables
1% pk-pk max, 20 MHz BW (see note 2)
Typical 125% max
120-150% hiccup/trip & restart mode
with auto recovery
Continuous
±0.05%/˚C
Environmental
Operating Temperature
• 0 ˚C to +60 ˚C derate linearly from 100%
load at +40 ˚C to 50% load at +60 ˚C
• 93% RH, non-condensing
Operating Humidity
Operating Altitude
• 2000 m
Storage Temperature
• -20 ˚C to +85 ˚C
Line Regulation
Load Regulation
Ripple & Noise
Overvoltage Protection
Overload Protection
•
•
•
•
•
EMC & Safety
Emissions
Harmonic Currents
Voltage Flicker
ESD Immunity
Radiated Immunity
EFT/Burst
Safety Approvals
•
•
•
•
EN55022 Class B conducted & radiated
EN61000-3-2, Class A
EN61000-3-3
EN61000-4-2, 8 kV air, 4 kV contact
Perf Criteria A
• EN61000-4-3, 3 V/m Perf Criteria A
• EN61000-4-4, level 2 Perf Criteria A
• EN60950-1, UL60950-1
Short Circuit Protection
•
Temperature
•
Coefficient
Models and Ratings
Output Power
Maximum
20 W
27 W
30 W
32 W
36 W
36 W
36 W
36 W
Notes
1. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% full load).
2. Measured at the output connector with a 0.1 µF ceramic capacitor and a 10 µF electrolytic capacitor.
AED36
Output Current
Maximum
4.00 A
3.00 A
2.50 A
2.40 A
2.40 A
2.00 A
1.50 A
0.75 A
Load
Regulation
(1)
±6%
±5%
±5%
±5%
±3%
±2%
±2%
±2%
Model
Number
AED36US05
AED36US09
AED36US12
AED36US13
AED36US15
AED36US18
AED36US24
AED36US48
AC DC
Output Voltage
Nominal
5.0 V
9.0 V
12.0 V
13.5 V
15.0 V
18.0 V
24.0 V
48.0 V
Mechanical Details
0.47
(12.00)
Weight:
0.42 lbs (190 g) approx.
Power Cord Order Part:
UK -
UK-MAINS-8
European -
EU-MAINS-8
US -
US-MAINS-8
IEC320-C8
0.79
(20)
1.97 (50)
4.33
(110)
Notes
All dimensions shown in inches (mm)
Output connector is 5.5mm dia. outer barrel, inner dia. is 2.5mm with a center + and outer shell - polarity.
Optional output connectors available.
Output cable is 48” (1220mm) approx.
AC DC
Models and Ratings
Output Power
Maximum
30 W
45 W
45 W
45 W
45 W
45 W
48 W
Notes
1. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% full load).
2. Measured at the output connector with a 0.1 µF ceramic capacitor and a 10 µF electrolytic capacitor.
AED45
Output Current
Maximum
6.00 A
3.75 A
3.00 A
2.50 A
2.37 A
1.88 A
1.00 A
Load
Regulation
(1)
±6%
±5%
±3%
±2%
±2%
±2%
±2%
Model
Number
AED45US05
AED45US12
AED45US15
AED45US18
AED45US19
AED45US24
AED45US48
Output Voltage
Nominal
5.0 V
12.0 V
15.0 V
18.5 V
19.0 V
24.0 V
48.0 V
Mechanical Details
Weight:
0.73 lbs (330 g) approx.
Power Cord Order Part:
UK -
UK-MAINS-IEC
European -
EU-MAINS-IEC
US -
US-MAINS-IEC
2.29
(58)
5.20
(132)
IEC320-C14
1.18
(30)
Notes
All dimensions shown in inches (mm)
Output connector is 5.5mm dia. outer barrel, inner dia. is 2.5mm with a center + and outer shell - polarity.
Optional output connectors available.
Output cable is 48” (1220mm) approx.
3
0.47
(12.00)
Models and Ratings
Output Power
Maximum
70 W
70 W
70 W
70 W
70 W
70 W
Notes
1. Load regulation is measured from 60% to full load and from 60% to 20% load (60% ±40% full load).
2. Measured at the output connector with a 0.1 µF ceramic capacitor and a 10 µF electrolytic capacitor.
AED70
Output Current
Maximum
5.50 A
4.60 A
3.90 A
3.70 A
3.00 A
1.50 A
Load
Regulation
(1)
±5%
±3%
±2%
±2%
±2%
±2%
Model
Number
AED70US12
AED70US15
AED70US18
AED70US19
AED70US24
AED70US48
12.0 V
15.0 V
18.0 V
19.0 V
24.0 V
48.0 V
AC DC
Output Voltage
Nominal
Mechanical Details
Weight:
0.76 lbs (345 g) approx.
Power Cord Order Part:
UK -
UK-MAINS-IEC
European -
EU-MAINS-IEC
US -
US-MAINS-IEC
2.28
(58.0)
0.47
(12.0)
5.20 (132.0)
IEC320-C14
1.18
(30.0)
Notes
All dimensions shown in inches (mm).
Output connector is 5.5mm dia. outer barrel, inner dia. is 2.5mm with a center +
and outer shell - polarity.
2. Optional output connectors available.
3. Output cable is 48” (1220mm) approx.
07-Feb-12
