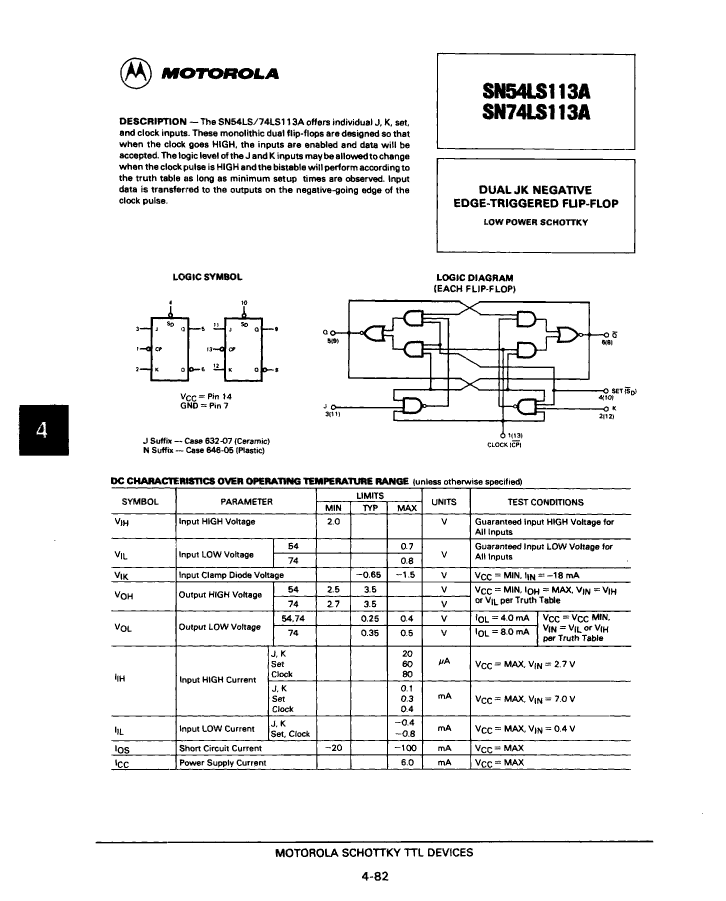

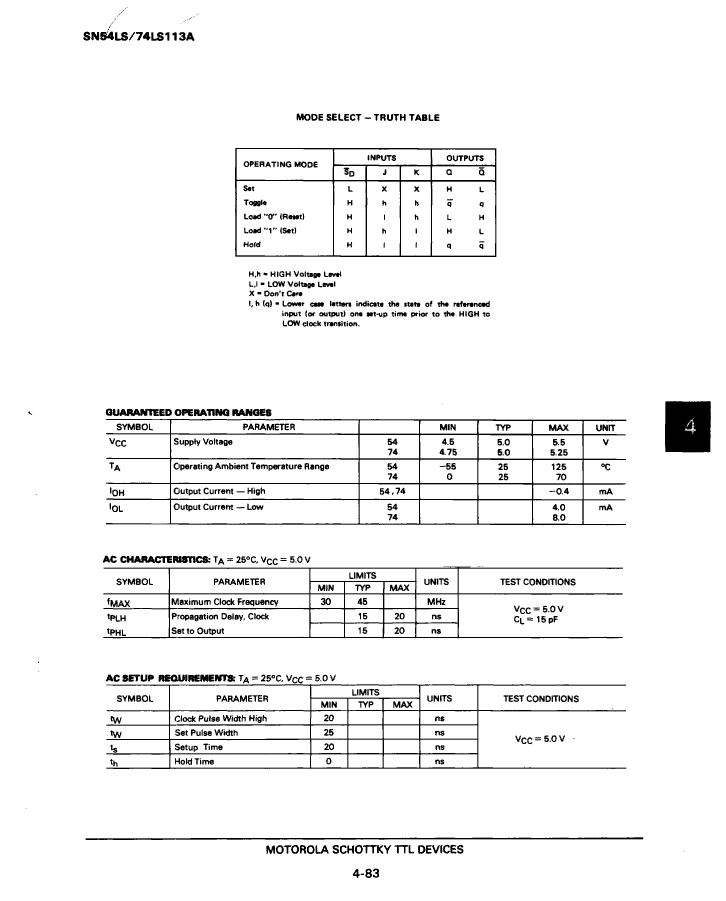

SN74LS113ANS |
SN74LS113AJS |
| Description |
LS SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDIP14 |
LS SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP14, CERAMIC, DIP-14 |
| Is it Rohs certified? |
incompatible |
incompatible |
| Maker |
Motorola ( NXP ) |
Motorola ( NXP ) |
| package instruction |
DIP, DIP14,.3 |
DIP, DIP14,.3 |
| Reach Compliance Code |
unknown |
unknown |
| series |
LS |
LS |
| JESD-30 code |
R-PDIP-T14 |
R-GDIP-T14 |
| JESD-609 code |
e0 |
e0 |
| length |
18.86 mm |
19.495 mm |
| Logic integrated circuit type |
J-K FLIP-FLOP |
J-K FLIP-FLOP |
| Number of digits |
2 |
2 |
| Number of functions |
2 |
2 |
| Number of terminals |
14 |
14 |
| Maximum operating temperature |
70 °C |
70 °C |
| Output polarity |
COMPLEMENTARY |
COMPLEMENTARY |
| Package body material |
PLASTIC/EPOXY |
CERAMIC, GLASS-SEALED |
| encapsulated code |
DIP |
DIP |
| Encapsulate equivalent code |
DIP14,.3 |
DIP14,.3 |
| Package shape |
RECTANGULAR |
RECTANGULAR |
| Package form |
IN-LINE |
IN-LINE |
| Peak Reflow Temperature (Celsius) |
NOT SPECIFIED |
NOT SPECIFIED |
| power supply |
5 V |
5 V |
| propagation delay (tpd) |
20 ns |
20 ns |
| Certification status |
Not Qualified |
Not Qualified |
| Maximum seat height |
5.08 mm |
5.08 mm |
| Maximum supply voltage (Vsup) |
5.25 V |
5.25 V |
| Minimum supply voltage (Vsup) |
4.75 V |
4.75 V |
| Nominal supply voltage (Vsup) |
5 V |
5 V |
| surface mount |
NO |
NO |
| technology |
TTL |
TTL |
| Temperature level |
COMMERCIAL |
COMMERCIAL |
| Terminal surface |
Tin/Lead (Sn/Pb) |
Tin/Lead (Sn/Pb) |
| Terminal form |
THROUGH-HOLE |
THROUGH-HOLE |
| Terminal pitch |
2.54 mm |
2.54 mm |
| Terminal location |
DUAL |
DUAL |
| Maximum time at peak reflow temperature |
NOT SPECIFIED |
NOT SPECIFIED |
| Trigger type |
NEGATIVE EDGE |
NEGATIVE EDGE |
| width |
7.62 mm |
7.62 mm |
| minfmax |
45 MHz |
45 MHz |
| Base Number Matches |
1 |
1 |
