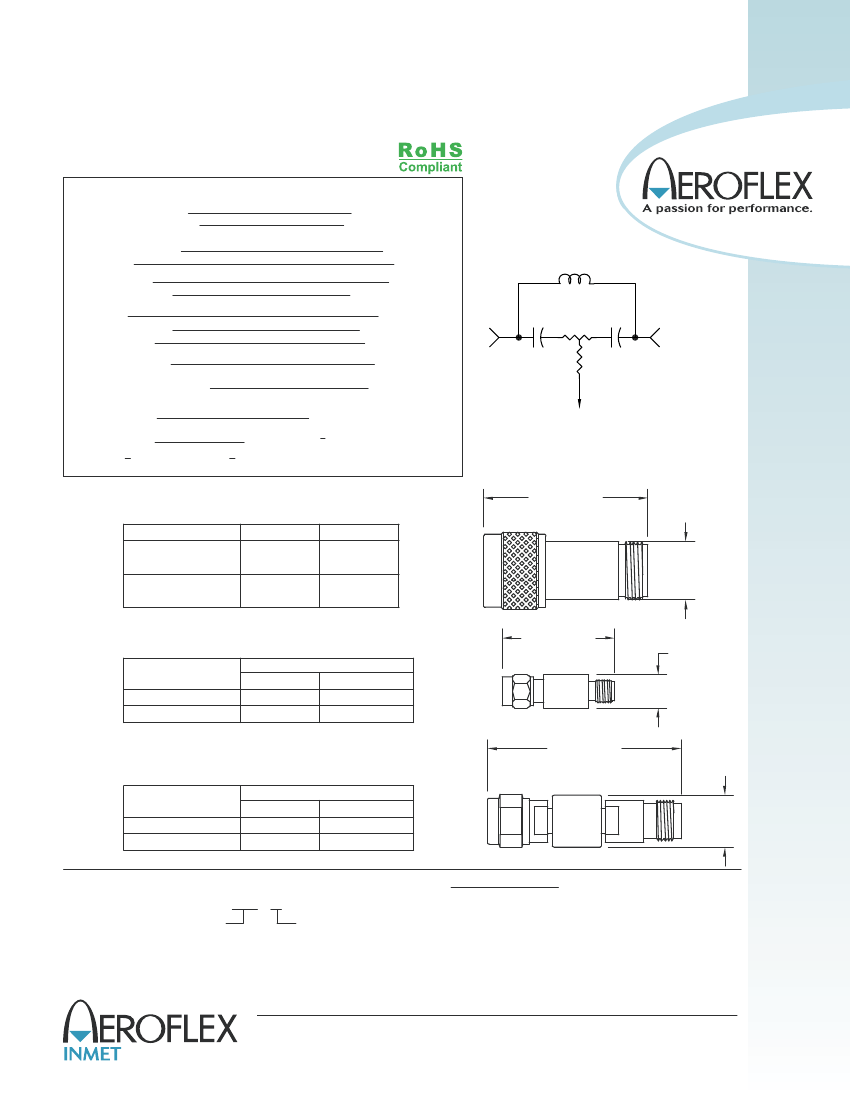

DC BIAS PASSING ATTENUATOR
50 MHz - 3 GHz, 100 Volts
SPECIFICATIONS:
Frequency Range
Standard dB Values*
Attenuation Accuracy
3, 4, 6, & 10 dB
20 dB
Impedance
DC Resistance ***
VSWR
Voltage Rating
DC Current
(CC IN TO CC OUT)
Models: 9095-N-XX, 9095-SMA-XX, 9095-TNC-XX
Electrical:
(@ 25°C Ambient)
50 MHz - 3 GHz
3, 4, 6, 10 & 20 dB
±2.0 dB **
±2.5 dB
50 Ohms
0.25 Ohms Max.
1.35:1 Max.
100 Volts Max.
2 Amps. Max.
2 Wat ts Max.
RF Power (Avg )
Operating Temp. Range
(Max DC Bias Power-10 Watts)
Derated Linearlyto 0.7Watts @ +85°C
-55°C to +85°C
Mechanical:
Connectors
Conductors
Mates with MIL
-STD-348
Passivated Stainless Steel
Gold Plated Beryllium Copper or Brass
SCHEMATIC DIAGRAM
Length
See Table
**dB Values < 15 dB are Typically Within +1.0 dB
***CENTER CONDUCTOR TO CASE DC ISOLATED > 5 MEGAOHMS
Model Number:
9095-N-XX
Type N Connectors
dB Value
3, 4, 6 & 10
20
Length
1.76 ±.05
[44.7 ±1.3]
2.28 ±.05
[57 ±1.3]
.9
Diameter
Ø.62
[15.8]
Ø.56
[1
4.2]
Diameter
See Table
Model Number:
9095-SMA-XX
SMA Connectors
Length
dB Value
3, 4, 6 & 10
20
Inches
1.2 ±.05
1
1.57 ±.05
Millimeters
[30.7 ±1.3]
[39.9 ±1.3]
Length
See Table
Ø
.36 [91]
.
Model Number:
9095-TNC-XX
TNC Connectors
Length
dB Value
3, 4, 6 & 10
20
Inches
2.07 ±.05
2.45 ±.05
Millimeters
[52.6 ±1.3]
[62.2 ±1.3]
Ordering Examples:
Length
See Table
Ø.56
[14.2]
HOW TO ORDER:
Model Number:
9095-YYY-XX
Connector Type
dB Value
N = Type N
Model Number:
9095-TNC-20
SMA = SMA
20 dB; TNC; Male/Fem
TNC = TNC
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
*Other dB values available for special order.
9095: REV G
Model Number:
9095-N-10
10 dB; Type N; Male/Fem
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex.com/inmet • inmetsales@aeroflex.com
