LJT00RE-17-35PB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> LJT00RE-17-35PB

Preview

LJT00RE-17-35PB: DescriptionMIL Series Connector, 55 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size429KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

LJT00RE-17-35PB Overview

MIL Series Connector, 55 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle

LJT00RE-17-35PB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
Other features	STANDARD:MIL-DTL-38999
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	LJT
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	ALUMINUM ALLOY
Housing size	17
Termination type	CRIMP
Total number of contacts	55
Base Number Matches	1

Preview

Download Datasheet

View All

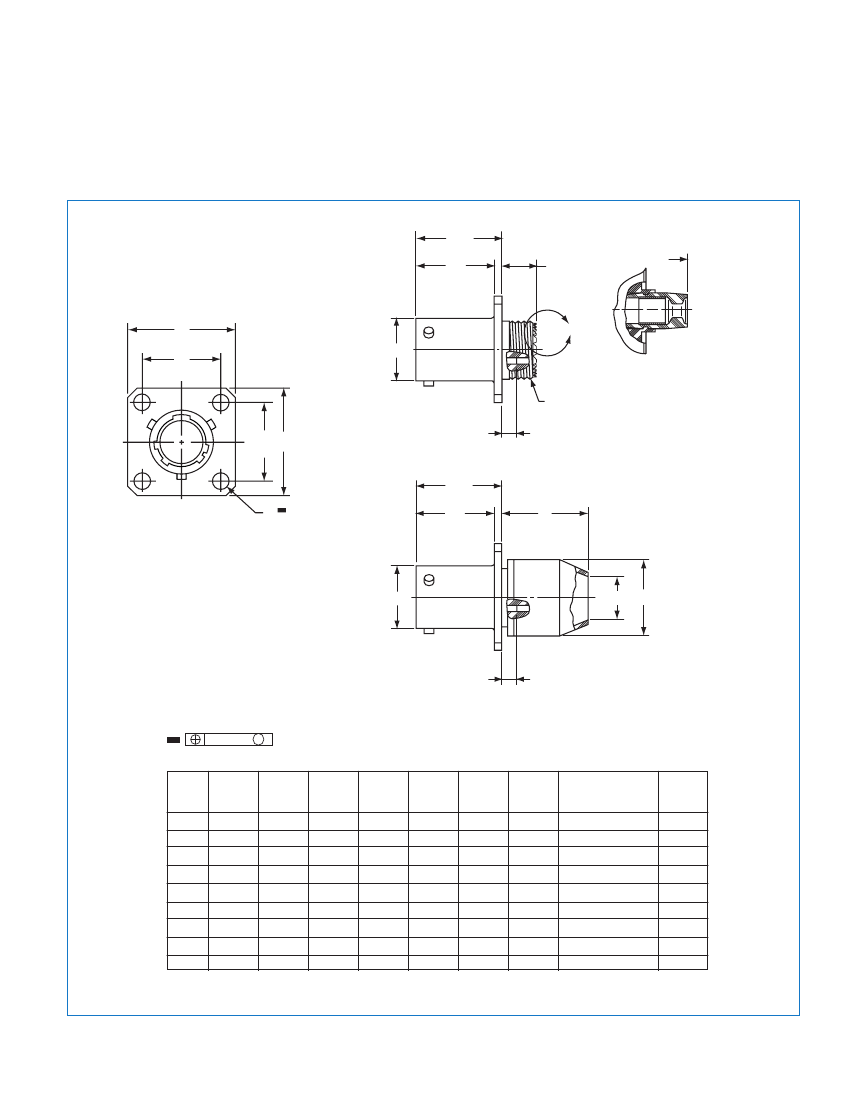

LJT00R (MS27466) — crimp

wall mounting receptacle

.717

M

+.006

–.000

.496

MAX

1.656 MAX

S

R

(TP)

N

D

VIEW D ENLARGED

FOR COAXIAL USE ONLY

V

.200

±.031

R

S

(TP)

*LJT00RE-XX-XXX (MS27466E)

*LJT00RT-XX-XXX (MS27466T)

.717

T

(4 HOLES)

M

+.006

–.000

L

N

F

KK

.200

±.031

*LJT00RP-XX-XXX (MS27466P)

.005 DIA M

* To complete order number see page 49.

Shell

Size

9

11

13

15

17

19

21

23

25

F

Dia.

.327

.444

.558

.683

.808

.909

1.034

1.159

1.284

L

Max.

.813

.906

M

+.000

–.005

.632

.602

N

+.001

–.005

.572

.700

.850

.975

1.100

1.207

1.332

1.457

1.582

R

(TP)

.719

.812

.906

.969

1.062

1.156

1.250

1.375

1.500

S

±.016

.938

1.031

1.125

1.219

1.312

1.438

1.562

1.688

1.812

T

Dia.

±.005

.128

.147

V Thread

Class 2A

(Plated)

.4375-28 UNEF

.5625-24 UNEF

.6875-24 UNEF

.8125-20 UNEF

.9375-20 UNEF

1.0625-18 UNEF

1.1875-18 UNEF

1.3125-18 UNEF

1.4375-18 UNEF

KK

Dia.

Max.

.608

.734

.858

.984

1.110

1.234

1.360

1.484

1.610

All dimensions for reference only.
