54776-602-48LF datasheet, PDF - EEWORLD Datasheet

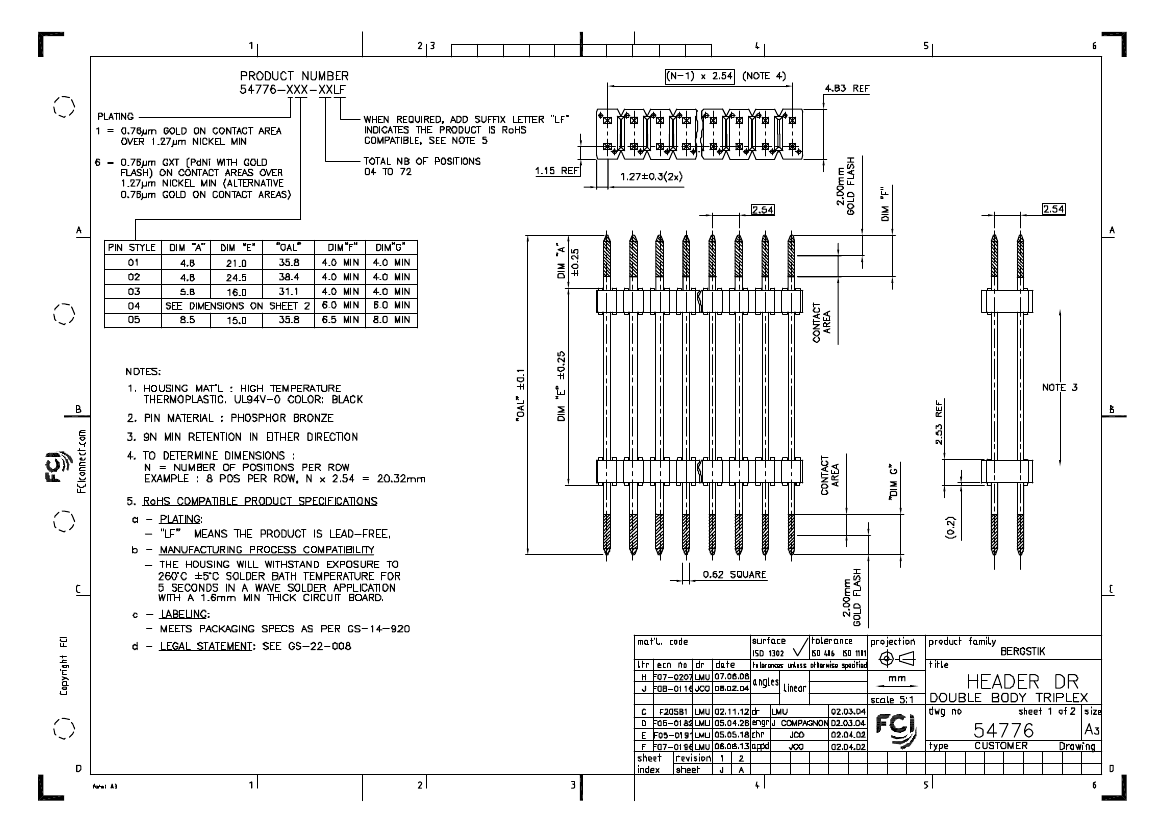

54776-602-48LF: DescriptionBoard Stacking Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size83KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

54776-602-48LF Overview

Board Stacking Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1668213028
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.5
body width	0.19 inch
subject depth	0.965 inch
body length	4.8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NICKEL PALLADIUM GOLD (30) OVER NICKEL
Contact completed and terminated	Nickel/Palladium/Gold (Ni/Pd/Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.358 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0

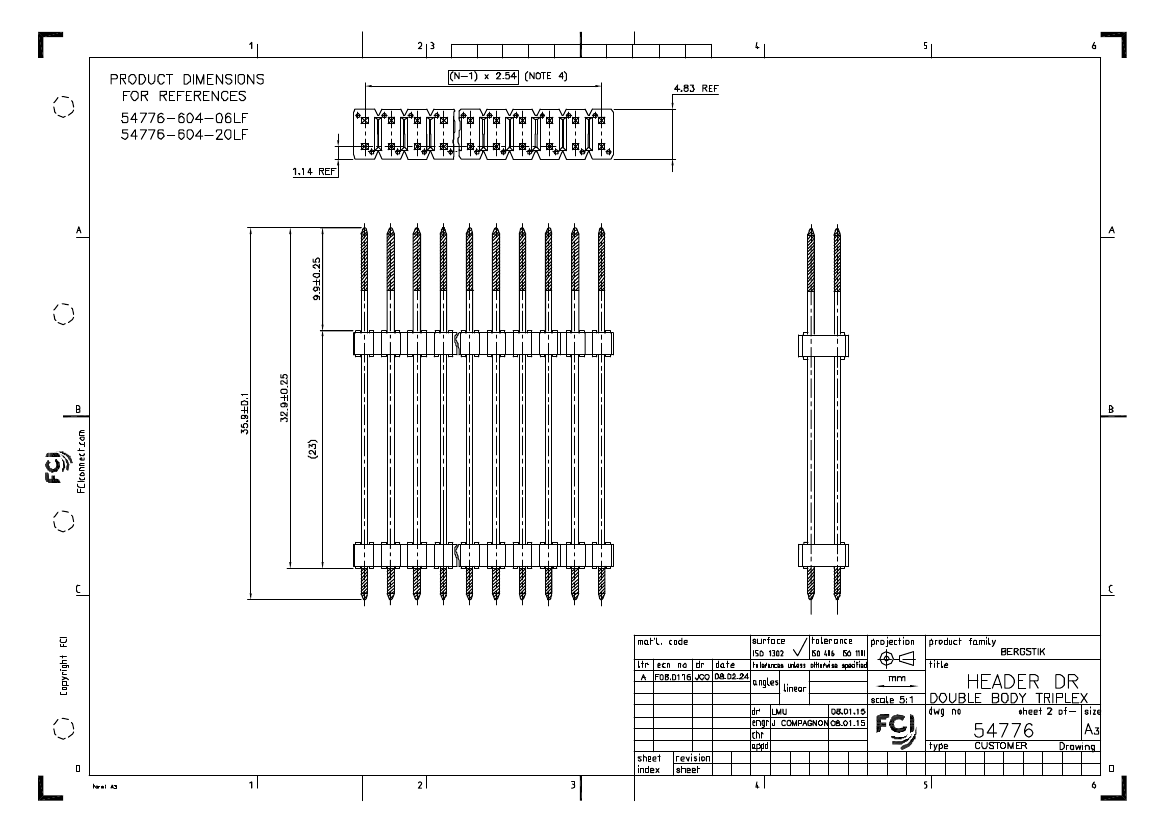

PDM: Rev:J

STATUS:

Released

Printed: Jun 03, 2008
