SN74LS673JS: DescriptionLS SERIES, 16-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP24, CERAMIC, DIP-24; Categorylogic logic; File Size102KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SN74LS673JS Overview

LS SERIES, 16-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP24, CERAMIC, DIP-24

SN74LS673JS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	CERAMIC, DIP-24
Reach Compliance Code	unknown
Other features	HOLD MODE; READ/WRITE CONTROL; COMMON I/O PIN
Counting direction	RIGHT
series	LS
JESD-30 code	R-CDIP-T24
JESD-609 code	e0
length	32.005 mm
Logic integrated circuit type	SERIAL IN PARALLEL OUT
Number of digits	16
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	40 ns
Certification status	Not Qualified
Maximum seat height	5.59 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	NEGATIVE EDGE
width	15.24 mm
minfmax	28 MHz
Base Number Matches	1

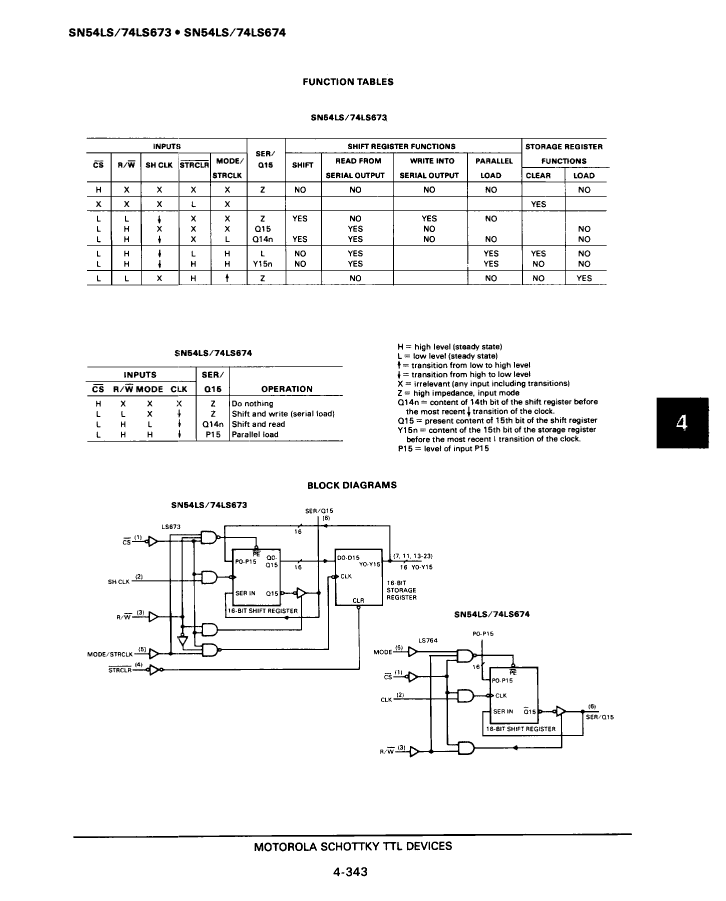

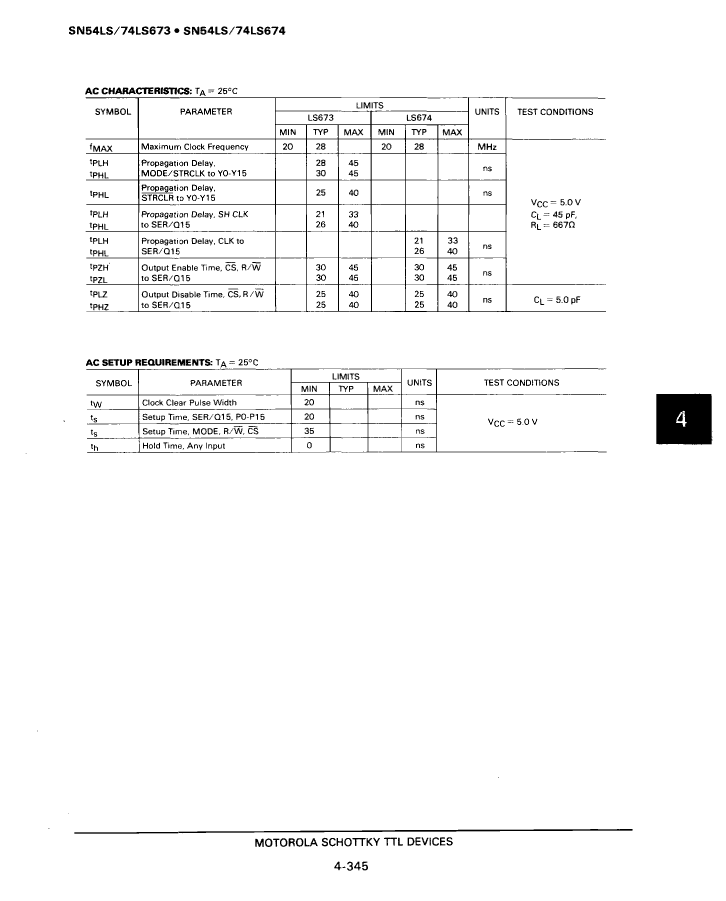

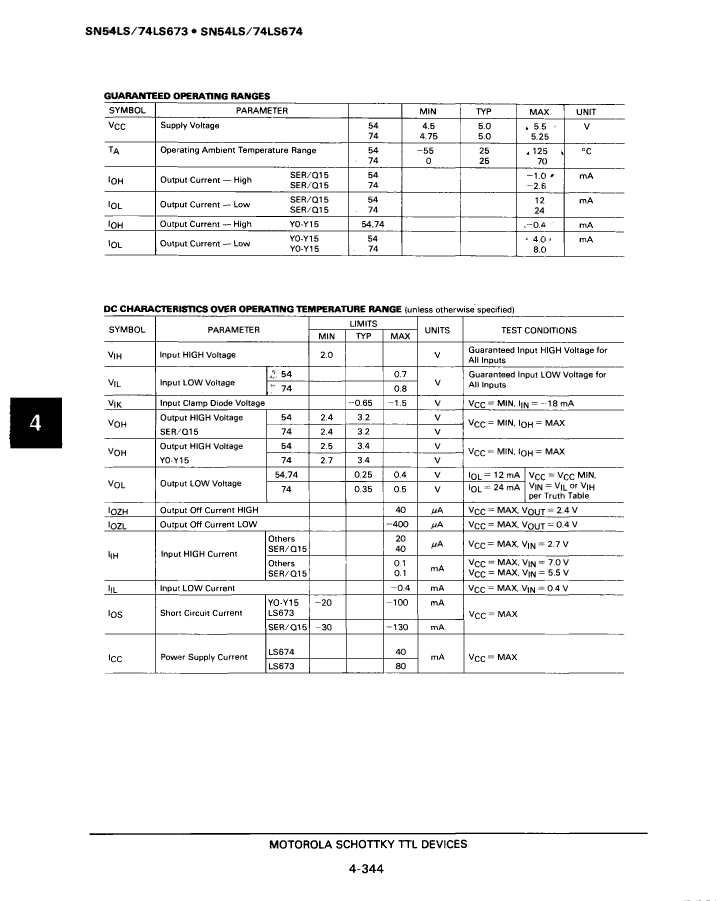

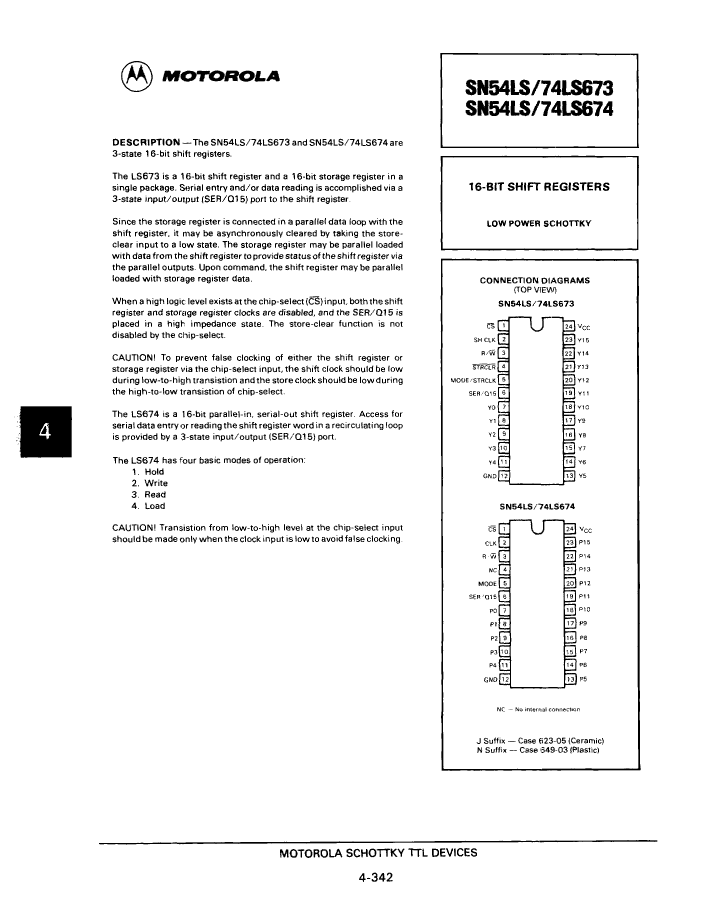

Preview

Download Datasheet

View All

SN74LS673JS Related Products

	SN74LS673JS	SN74LS674JS	SN74LS673NS	SN74LS674NS
Description	LS SERIES, 16-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP24, CERAMIC, DIP-24	LS SERIES, 16-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP24, CERAMIC, DIP-24	LS SERIES, 16-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDIP24, 649-03	LS SERIES, 16-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, PDIP24, 649-03
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	CERAMIC, DIP-24	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	HOLD MODE; READ/WRITE CONTROL; COMMON I/O PIN	HOLD MODE; READ/WRITE CONTROL; COMMON I/O PIN	HOLD MODE; READ/WRITE CONTROL; COMMON I/O PIN	HOLD MODE; READ/WRITE CONTROL; COMMON I/O PIN
Counting direction	RIGHT	RIGHT	RIGHT	RIGHT
series	LS	LS	LS	LS
JESD-30 code	R-CDIP-T24	R-CDIP-T24	R-PDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0
length	32.005 mm	32.005 mm	31.815 mm	31.815 mm
Logic integrated circuit type	SERIAL IN PARALLEL OUT	PARALLEL IN SERIAL OUT	SERIAL IN PARALLEL OUT	PARALLEL IN SERIAL OUT
Number of digits	16	16	16	16
Number of functions	1	1	1	1
Number of terminals	24	24	24	24
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
propagation delay (tpd)	40 ns	40 ns	40 ns	40 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.59 mm	5.59 mm	5.21 mm	5.21 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm
minfmax	28 MHz	28 MHz	28 MHz	28 MHz
Maker	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	-	DIP	DIP	DIP
Contacts	-	24	24	24
