BJ770-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BJ770-S

BJ770-S: DescriptionCONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size118KB，1 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric Compare View All

BJ770-S Overview

CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE

BJ770-S Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connector type	RF TRIAXIAL-BNC CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	BJ770
Installation method	STRAIGHT
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

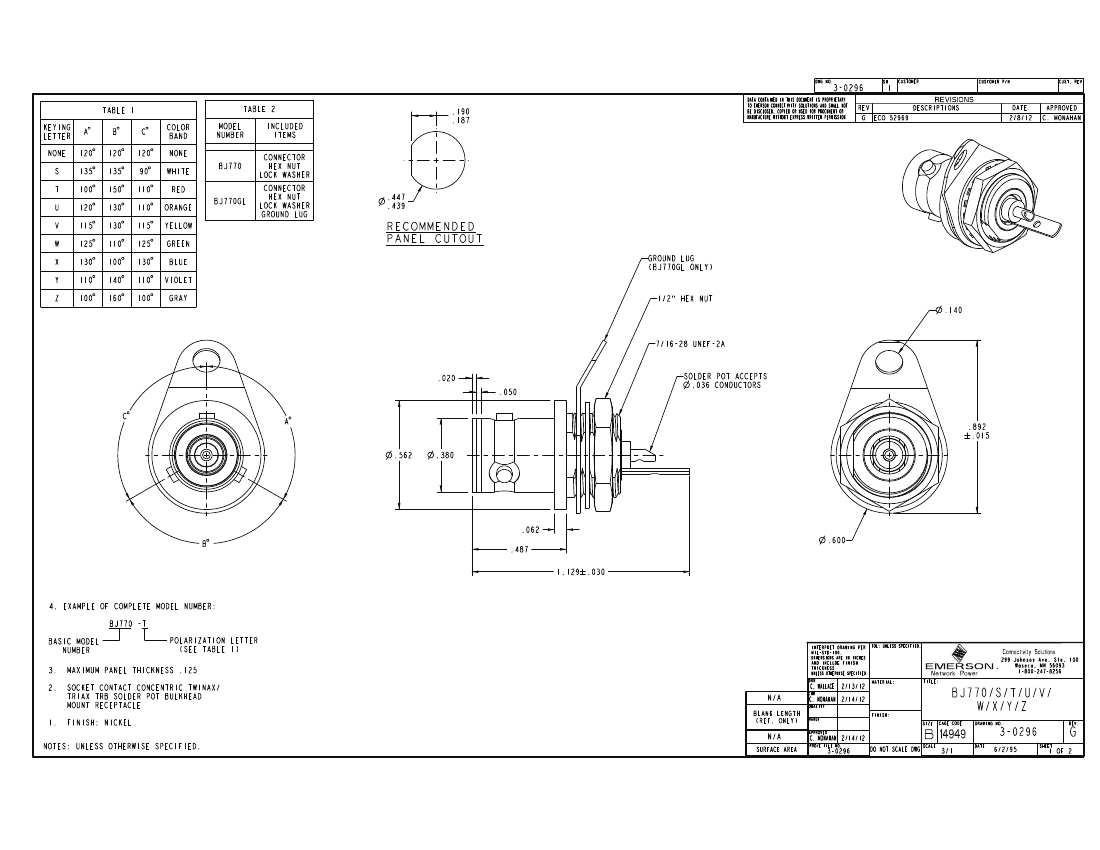

DWG NO.

CUSTOMER

CUSTOMER P/N

CUST. REV

3-0296

TABLE 1

KEYING

LETTER

NONE

120

135

100

120

115

125

130

110

100

120

135

150

130

110

100

140

160

120

110

115

125

130

110

100

COLOR

BAND

NONE

WHITE

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

1/2" HEX NUT

BJ770GL

BJ770

TABLE 2

MODEL

NUMBER

INCLUDED

ITEMS

CONNECTOR

HEX NUT

LOCK WASHER

CONNECTOR

HEX NUT

LOCK WASHER

GROUND LUG

.447

.439

.190

.187

REVISIONS

DESCRIPTIONS

DATE

2/8/12

APPROVED

C. MONAHAN

DATA CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO EMERSON CONNECTIVITY SOLUTIONS AND SHALL NOT

REV

BE DISCLOSED, COPIED OR USED FOR PROCUMENT OR

MANUFACTURE WITHOUT EXPRESS WRITTEN PERMISSION

52969

G ECO

RECOMMENDED

PANEL CUTOUT

GROUND LUG

(BJ770GL ONLY)

.140

7/16-28 UNEF-2A

.020

.050

SOLDER POT ACCEPTS

.036 CONDUCTORS

.892

.015

.562

.380

.062

.600

.487

1.129 .030

4. EXAMPLE OF COMPLETE MODEL NUMBER:

BJ770 -T

BASIC MODEL

NUMBER

POLARIZATION LETTER

(SEE TABLE 1)

TOL: UNLESS SPECIFIED.

INTERPRET DRAWING PER

MIL-STD-100.

DIMENSIONS ARE IN INCHES

AND INCLUDE FINISH

THICKNESS

UNLESS OTHERWISE SPECIFIED.

DRN

Connectivity Solutions

MAXIMUM PANEL THICKNESS .125

SOCKET CONTACT CONCENTRIC TWINAX/

TRIAX TRB SOLDER POT BULKHEAD

MOUNT RECEPTACLE

FINISH: NICKEL

EMERSON

Network Power

299 Johnson Ave. Ste. 100

Waseca, MN 56093

1-800-247-8256

C. WALLACE

2/13/12

MATERIAL:

TITLE:

N/A

BLANK LENGTH

(REF. ONLY)

CHK

C. MONAHAN

2/14/12

QUALITY

BJ770/S/T/U/V/

W/X/Y/Z

FINISH:

SIZE

CAGE CODE

DRAWING NO.

REV.

MANUF

N/A

NOTES: UNLESS OTHERWISE SPECIFIED.

SURFACE AREA

APPROVED

C. MONAHAN

2/14/12

PRO/E FILE NO.

B 14949

DO NOT SCALE DWG

SCALE

DATE

3-0296

6/2/95

SHEET

1 OF 2

3-0296

3/1

BJ770-S Related Products

	BJ770-S	BJ770-V	BJ770-Z	BJ770-Y	BJ770-X	BJ770-T	BJ770	BJ770-U	BJ770-W
Description	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	STANDARD:MIL-C-49142	POLARIZED	POLARIZED
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR
Contact to complete cooperation	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NOT SPECIFIED	NICKEL	NICKEL
Contact completed and terminated	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	Nickel (Ni)	NICKEL	NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES	YES	YES	YES	YES	YES
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	Artysen Embedded Technologies	-	-	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies
Manufacturer's serial number	BJ770	BJ770	BJ770	BJ770	BJ770	BJ770	-	BJ770	BJ770
