69037-106 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 69037-106

69037-106: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size77KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

69037-106 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

69037-106 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	69037
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

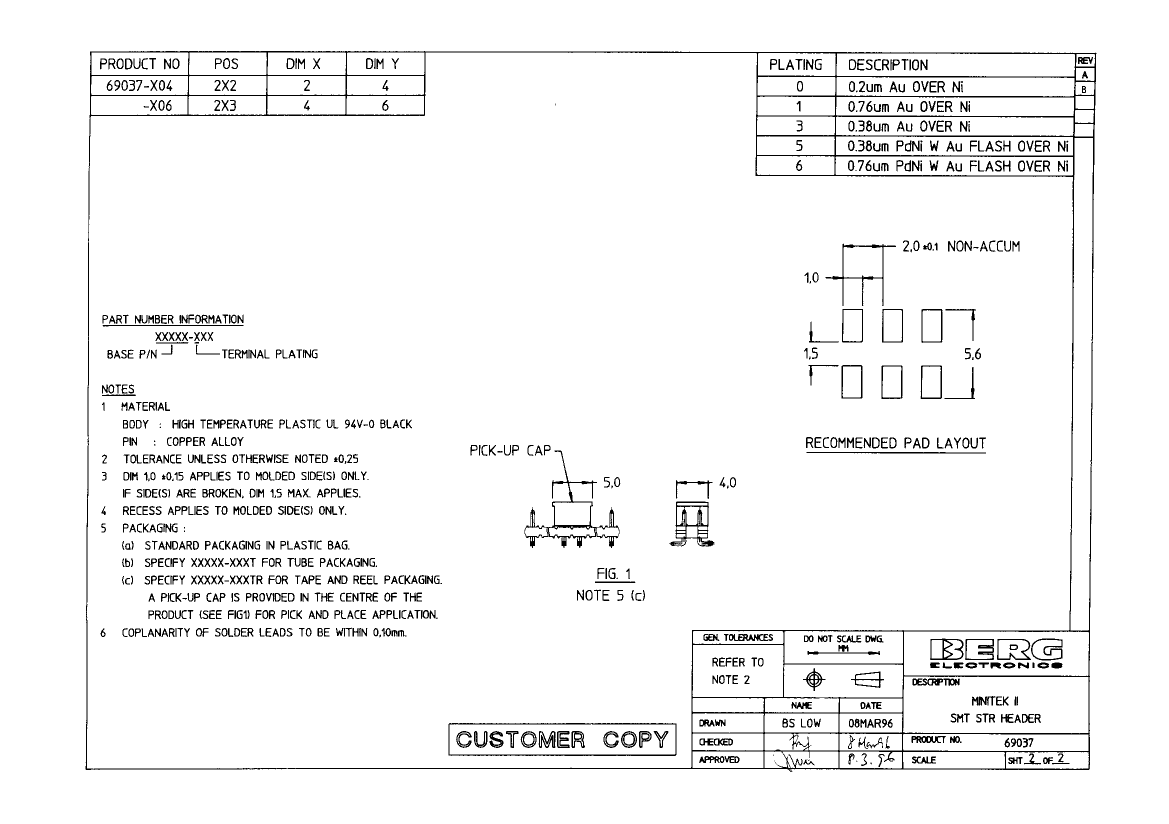

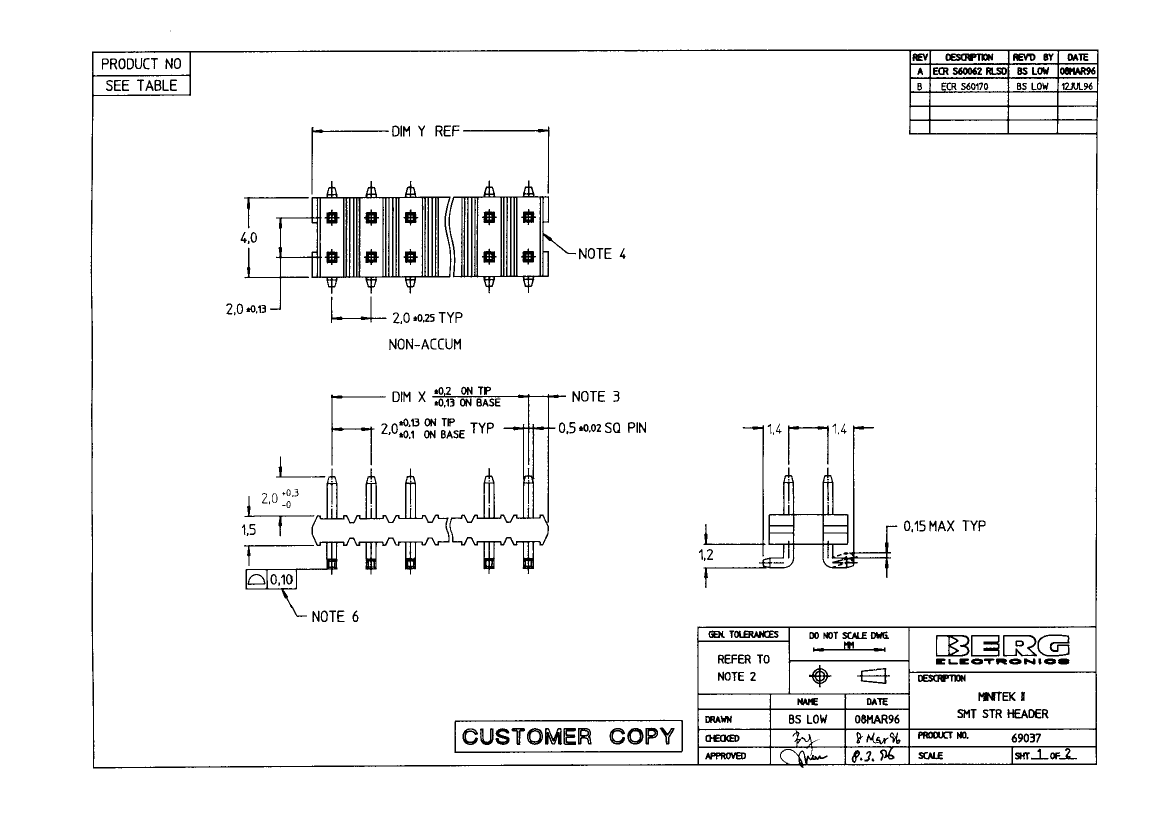

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Nov 27, 2010

69037-106 Related Products

	69037-106	69037-006	69037-104	69037-304	69037-306	69037-504	69037-004	69037-506	69037-604	69037-606
Description	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	69037	69037	69037	69037	69037	69037	69037	69037	69037	69037
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	6	6	4	4	6	4	4	6	4	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Is Samacsys	N	N	N	N	N	N	-	-	-	-
Base Number Matches	1	1	1	1	1	1	-	-	-	-
