6110181

Description
Board Connector, 18 Contact(s), 1 Row(s), Female, Crimp Terminal
CategoryThe connector    The connector
File Size582KB，1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

6110181 Overview

Board Connector, 18 Contact(s), 1 Row(s), Female, Crimp Terminal

6110181 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
Is SamacsysN
Other featuresCOMPATIBLE CONTACTS: 6150R3, 6150R2
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded1
OptionsGENERAL PURPOSE
Termination typeCRIMP
Total number of contacts18
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

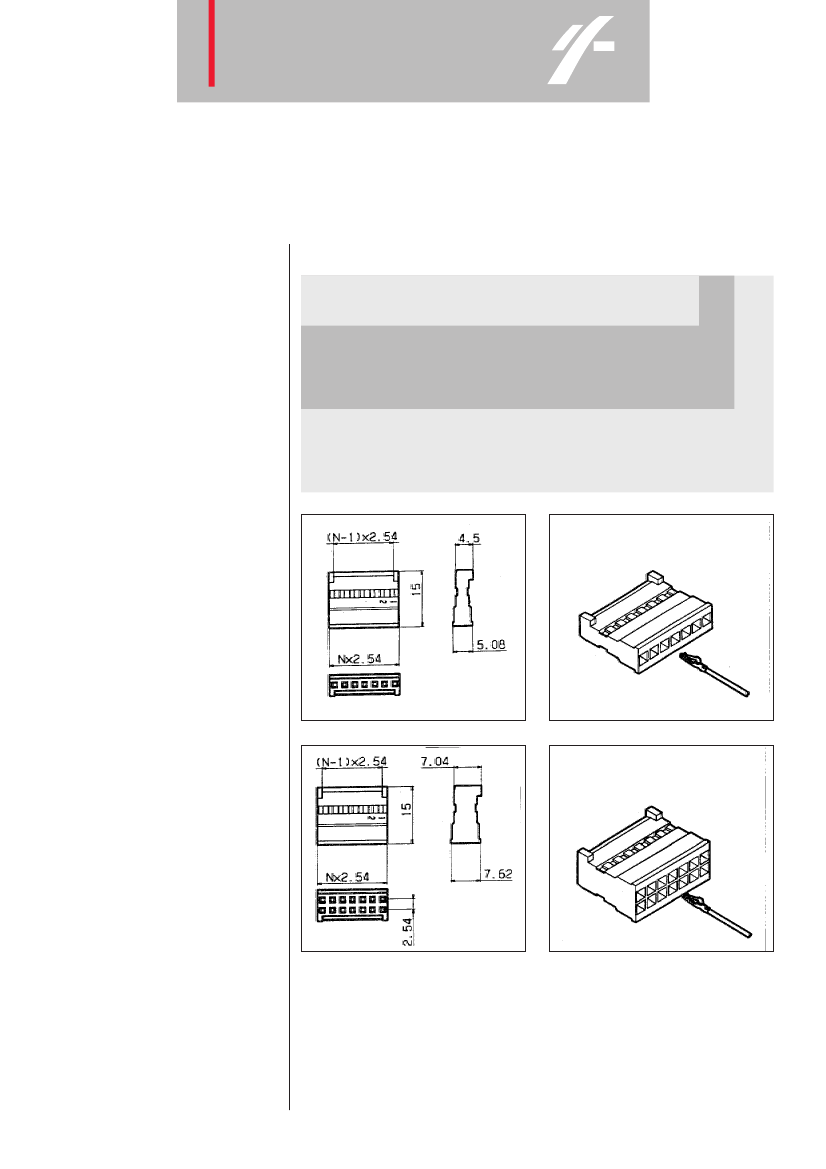

6110 SERIES
Board to wire interface - Crimp contact housing
2.54 mm (.100) pitch compatible with IEC 603-8 crimp contacts.
q
Female insulators series 6110
receive the crimp contacts series
6150. They are designed to mate
with headers of the series 6140.
Fitted with a locking and
polarization device ensuring fail
safe resistance and preventing any
contact mismate.
Available in single or double row
versions, with 2 to 25 ways per
row.
How to order
Series prefix
6110 06
1
q
Number of ways per row
02
to
25
q
Number of rows
1
or
2
Special features
q
Material : self extinguishing
thermoplastic (UL 94 VO).
First cavity is coded by a logo.
Insulators supplied without
contact.
q
q
SINGLE ROW
DOUBLE ROW
10
1

6110181 Related Products

6110181 6110021 6110041 6110061 6110062 6110081 6110102 6110121 6110141 6110161
Description Board Connector, 18 Contact(s), 1 Row(s), Female, Crimp Terminal Board Connector, 2 Contact(s), 1 Row(s), Female, Crimp Terminal Board Connector, 4 Contact(s), 1 Row(s), Female, Crimp Terminal Board Connector, 6 Contact(s), 1 Row(s), Female, Crimp Terminal Board Connector, 12 Contact(s), 2 Row(s), Female, Crimp Terminal Board Connector, 8 Contact(s), 1 Row(s), Female, Crimp Terminal Board Connector, 20 Contact(s), 2 Row(s), Female, Crimp Terminal Board Connector, 12 Contact(s), 1 Row(s), Female, Crimp Terminal Board Connector, 14 Contact(s), 1 Row(s), Female, Crimp Terminal Board Connector, 16 Contact(s), 1 Row(s), Female, Crimp Terminal
Maker Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compliant
Is Samacsys N N N N N N N N N N
Other features COMPATIBLE CONTACTS: 6150R3, 6150R2 COMPATIBLE CONTACTS: 6150R3, 6150R2 COMPATIBLE CONTACTS: 6150R3, 6150R2 COMPATIBLE CONTACTS: 6150R3, 6150R2 COMPATIBLE CONTACTS: 6150R3, 6150R2 COMPATIBLE CONTACTS: 6150R3, 6150R2 COMPATIBLE CONTACTS: 6150R3, 6150R2 COMPATIBLE CONTACTS: 6150R3, 6150R2 COMPATIBLE CONTACTS: 6150R3, 6150R2 COMPATIBLE CONTACTS: 6150R3, 6150R2
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
DIN compliance NO NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO NO NO NO NO
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation type CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE
Number of rows loaded 1 1 1 1 2 1 2 1 1 1
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Termination type CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP
Total number of contacts 18 2 4 6 12 8 20 12 14 16
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Base Number Matches 1 1 1 1 1 1 1 1 1 1
