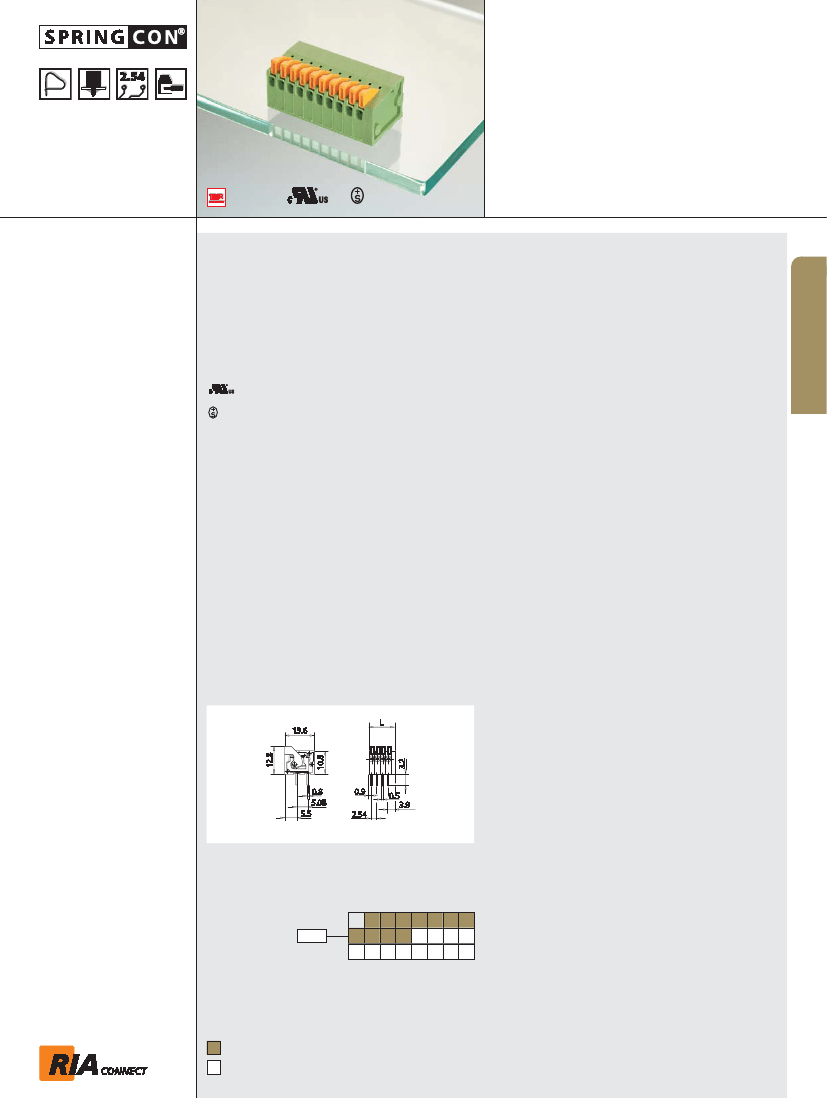

23
AST072
Spring clamp terminal block, solderable, centerline
2.54 mm / 0.100 inches, horizontal wire entry, double
solder pins
A
Technical Data
V / A / AWG
150 / 6 / 26 - 20
0.13 - 0.5 mm² 125 V / 2.5 kV / 6 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 2 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
160
400
400
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP20
Min. insul. strip length
10 mm
Solder pin dimension
2 x 0.8 x 0.5 mm
Recommended pc board hole
dia.
Ø 1.1 mm
Solder pin length
3.2 mm
Pole size
2 - 24
Color
green
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 4.74 mm / 0.187 inches
Part numbers (P/N)
AST072
centerline 2.54 mm / 0.100 inches
(information: page 16)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
P/N
AST072
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
