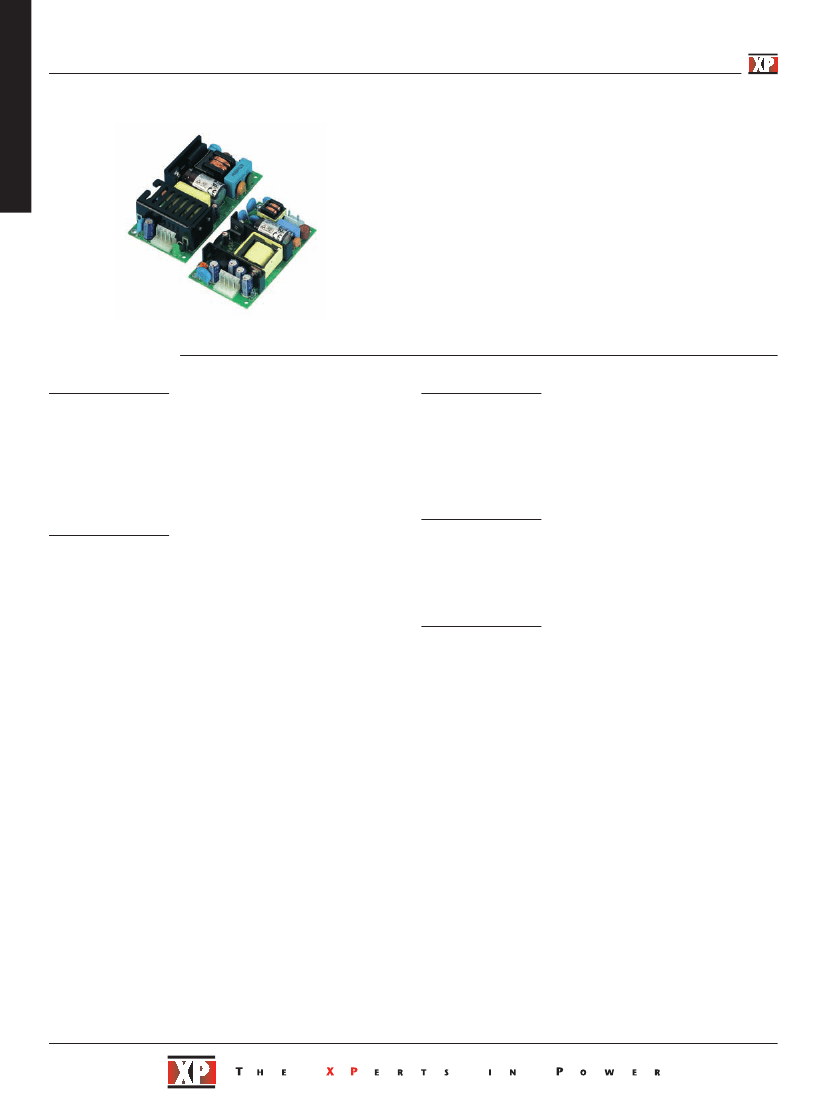

AC DC
40 60 Watts
ACS Series
•
•
•
•
•
•
•
Low Cost
Small Size
Universal Input
Rugged Design
High MTBF
International Safety Approvals
Covered Versions Available
xppower.com
Specification
Input
Input Voltage
Input Frequency
Input Current
Inrush Current
Earthing
• 90-264 VAC (110-370 VDC)
• 47-63 Hz
• ACS40: 0.45 A rms at 230 VAC
ACS60: 0.60 A rms at 230 VAC
• Cold start at 25 şC: 25 A at 115 VAC,
50 A at 230 VAC
• Class I
General
Efficiency
Isolation
• See tables
• 3000 VAC Input to Output
1500 VAC Input to Ground
500 VAC Output to Ground
• 50-70 kHz
• 230 kHrs per MIL-HDBK-217F
Switching Frequency
MTBF
Output
Output Voltage
Hold Up Time
Line Regulation
Load Regulation
Ripple & Noise
Overvoltage Protection
Overcurrrent Protection
•
•
•
•
•
•
•
See table
8 ms typical at full load
0.5%max at full load
1.0% max at 10% load to full load
1% max pk-pk, 20MHz BW
Typically 130% of max output
120% typical
Environmental
Operating Temperature
• 0 °C to +70 °C, derate from full load at
+50 °C to half load at +60 °C.
Reduce both temperatures by 10 °C when
cover is fitted
Storage Temperature
• -40 °C to +85 °C
EMC & Safety
Emissions
ESD Immunity
Radiated Immunity
EFT/Burst
Surge
Conducted Immunity
Safety Approvals
• FCC20780 Level B, CISPR22 (EN55022),
level B conducted
• EN61000-4-2, level 3 Perf Criteria A
• EN61000-4-3, 10 V/m Perf Criteria A
• EN61000-4-4, level 2 Perf Criteria A
• EN61000-4-5, level 3 Perf Criteria A
• EN61000-4-6, 10 V Perf Criteria y
• EN60950, UL1950, CSA22.2 No. 234
Models and Ratings
Output Power
Output
Voltage
3.3
5.0
9.0
12.0
15.0
24.0
36.0
48.0
3.3
5.0
9.0
12.0
15.0
24.0
36.0
48.0
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
Output Current
Nominal
6.000 A
6.000 A
4.450 A
3.340 A
2.670 A
1.670 A
1.110 A
0.834 A
8.000
8.000
6.670
5.000
4.000
2.500
1.670
1.250
A
A
A
A
A
A
A
A
Peak
7.200 A
7.200 A
5.340 A
4.000 A
3.200 A
2.000 A
1.330 A
1.000 A
(1)
ACS
Efficiency
74%
78%
82%
84%
85%
86%
87%
88%
74%
78%
82%
84%
85%
86%
87%
88%
Model
Number
ACS40US03
ACS40US05
ACS40US09
ACS40US12
ACS40US15
ACS40US24
ACS40US36
ACS40US48
ACS60US03
ACS60US05
ACS60US09
ACS60US12
ACS60US15
ACS60US24
ACS60US36
ACS60US48
AC DC
40 W
60 W
8.500
9.000
8.000
6.000
4.800
3.000
2.000
1.500
A
A
A
A
A
A
A
A
Notes
1. Peak load lasting <30 s with a maximum duty cycle of 10%.
Mechanical Details
1.20
(30.48)
4.00 (101.6)
0.15
(3.8)
0.15
(3.8)
3.70 (94.0)
N
L
(+) Vout
(-) Vout
1.70
(43.2)
2.00
(50.8)
0.125 (3.17)
(4 Places)
Notes
1. All dimensions shown in inches (mm).
2. Input connector mates with Molex housing 09-50-3031 and Molex 2878 series crimp terminal.
Output connector mates with Molex housing 90-50-3041 and Molex 2878 series crimp terminal.
3. Loom kits with 300 mm wire available. Order part number ACS40/60 LOOM KIT.
4. For mating connectors only, order part number ACS20-60 CONKIT.
5. Covers available. Order part number ACS40/60 COVER (114 x 64 x 38.5mm). To receive unit with cover fitted, add suffix ‘-C’ to model number.
08-Aug-12
