DAP15S564CTLF datasheet, PDF - EEWORLD Datasheet

DAP15S564CTLF: DescriptionD Subminiature Connector, 15 Contact(s), Female, Solder Terminal,; CategoryThe connector The connector; File Size213KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

DAP15S564CTLF Overview

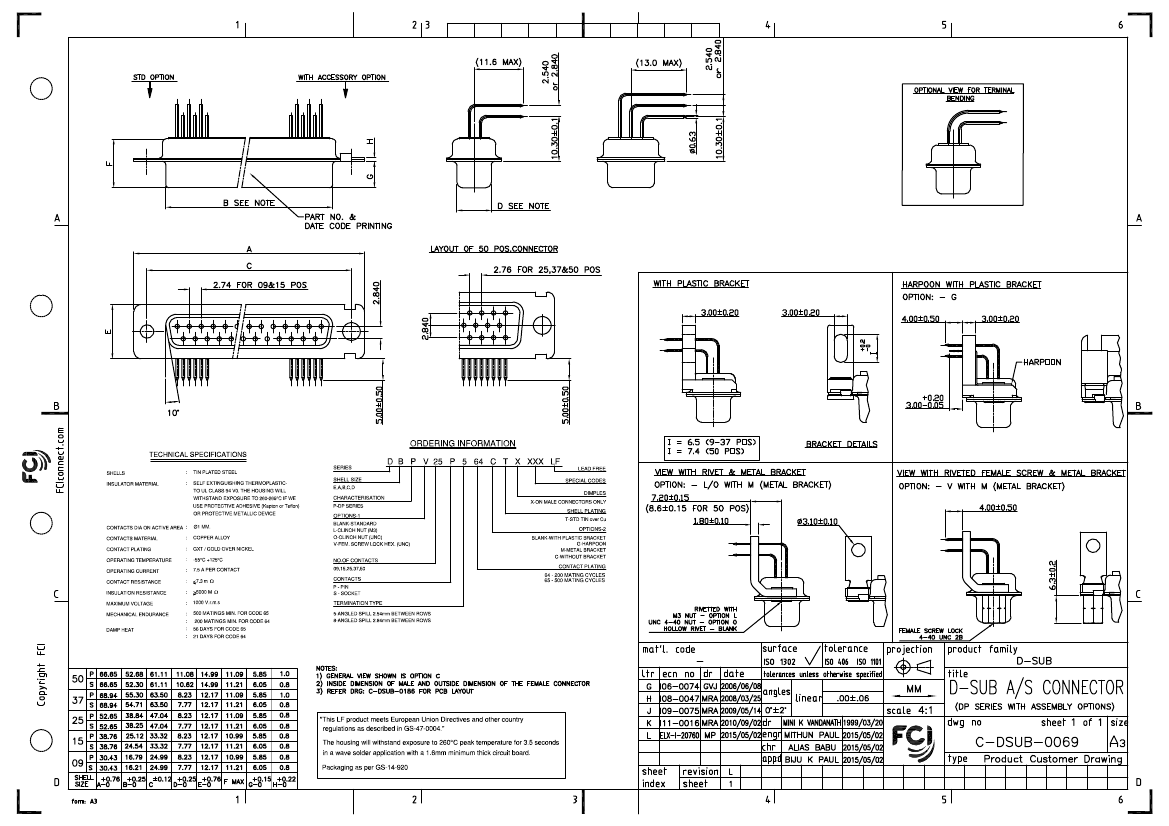

D Subminiature Connector, 15 Contact(s), Female, Solder Terminal,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
Is Samacsys	N
body width	0.479 inch
subject depth	0.518 inch
body length	1.526 inch
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYETHYLENE
MIL compliance	NO
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	79u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN/ZINC
Shell material	STEEL
Housing size	2/A
Terminal pitch	2.74 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

PDS: Rev :L

STATUS:Released

Printed: May 04, 2015
