Datasheet> All Categories > Discrete semiconductor> diode> BAQ33GS18

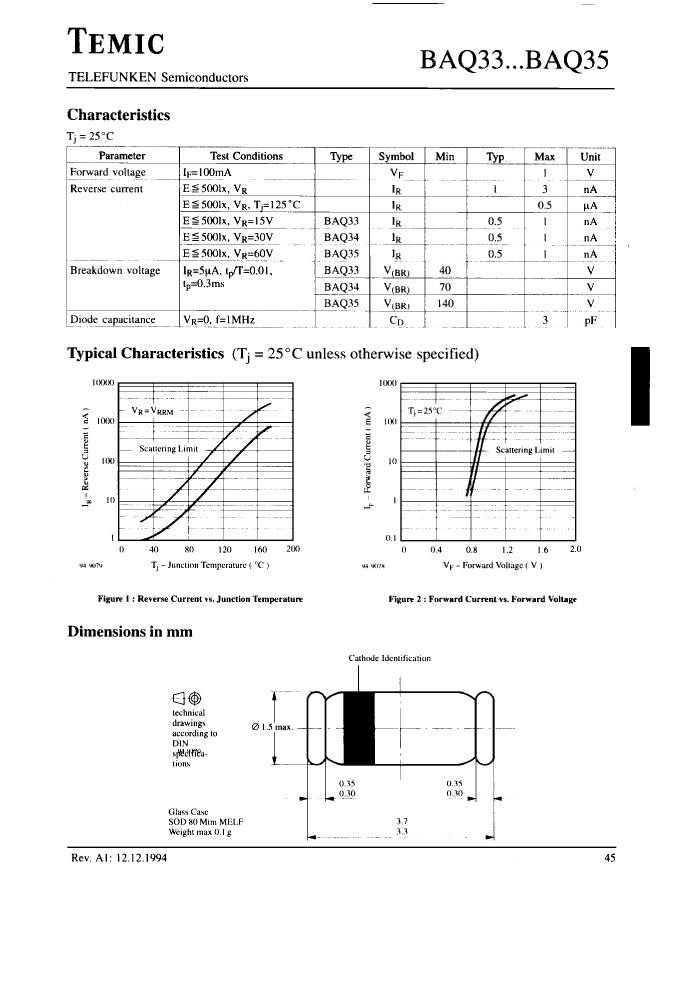

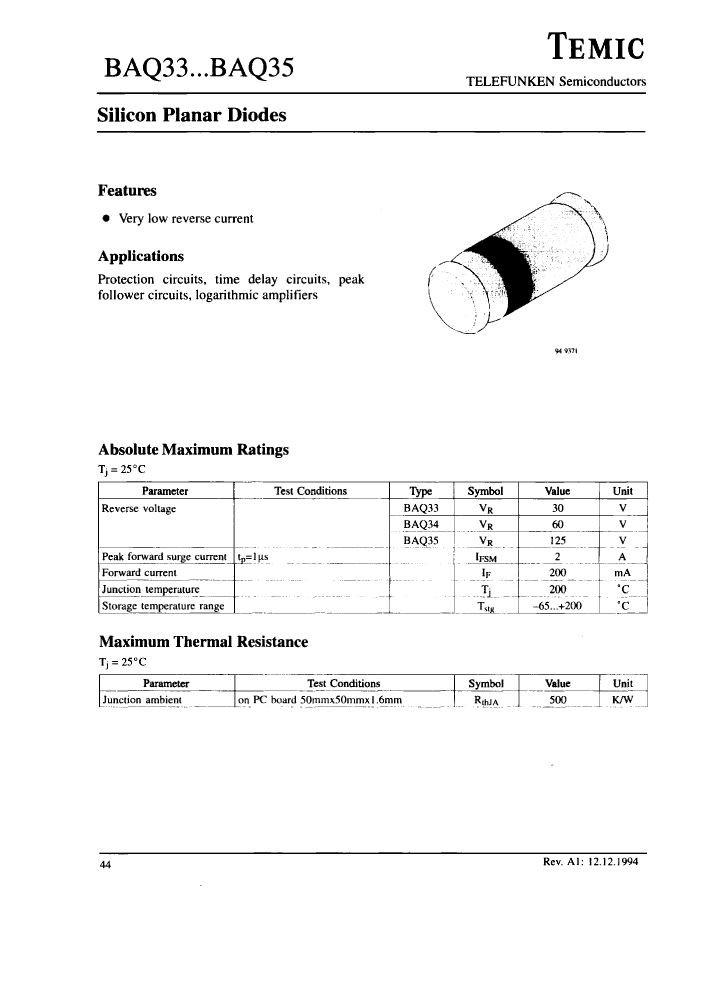

Preview

BAQ33GS18: DescriptionRectifier Diode, 1 Element, 0.2A, Silicon,; CategoryDiscrete semiconductor diode; File Size48KB，2 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

BAQ33GS18 Overview

Rectifier Diode, 1 Element, 0.2A, Silicon,

BAQ33GS18 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	O-LELF-R2
Maximum non-repetitive peak forward current	2 A
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Maximum output current	0.2 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum reverse current	0.003 µA
surface mount	YES
Terminal form	WRAP AROUND
Terminal location	END
Base Number Matches	1

Preview

Download Datasheet

View All

BAQ33GS18 Related Products

	BAQ33GS18	BAQ35GS18	BAQ35GS08	BAQ34GS18	BAQ34GS08	BAQ33GS08
Description	Rectifier Diode, 1 Element, 0.2A, Silicon,	Rectifier Diode, 1 Element, 0.2A, Silicon,	Rectifier Diode, 1 Element, 0.2A, Silicon,	Rectifier Diode, 1 Element, 0.2A, Silicon,	Rectifier Diode, 1 Element, 0.2A, Silicon,	Rectifier Diode, 1 Element, 0.2A, Silicon,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V
JESD-30 code	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Maximum non-repetitive peak forward current	2 A	2 A	2 A	2 A	2 A	2 A
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	0.003 µA	0.003 µA	0.003 µA	0.003 µA	0.003 µA	0.003 µA
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END	END	END
Base Number Matches	1	1	1	1	1	-
