SI786CG: DescriptionDual Switching Controller, Current-mode, 330kHz Switching Freq-Max, BCDMOS, PDSO28,; CategoryPower/power management The power supply circuit; File Size412KB，14 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

SI786CG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SI786CG	-	-	View	Buy Now

SI786CG Overview

Dual Switching Controller, Current-mode, 330kHz Switching Freq-Max, BCDMOS, PDSO28,

SI786CG Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	3.3V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DUAL SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	30 V
Minimum input voltage	5.5 V
Nominal input voltage	15 V
JESD-30 code	R-PDSO-G28
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply current (Isup)	1.6 mA
surface mount	YES
Switch configuration	PUSH-PULL
Maximum switching frequency	330 kHz
technology	BCDMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

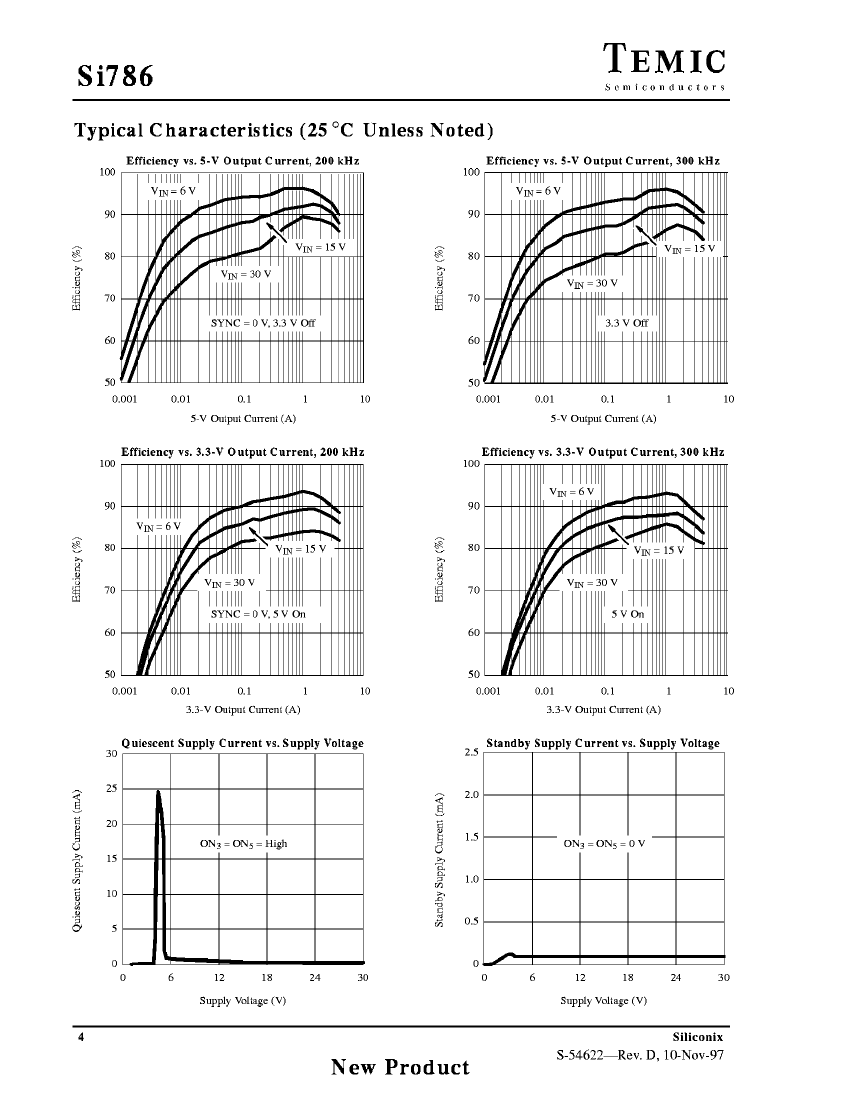

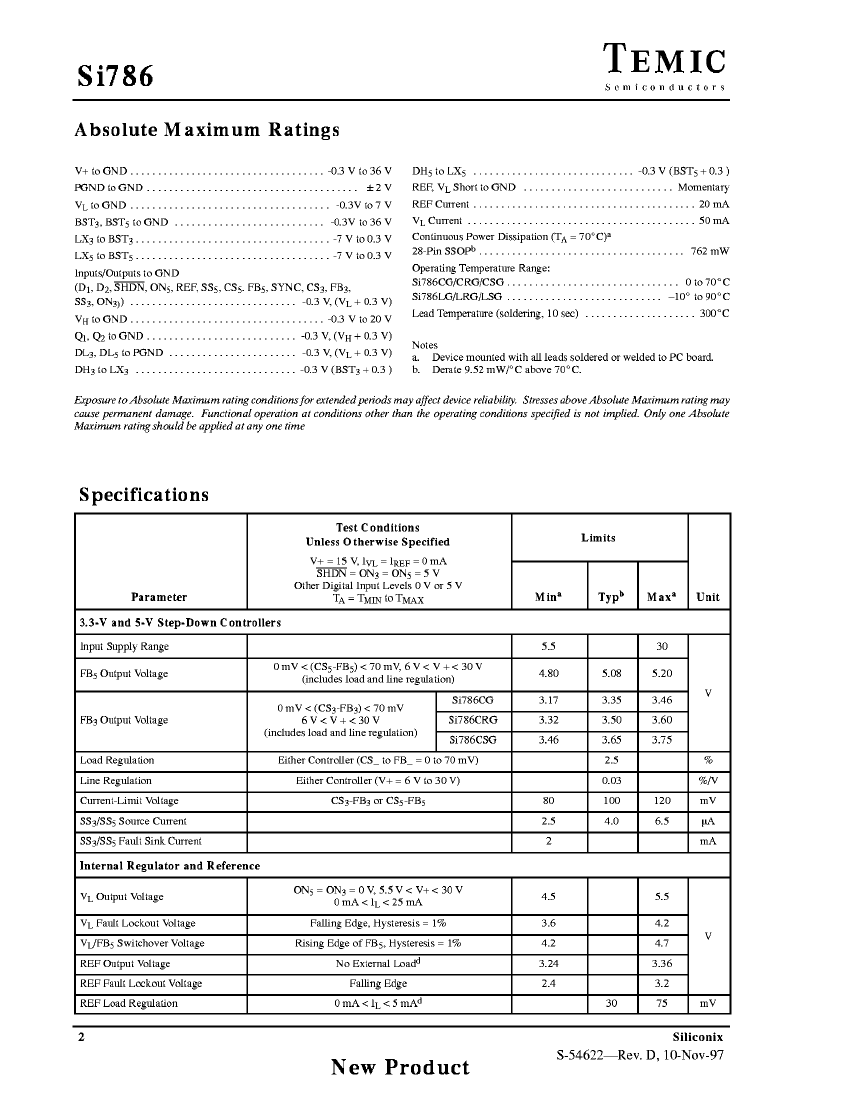

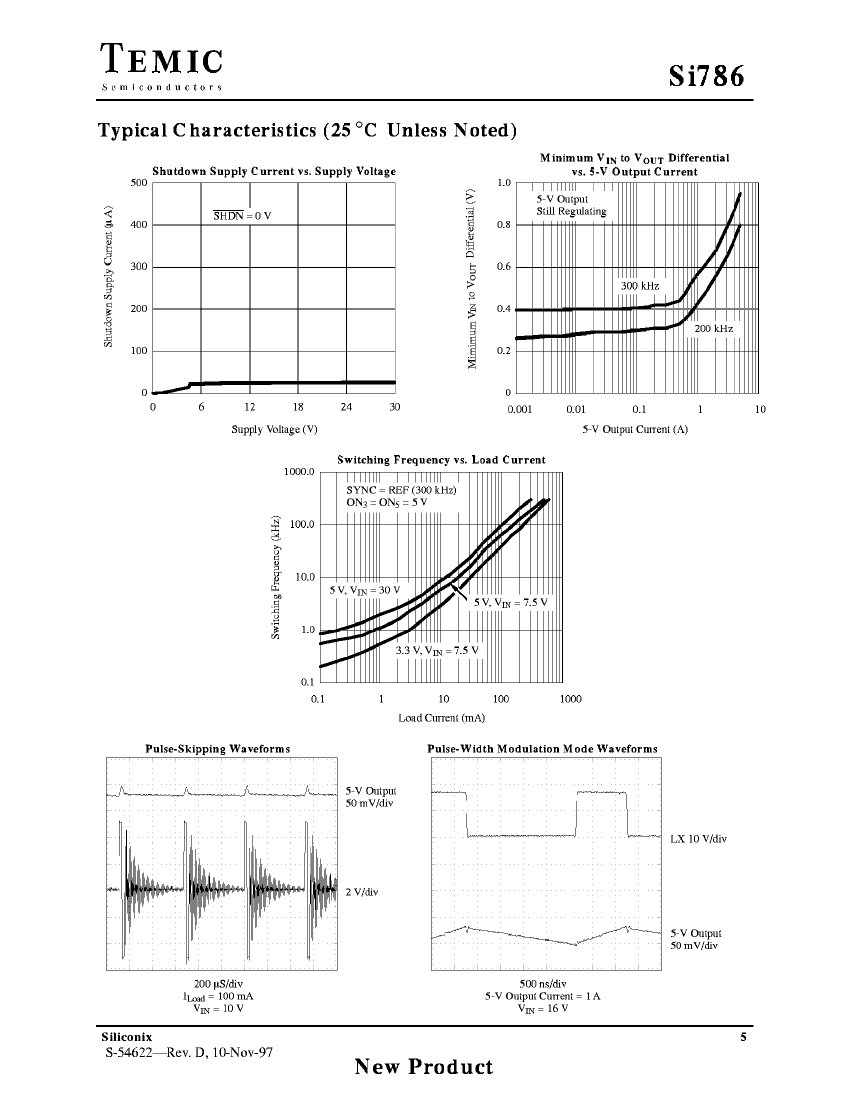

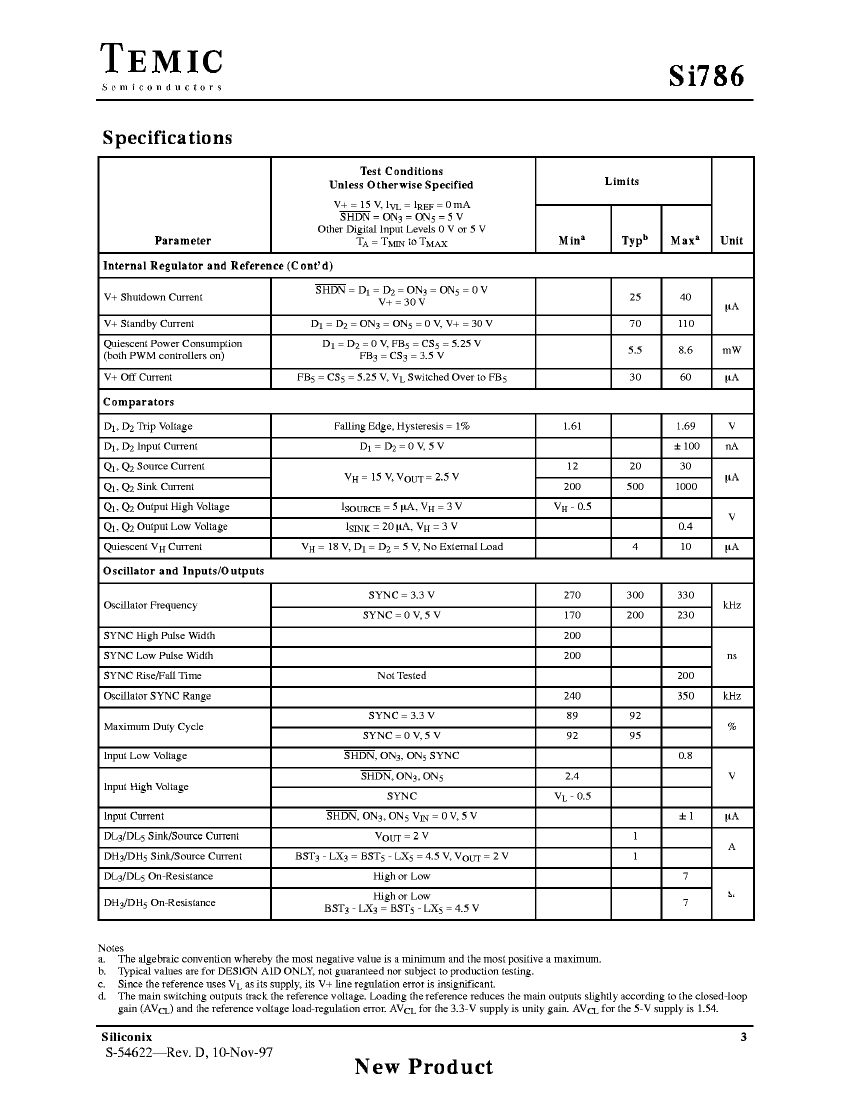

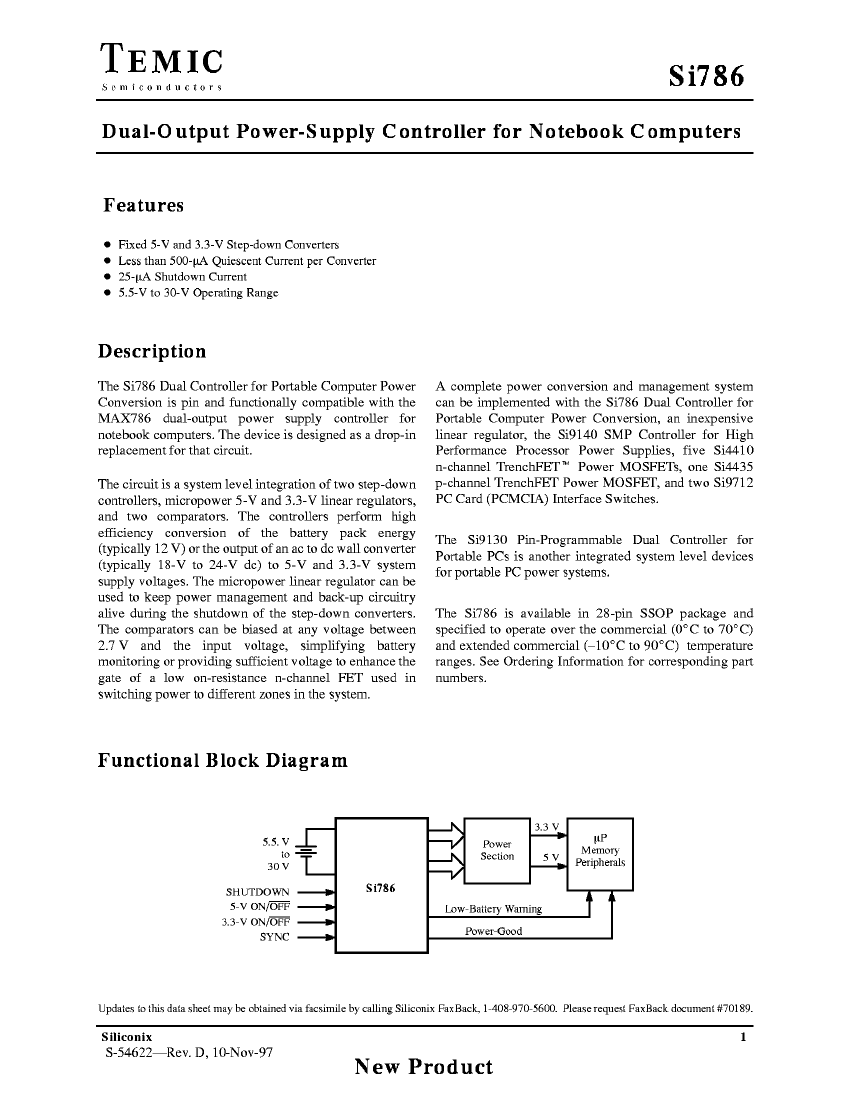

Preview

Download Datasheet

View All

SI786CG Related Products

	SI786CG	SI786LG	SI786CSG	SI786LRG	SI786CRG	SI786LSG
Description	Dual Switching Controller, Current-mode, 330kHz Switching Freq-Max, BCDMOS, PDSO28,	Dual Switching Controller, Current-mode, 330kHz Switching Freq-Max, BCDMOS, PDSO28,	Dual Switching Controller, Current-mode, 330kHz Switching Freq-Max, BCDMOS, PDSO28,	Dual Switching Controller, Current-mode, 330kHz Switching Freq-Max, BCDMOS, PDSO28,	Dual Switching Controller, Current-mode, 330kHz Switching Freq-Max, BCDMOS, PDSO28,	Dual Switching Controller, Current-mode, 330kHz Switching Freq-Max, BCDMOS, PDSO28,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	3.3V OUTPUT AVAILABLE	3.3V OUTPUT AVAILABLE	3.6V OUTPUT AVAILABLE	3.45V OUTPUT AVAILABLE	3.45V OUTPUT AVAILABLE	3.6V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DUAL SWITCHING CONTROLLER	DUAL SWITCHING CONTROLLER	DUAL SWITCHING CONTROLLER	DUAL SWITCHING CONTROLLER	DUAL SWITCHING CONTROLLER	DUAL SWITCHING CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	30 V	30 V	30 V	30 V	30 V	30 V
Minimum input voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Nominal input voltage	15 V	15 V	15 V	15 V	15 V	15 V
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
Number of functions	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
Maximum operating temperature	70 °C	90 °C	70 °C	90 °C	70 °C	90 °C
Nominal output voltage	5 V	5 V	5 V	5 V	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	1.6 mA	1.6 mA	1.6 mA	1.6 mA	1.6 mA	1.6 mA
surface mount	YES	YES	YES	YES	YES	YES
Switch configuration	PUSH-PULL	PUSH-PULL	PUSH-PULL	PUSH-PULL	PUSH-PULL	PUSH-PULL
Maximum switching frequency	330 kHz	330 kHz	330 kHz	330 kHz	330 kHz	330 kHz
technology	BCDMOS	BCDMOS	BCDMOS	BCDMOS	BCDMOS	BCDMOS
Temperature level	COMMERCIAL	OTHER	COMMERCIAL	OTHER	COMMERCIAL	OTHER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
