B85111-A2503-B500 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> B85111-A2503-B500

B85111-A2503-B500: Description250V, 50 HZ, AC FEED THROUGH CAPACITOR, METAL PACKAGE-2; CategoryAnalog mixed-signal IC filter; File Size80KB，2 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric View All

B85111-A2503-B500 Overview

250V, 50 HZ, AC FEED THROUGH CAPACITOR, METAL PACKAGE-2

B85111-A2503-B500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	METAL PACKAGE-2
Reach Compliance Code	compliant
Is Samacsys	N
Certification	UL
diameter	27 mm
filter type	AC FEED THROUGH CAPACITOR
maximum frequency	300 MHz
minimum frequency	0.1 MHz
high	45 mm
high potential	3000 V
Insertion loss@maximum frequency	80 dB
Insertion loss@frequency-min.	2 dB
Manufacturer's serial number	B85111-A2503-B500
Installation type	PANEL MOUNT
working frequency	50 Hz
physical size	D27.0XH45.0 (mm)/D1.063XH1.772 (inch)
Rated current	50 A
Rated voltage	250 V
Base Number Matches	1

Preview

Download Datasheet

View All

Feedthrough Capacitor

B85111-A2503-B500

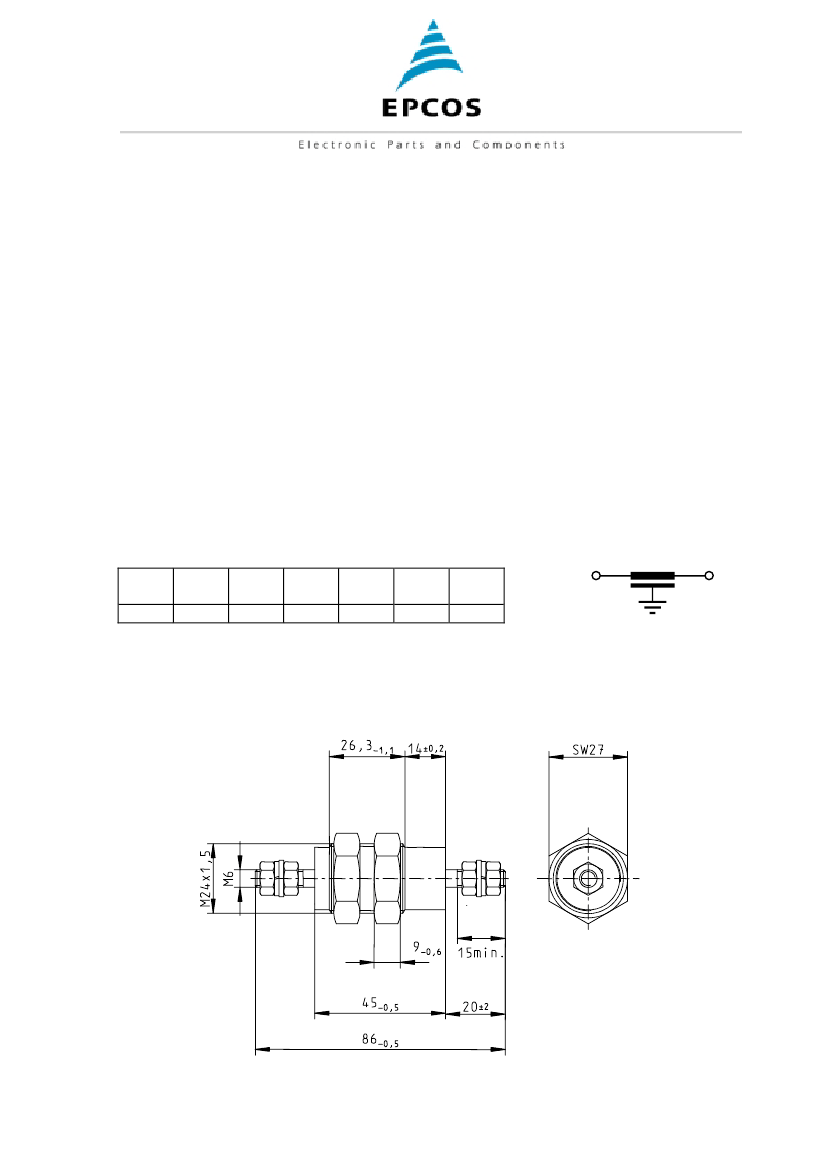

FEATURES:

Metallized (selfhealing) film capacitor. High insertion loss up to the GHz range.

Metal case, resin sealed, plastic insulating bush.

RATINGS AND CHARACTERISTICS:

Rated Capacitance

Capacitance Tolerance

Rated Voltage

Rated Current (T

amb

.60°C)

Test Voltage (Terminal-Case)

Climatic Category

Approx. weight

Terminals

Fixing

TYPICAL INSERTION LOSS (50Ω):

Ω

KHz

100

KHz

MHz

100

MHz

>300

MHz

>80

0,05µF

±20%

600V DC , 250V AC

50A

3000V DC / 2s

40/085/56

120g

M24x1,5

Circuit Diagram:

MATERIAL:

Metal case, nickel plated. UL-listed material for resin and plastic insulating bush.

Terminals, nuts and washers are nickel- or tin plated.

DBL_DUKO\B85111_A2503_b500.doc

KO L E

13.06.02
