LP2950CDT-3.3RK datasheet, PDF

LP2950CDT-3.3RK: Description3.3V FIXED POSITIVE LDO REGULATOR, 0.45V DROPOUT, PSSO2, PLASTIC, DPAK-3; CategoryPower/power management The power supply circuit; File Size375KB，12 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

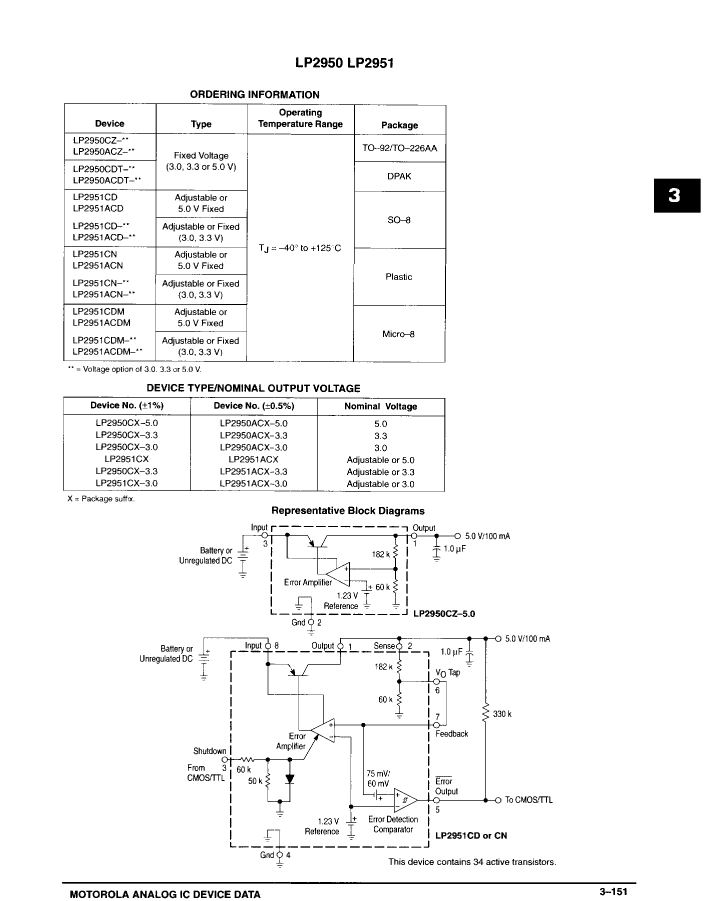

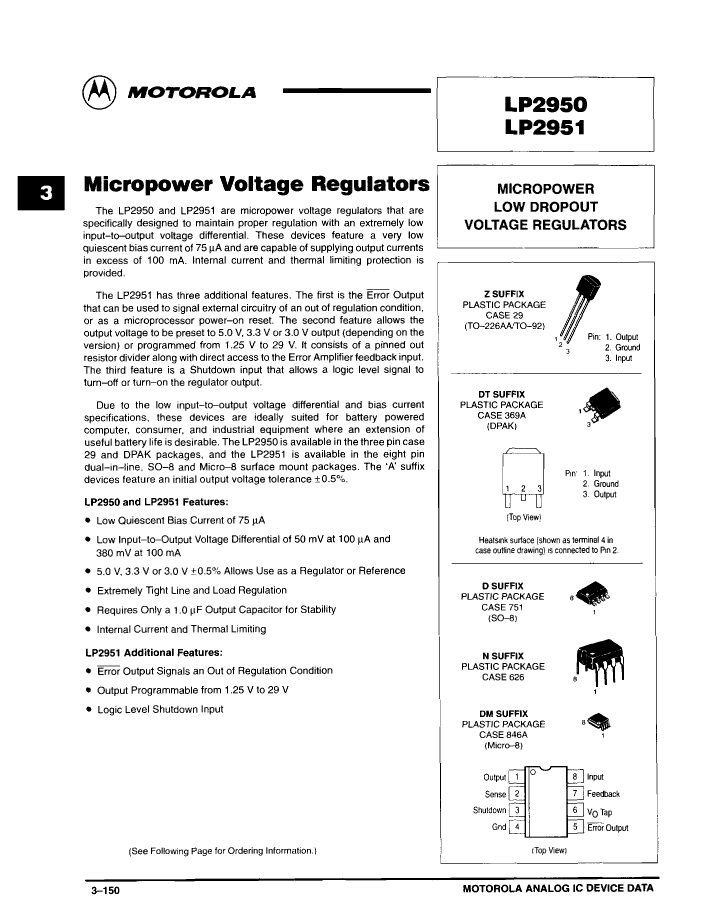

LP2950CDT-3.3RK Overview

3.3V FIXED POSITIVE LDO REGULATOR, 0.45V DROPOUT, PSSO2, PLASTIC, DPAK-3

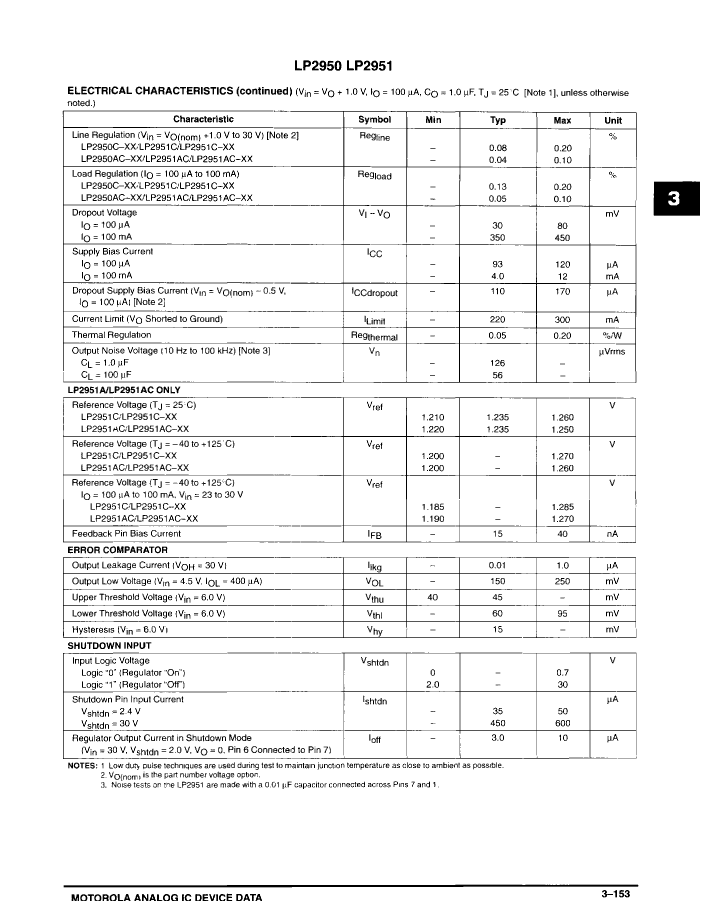

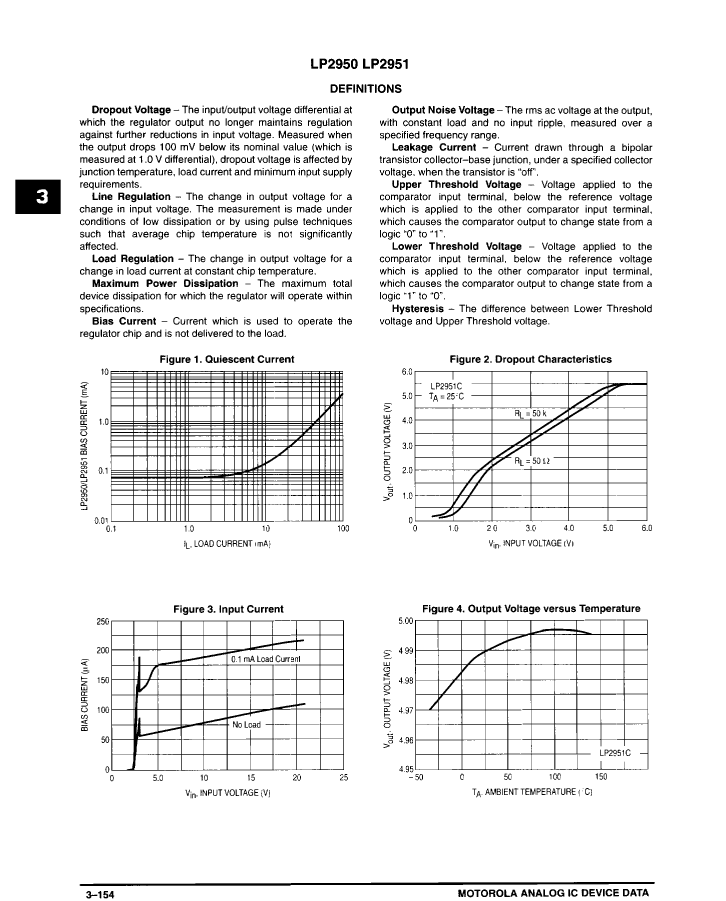

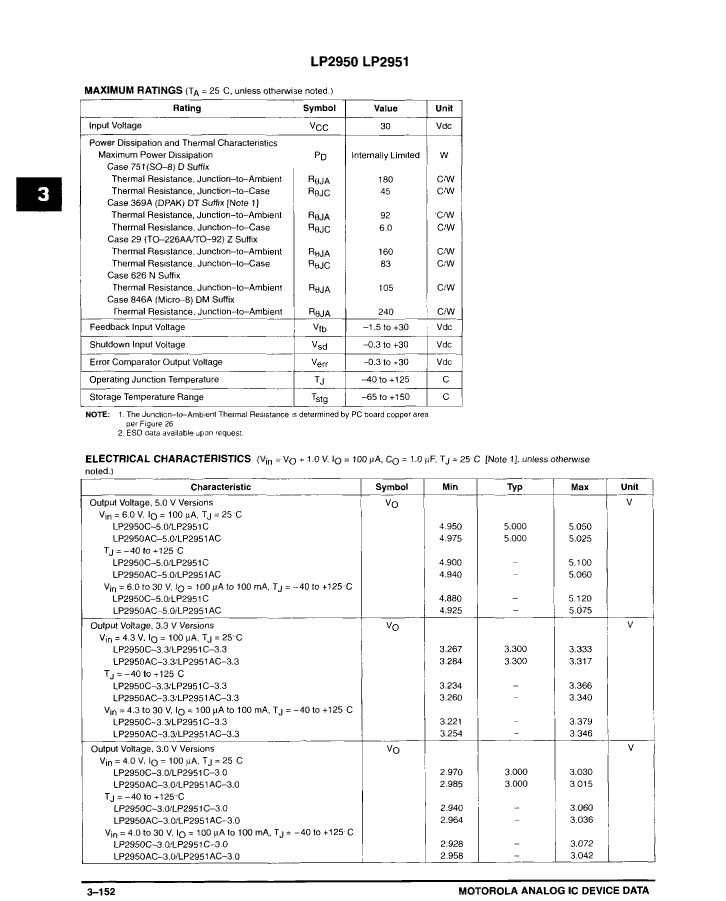

Parameter Name	Attribute value
Parts packaging code	TO-252
package instruction	TO-252,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Maximum drop-back voltage 1	0.45 V
Maximum input voltage	30 V
Minimum input voltage	4.3 V
JESD-30 code	R-PSSO-G2
length	6.54 mm
Number of functions	1
Number of terminals	2
Maximum output current 1	0.1 A
Maximum output voltage 1	3.366 V
Minimum output voltage 1	3.234 V
Nominal output voltage 1	3.3 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-252
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	2.38 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	2.3 mm
Terminal location	SINGLE
width	6.16 mm
Base Number Matches	1
