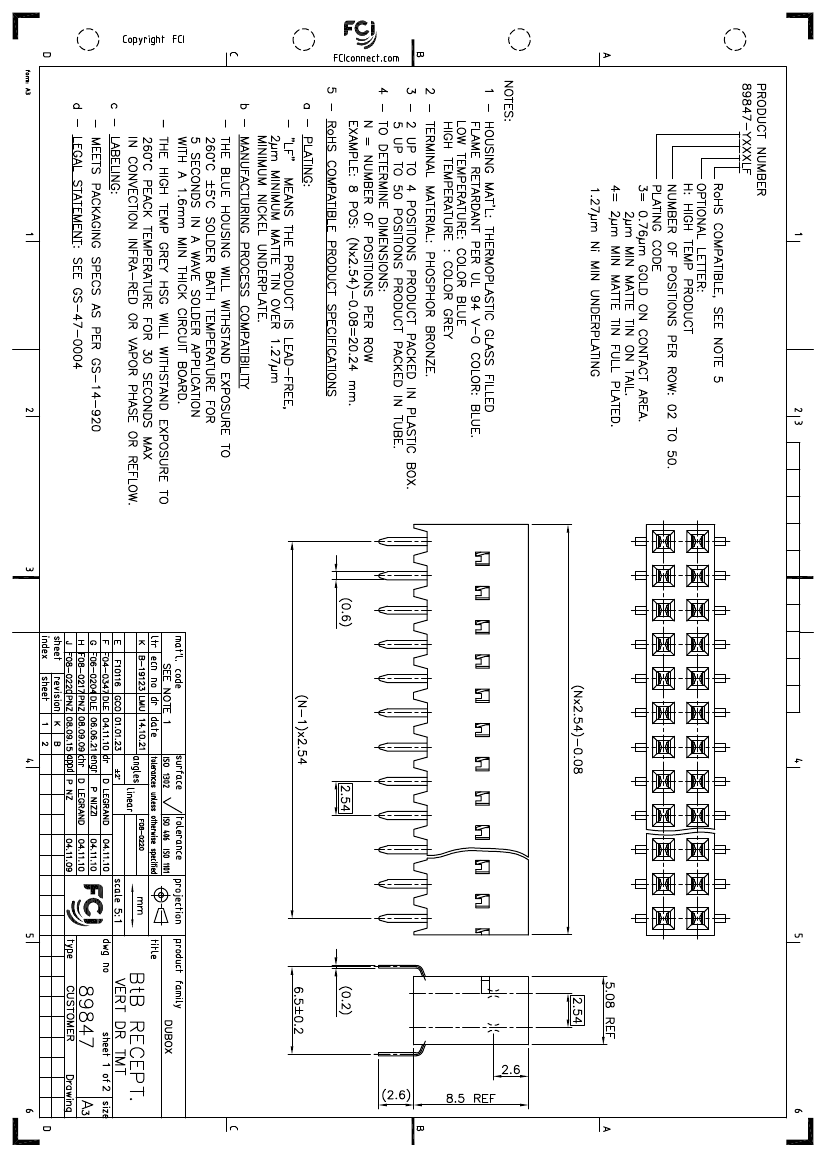

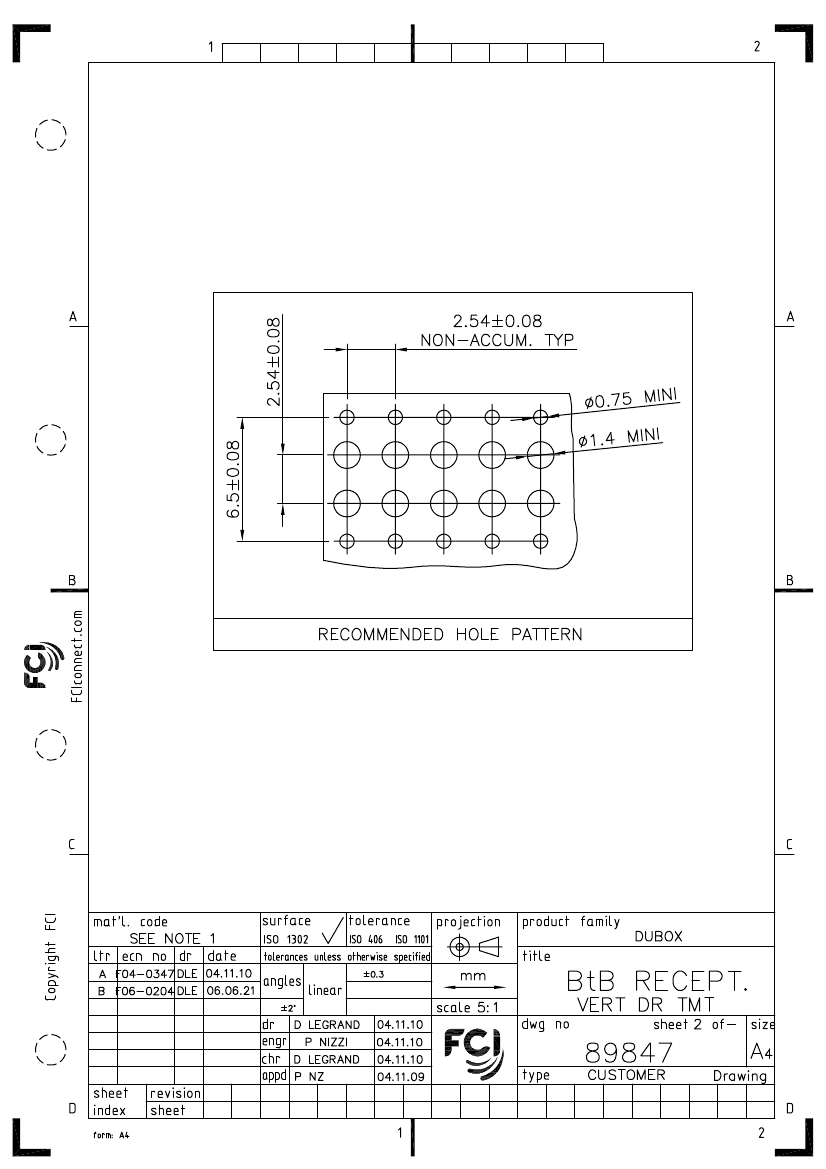

89847-316

Description
Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle
CategoryThe connector    The connector
File Size102KB，2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

89847-316 Overview

Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle

89847-316 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
body width0.2 inch
subject depth0.335 inch
body length1.597 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance15 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1400VAC V
Durability225 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force1.5012 N
Insulation resistance100000000000 Ω
Insulator colorBLUE
insulator materialGLASS FILLED THERMOPLASTIC
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number89847
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing6.5024 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.102 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts32
UL Flammability Code94V-0
Evacuation force-minimum value.30024 N
Base Number Matches1

Preview

Download Datasheet
PDS: Rev :K
STATUS:Released
Printed: Oct 29, 2014

89847-316 Related Products

89847-316 89847-304LF 89847-307 89847-314LF 89847-310 89847-305LF 89847-316LF 89847-325LF 89847-325 89847-304HLF
Description Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle Board Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle, ROHS COMPLIANT Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle Board Connector, 28 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle, ROHS COMPLIANT Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle, ROHS COMPLIANT Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle, ROHS COMPLIANT Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle, ROHS COMPLIANT Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle Board Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator, Receptacle
Is it Rohs certified? incompatible conform to incompatible conform to incompatible conform to conform to conform to incompatible conform to
Reach Compliance Code unknown compliant compliant compliant compliant compliant compliant compliant unknown compliant
body width 0.2 inch 0.2 inch 0.2 inch 0.2 inch 0.2 inch 0.2 inch 0.2 inch 0.2 inch 0.2 inch 0.2 inch
subject depth 0.335 inch 0.335 inch 0.335 inch 0.335 inch 0.335 inch 0.335 inch 0.335 inch 0.335 inch 0.335 inch 0.335 inch
body length 1.597 inch 0.397 inch 0.697 inch 1.397 inch 0.997 inch 0.497 inch 1.597 inch 2.497 inch 2.497 inch 0.397 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD (30) MATTE TIN (79) OVER NICKEL GOLD (30) MATTE TIN OVER NICKEL GOLD (30) MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL MATTE TIN (79) OVER NICKEL GOLD (30) AU ON NI
Contact completed and terminated Tin/Lead (Sn/Pb) Matte Tin (Sn) - with Nickel (Ni) barrier Tin/Lead (Sn/Pb) Matte Tin (Sn) - with Nickel (Ni) barrier Tin/Lead (Sn/Pb) Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Tin/Lead (Sn/Pb) Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE NOT SPECIFIED PHOSPHOR BRONZE NOT SPECIFIED NOT SPECIFIED PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 15 mΩ 15 mΩ 15 mΩ 15 mΩ 15 mΩ 15 mΩ 15 mΩ 15 mΩ 15 mΩ 15 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Dielectric withstand voltage 1400VAC V 1400VAC V 1400VAC V 1400VAC V 1400VAC V 1400VAC V 1400VAC V 1400VAC V 1400VAC V 1400VAC V
Durability 225 Cycles 225 Cycles 225 Cycles 225 Cycles 225 Cycles 225 Cycles 225 Cycles 225 Cycles 225 Cycles 225 Cycles
maximum insertion force 1.5012 N 1.5012 N 1.5012 N 1.5012 N 1.4734 N 1.5012 N 1.5012 N 1.5012 N 1.5012 N 1.5012 N
Insulation resistance 100000000000 Ω 100000000000 Ω 100000000000 Ω 100000000000 Ω 100000000000 Ω 100000000000 Ω 100000000000 Ω 100000000000 Ω 100000000000 Ω 100000000000 Ω
Insulator color BLUE BLUE BLUE BLUE BLUE BLUE BLUE BLUE BLUE GRAY
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
JESD-609 code e0 e3 e0 e3 e0 e3 e3 e3 e0 e3
Manufacturer's serial number 89847 89847 89847 89847 89847 89847 89847 89847 89847 89847
Plug contact pitch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Installation option 1 LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE ONE ONE ONE ONE
PCB row number 2 2 2 2 2 2 2 2 2 2
Number of rows loaded 2 2 2 2 2 2 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 6.5024 mm 6.5024 mm 6.5024 mm 6.5024 mm 6.5024 mm 6.5024 mm 6.5024 mm 6.5024 mm 6.5024 mm 6.5024 mm
Plating thickness 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A
Guideline UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.102 inch 0.102 inch 0.102 inch 0.102 inch 0.102 inch 0.102 inch 0.102 inch 0.102 inch 0.102 inch 0.102 inch
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 32 8 14 28 20 10 32 50 50 8
Evacuation force-minimum value .30024 N .30024 N .30024 N .30024 N .30024 N .30024 N .30024 N .30024 N .30024 N .30024 N
Base Number Matches 1 1 1 1 1 1 1 1 1 1
ECCN code EAR99 EAR99 - EAR99 EAR99 - - EAR99 EAR99 -
DIN compliance NO NO NO NO NO NO NO NO NO -
Filter function NO NO NO NO NO NO NO NO NO -
IEC compliance NO NO NO NO NO NO NO NO NO -
MIL compliance NO NO NO NO NO NO NO NO NO -
Mixed contacts NO NO NO NO NO NO NO NO NO -
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE -
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 -
