IT28SG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> IT28SG

IT28SG: Description4 Quadrant Logic Level TRIAC, 200V V(DRM), 8A I(T)RMS, TO-220AB, TO-220, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size213KB，2 Pages; ManufacturerHutson Industries

Download Datasheet Parametric View All

IT28SG Overview

4 Quadrant Logic Level TRIAC, 200V V(DRM), 8A I(T)RMS, TO-220AB, TO-220, 3 PIN

IT28SG Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	SENSITIVE GATE
Shell connection	ISOLATED
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	30 V/us
Maximum DC gate trigger current	10 mA
Maximum DC gate trigger voltage	2.2 V
Maximum holding current	25 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum leakage current	0.5 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	8 A
Off-state repetitive peak voltage	200 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC
Base Number Matches	1

Preview

Download Datasheet

View All

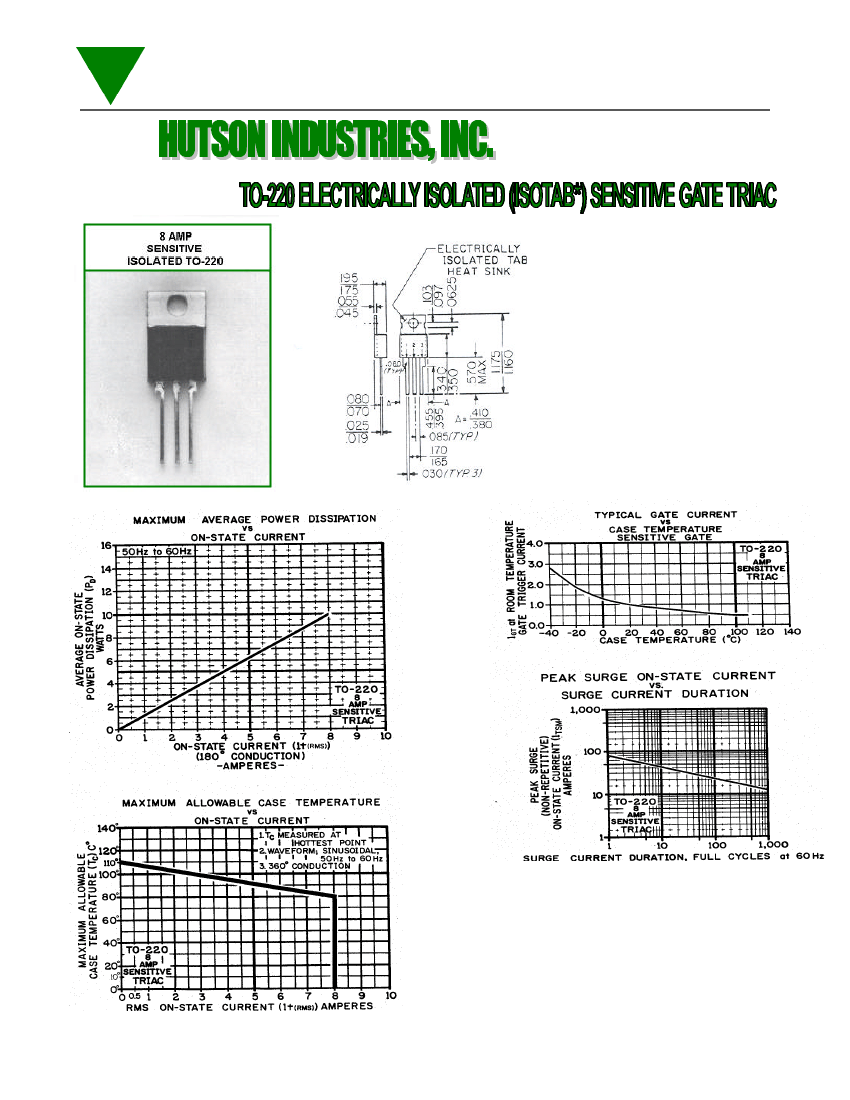

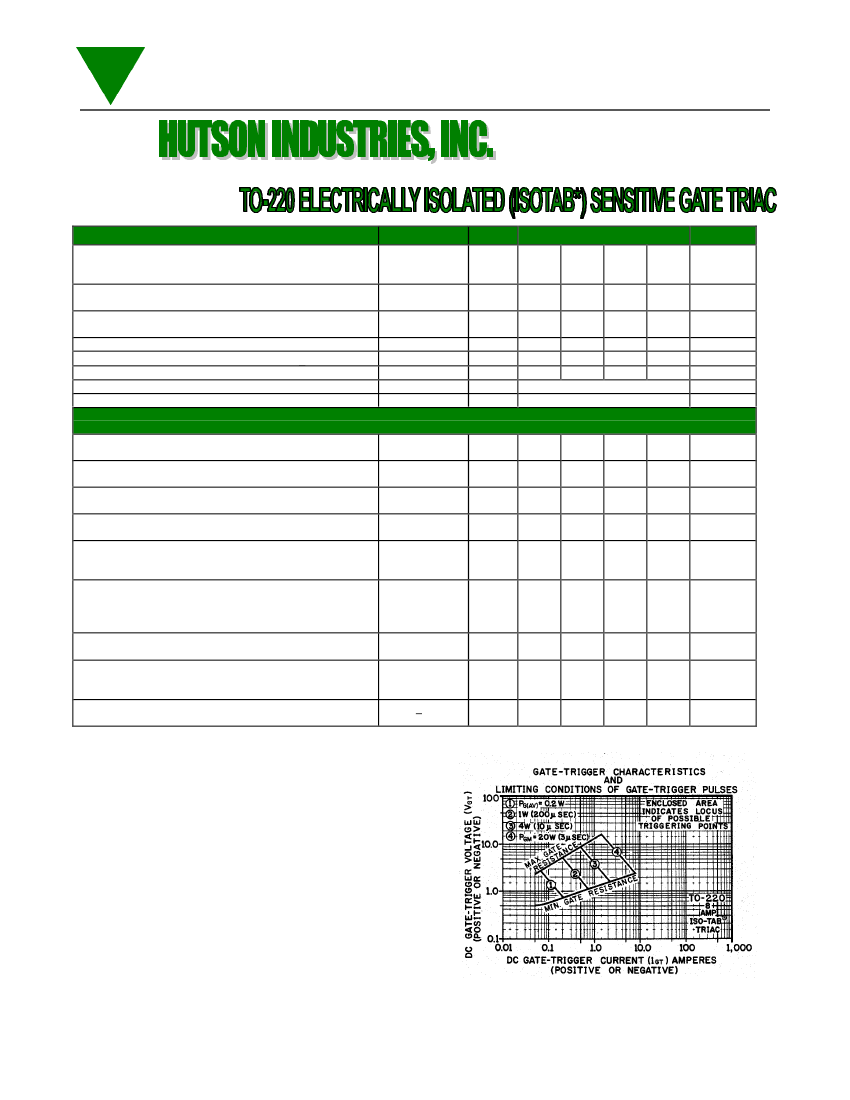

MAXIMUM RATINGS

REPETITIVE PEAK OFF-STATE VOLTAGE (1)

GATE OPEN, AND TJ = 110° C

RMS ON-STATE CURRENT AT TC = 80º C AND

CONDUCTION, ANGLE OF 360º

PEAK SURGE (NON-REPETITIVE) ON-STATE CURRENT,

ONE-CYCLE, AT 50HZ OR 60HZ

PEAK GATE - TRIGGER CURRENT FOR 3µSEC. MAX.

PEAK GATE-POWER DISSIPATION AT IGT

IGTM

AVERAGE GATE - POWER DISSIPATION

STORAGE TEMPERATURE RANGE

OPERATING TEMPERATURE RANGE, TJ

ELECTRICAL CHARACTERISTICS

At Specified Case Temperatures

PEAK OFF - STATE CURRENT (1) GATE OPEN

TC = 110° C VDRM = MAX. RATING

MAXIMUM ON - STATE VOLTAGE,

(1) AT TC = 25° C AND IT = RATED AMPS

DC HOLDING CURRENT, (1) GATE OPEN AND TC = 25° C

SYMBOL VDRM

VDRM

IT(RMS)

ITSM

IGTM

PGM

PG(AV)

TSTG

TOPER

200

400

600

DEVICE NUMBERS

IT28SD IT28TD IT28SG IT28TG

IT48SD IT48TD IT48SG IT48TG

IT68SD IT68TD IT68SG IT68TG

8.0

0.2

8.0

UNITS

VOLT

AMP

WATT

°C

0.2

-40

+150

-40

+110

IDRM

VTM

IHO

0.5

1.6

ALL

QUAD

2.2

2.5

0.5

1.6

I, II, III

0.5

1.6

ALL

QUAD

2.2

2.5

0.5

1.6

I, II, III

MAX.

VOLT

MAX.

V/µSEC.

CRITICAL RATE-OF-RISE OF OFF-STATE VOLTAGE,

CRITICAL

(1) FOR VD = VDRM GATE OPEN, TC = 110° C

dv/dt

CRITICAL RATE-OF-RISE OF COMMUTATION VOLTAGE,

COMMUTATING

(1) AT TC = 80° C, GATE UNENERGIZED, VD = VDRM

dv/dt

IT = IT (RMS)

DC GATE - TRIGGER CURRENT FOR VD = 12VDC.

RL = 60

Ω

AND AT TC = 25° C

IGT

(T2 + GATE + T2 - GATE-) QUADS I & III

(T2 + GATE - T2 - GATE +) QUADS II & IV

DC GATE - TRIGGER VOLTAGE FOR VD = 12VDC.

VGT

RL = 60

Ω

AND AT TC = 25° C

GATE CONTROLLED TURN-ON TIME FOR VD = VDRM

TGT

IGT = 80MA TR = 0.1 µSEC. IT = 10A (PEAK) AND TC = 25°

THERMAL RESISTANCE, JUNCTION-TO-CASE

*NOTES:

(1) ALL VALUES APPLY IN EITHER DIRECTION

*Trademark of Hutson Industries, Inc.

(2) ALL HUTSON ISOLATED TO-220 TRIAC DEVICES

ARE UL RECOGNIZED. UL NUMBER E95589 (N)

R0J-C

MAX.

VOLT

MAX.

µSEC.

°C / WATT

TYP

2.2

2.5

2.2

2.5

SOLID STATE CONTROL DEVICES
