HM1G41FBR000H5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM1G41FBR000H5

HM1G41FBR000H5: DescriptionBoard Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, 0.236 inch Pitch, Solder Terminal, Locking Mech, Plug; CategoryThe connector The connector; File Size490KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM1G41FBR000H5 Overview

Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, 0.236 inch Pitch, Solder Terminal, Locking Mech, Plug

HM1G41FBR000H5 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Is Samacsys	N
Board mount options	PEG
body width	0.467 inch
subject depth	0.768 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	100 Cycles
maximum insertion force	.4448 N
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	HM1G
Plug contact pitch	0.236 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	HOUSING SIDE
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

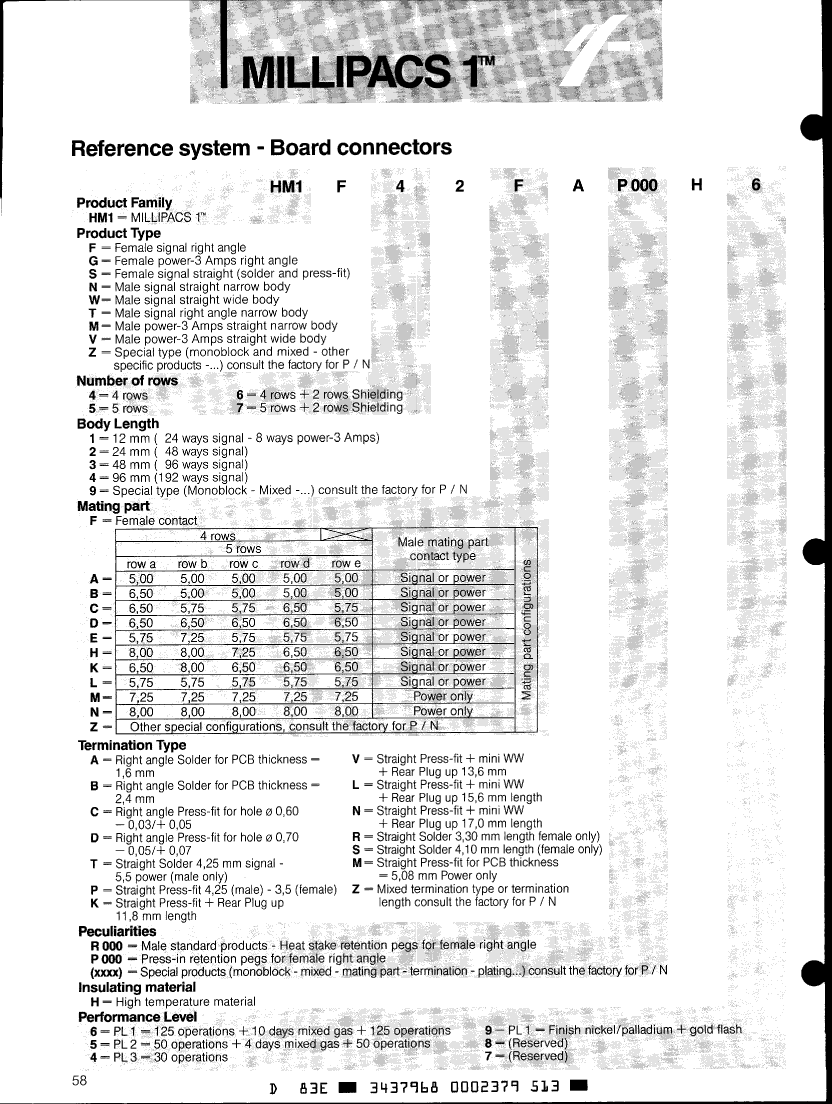

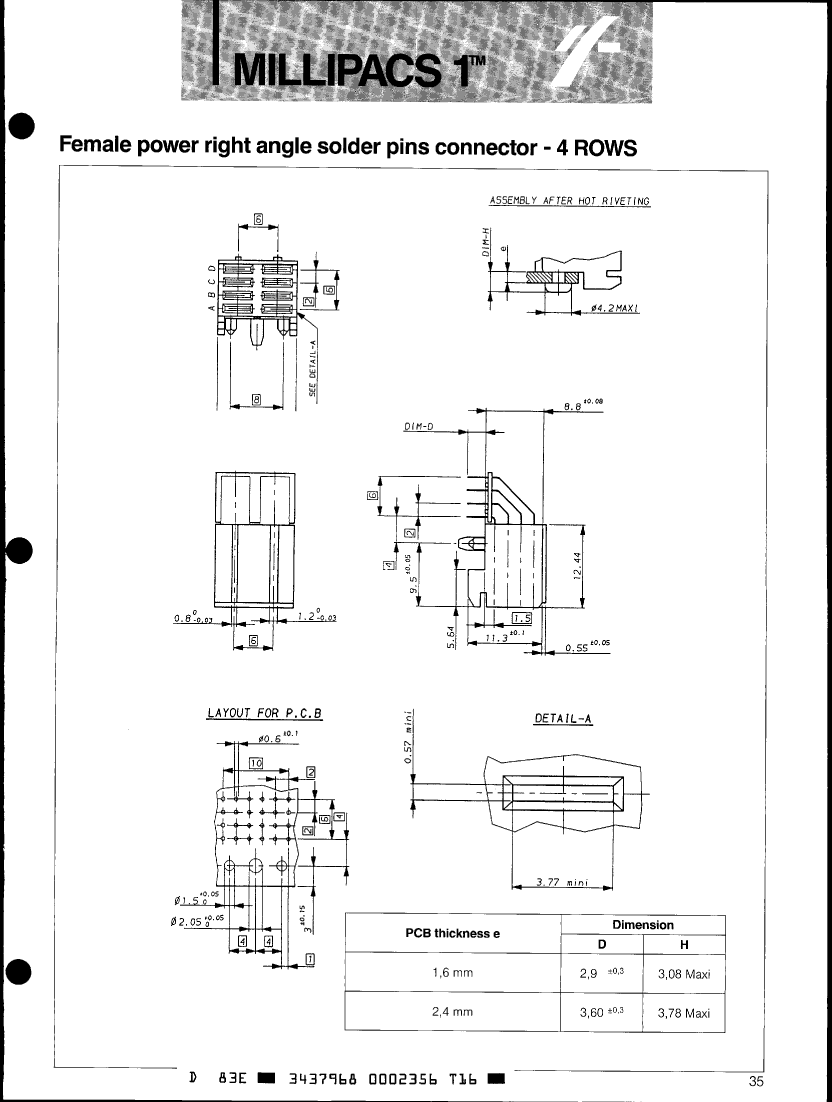

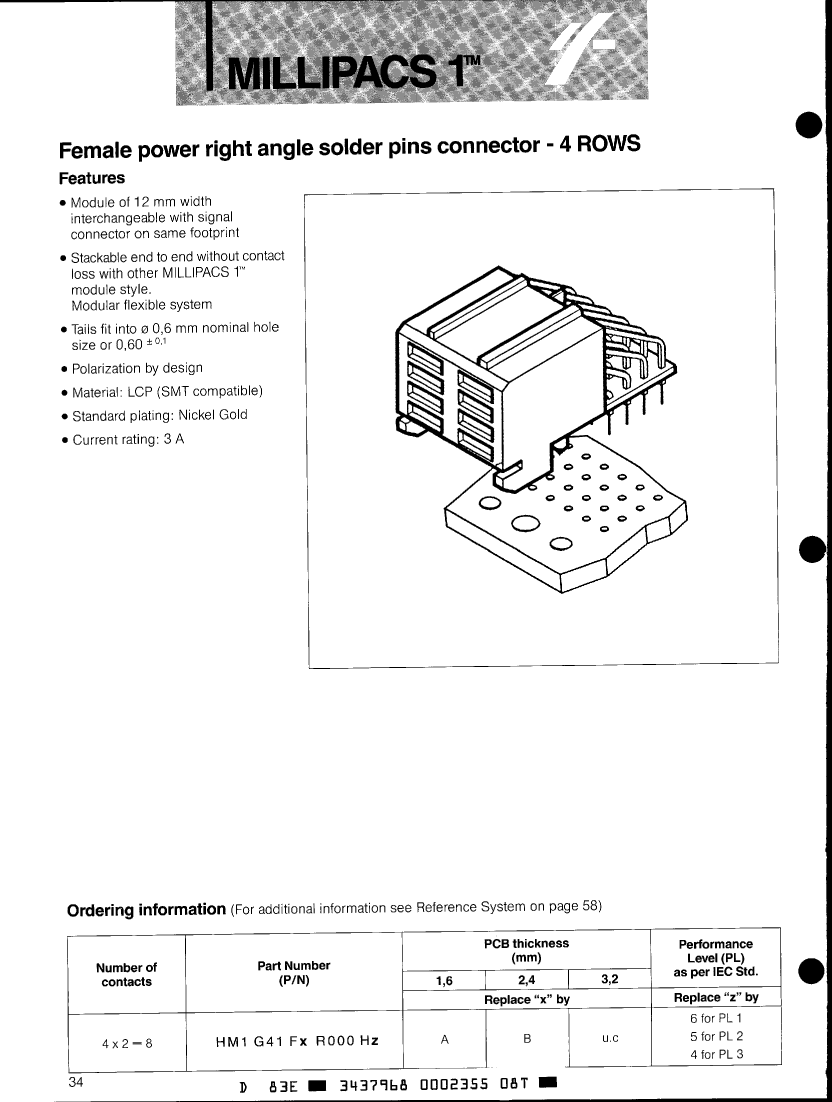

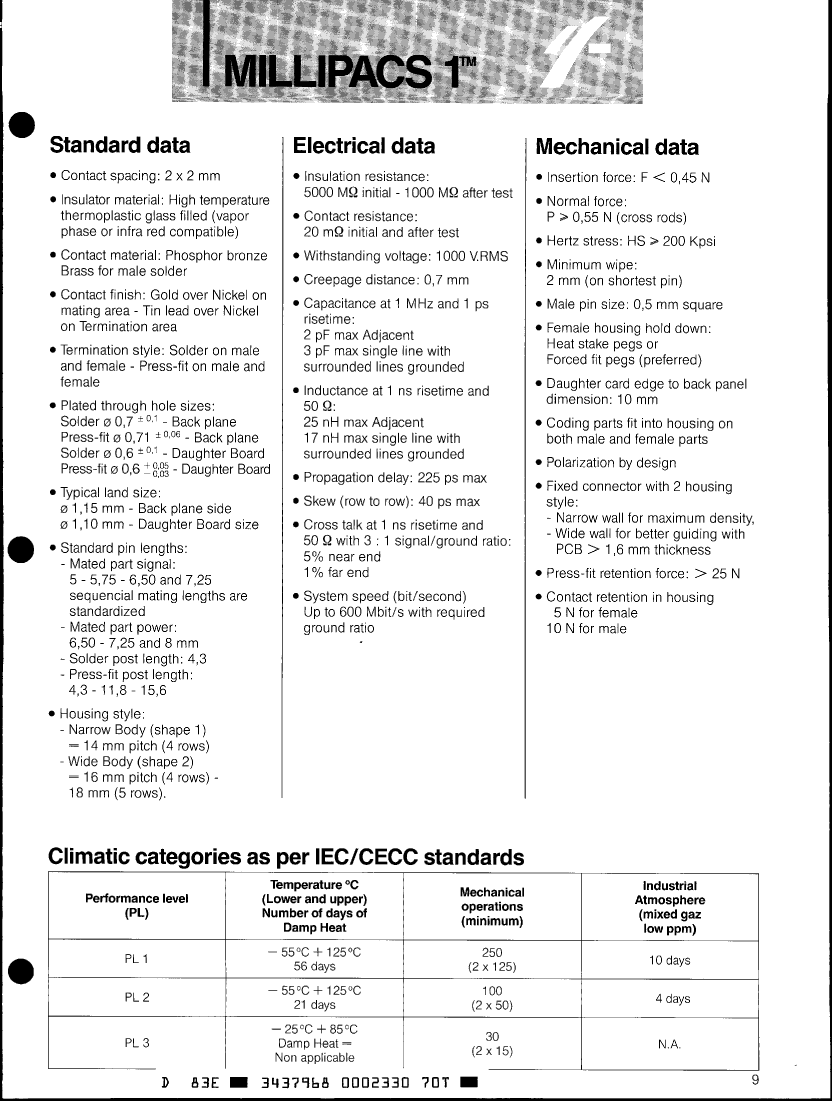

Preview

Download Datasheet

View All

HM1G41FBR000H5 Related Products

	HM1G41FBR000H5	HM1G41FAR000H5	HM1G41FAR000H4	HM1G41FBR000H4
Description	Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, 0.236 inch Pitch, Solder Terminal, Locking Mech, Plug	Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, 0.236 inch Pitch, Solder Terminal, Locking Mech, Plug	Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, 0.236 inch Pitch, Solder Terminal, Locking Mech, Plug	Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, 0.236 inch Pitch, Solder Terminal, Locking Mech, Plug
Reach Compliance Code	compliant	compliant	compliant	compliant
Board mount options	PEG	PEG	PEG	PEG
body width	0.467 inch	0.467 inch	0.467 inch	0.467 inch
subject depth	0.768 inch	0.768 inch	0.768 inch	0.768 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	100 Cycles	100 Cycles	30 Cycles	30 Cycles
maximum insertion force	.4448 N	.4448 N	.4448 N	.4448 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	HM1G	HM1G	HM1G	HM1G
Plug contact pitch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	4	4	4	4
Number of rows loaded	4	4	4	4
Maximum operating temperature	125 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
polarization key	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.142 inch	0.114 inch	0.114 inch	0.142 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	8	8	8
Is Samacsys	N	N	N	-
Base Number Matches	1	1	1	-
