D37P81C4GV00LF datasheet, PDF - EEWORLD Datasheet

D37P81C4GV00LF: DescriptionD Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Press Fit Terminal, #4-40, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size129KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D37P81C4GV00LF Overview

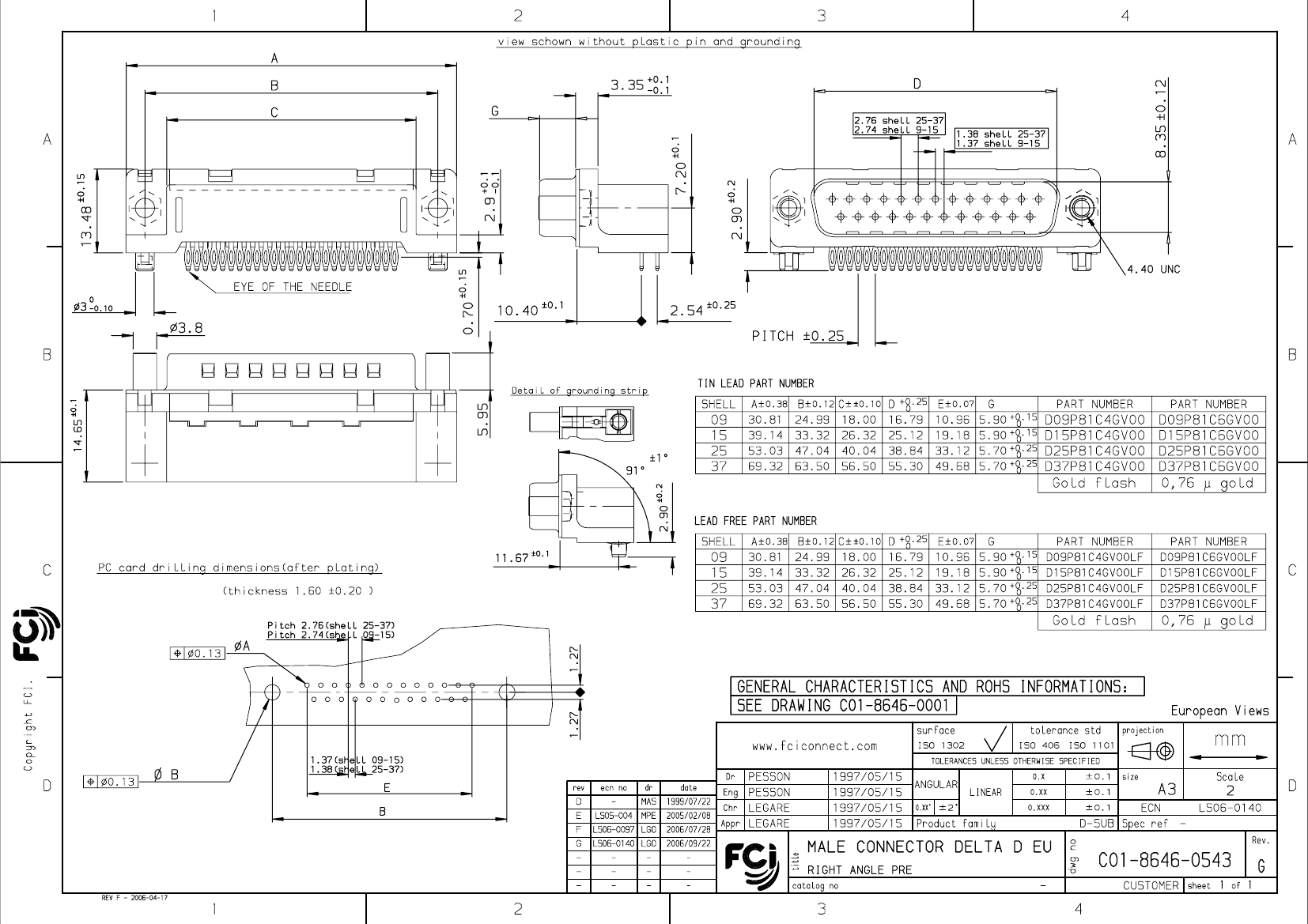

D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Press Fit Terminal, #4-40, Receptacle, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2142355169
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.5
Other features	ROHS COMPLIANT
body width	0.531 inch
subject depth	0.577 inch
body length	2.729 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
insulator material	POLYETHYLENE
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.114 inch
Terminal pitch	2.76 mm
Termination type	PRESS FIT
Total number of contacts	37
Evacuation force-minimum value	.3058 N

PDM: Rev:G

STATUS:

Released

Printed: Jan 18, 2011

	D37P81C4GV00LF	100700990001	AMP1501-06B
