ZREF12ZSTOA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ZREF12ZSTOA

ZREF12ZSTOA: DescriptionTwo Terminal Voltage Reference, 1 Output, 1.24V, BIPolar, PSIP3; CategoryPower/power management The power supply circuit; File Size167KB，4 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/

Download Datasheet Parametric Compare View All

ZREF12ZSTOA Overview

Two Terminal Voltage Reference, 1 Output, 1.24V, BIPolar, PSIP3

ZREF12ZSTOA Parametric

Parameter Name	Attribute value
package instruction	SIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PSIP-T3
length	4.57 mm
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	1.252 V
Minimum output voltage	1.228 V
Nominal output voltage	1.24 V
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.01 mm
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	90 ppm/°C
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	SINGLE
Fine-tuning/adjustable output	NO
width	2.285 mm
Base Number Matches	1

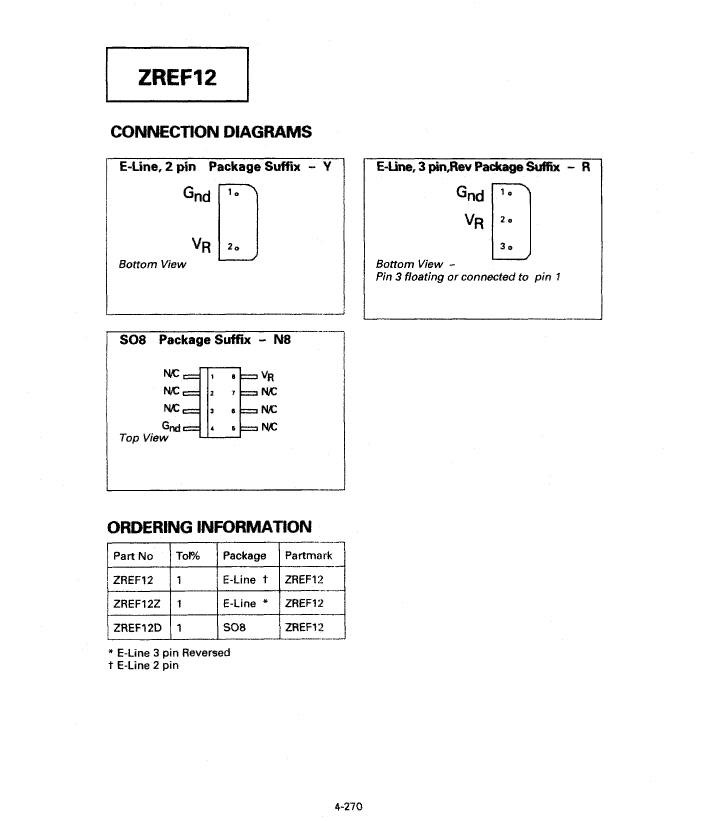

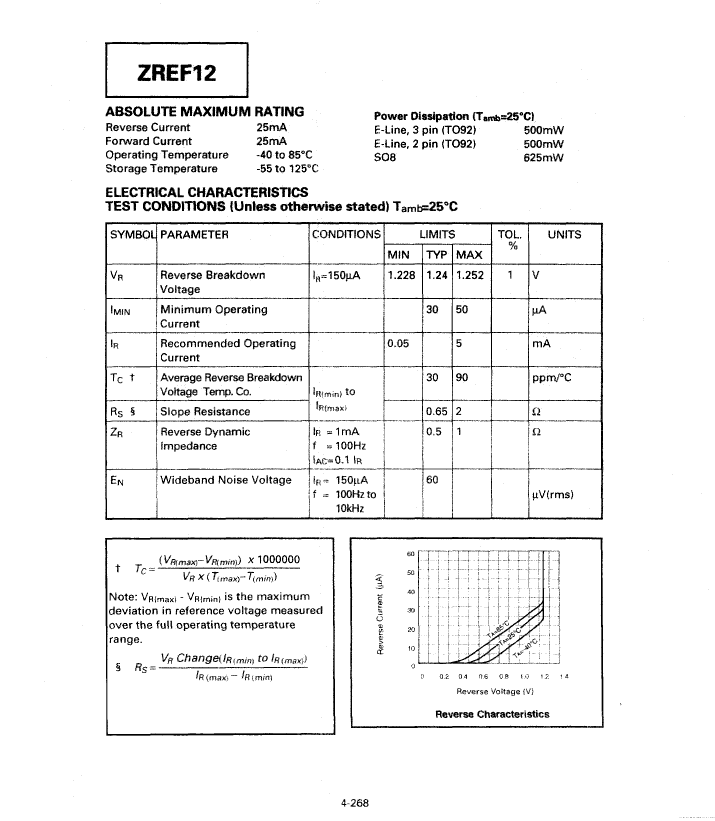

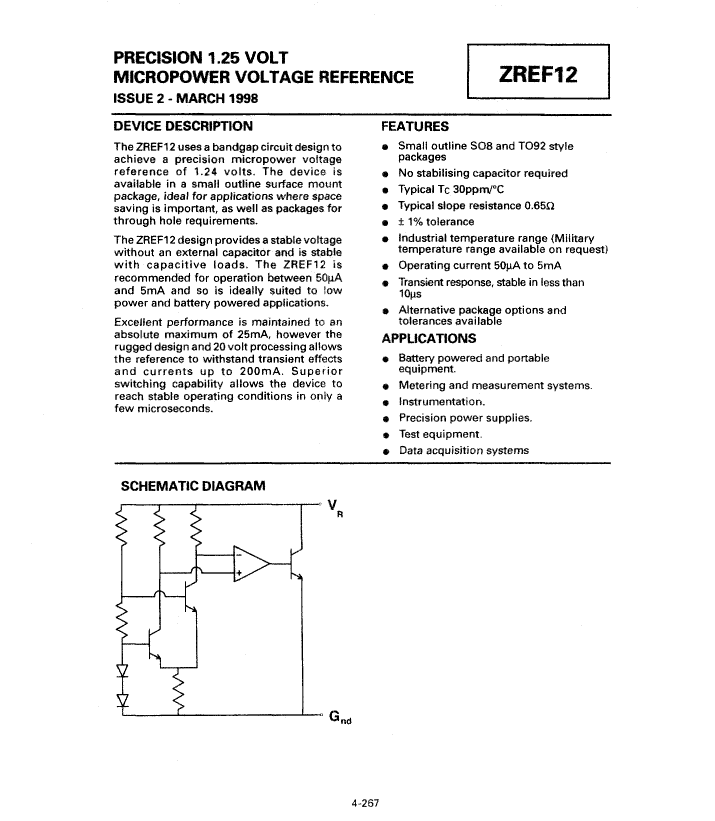

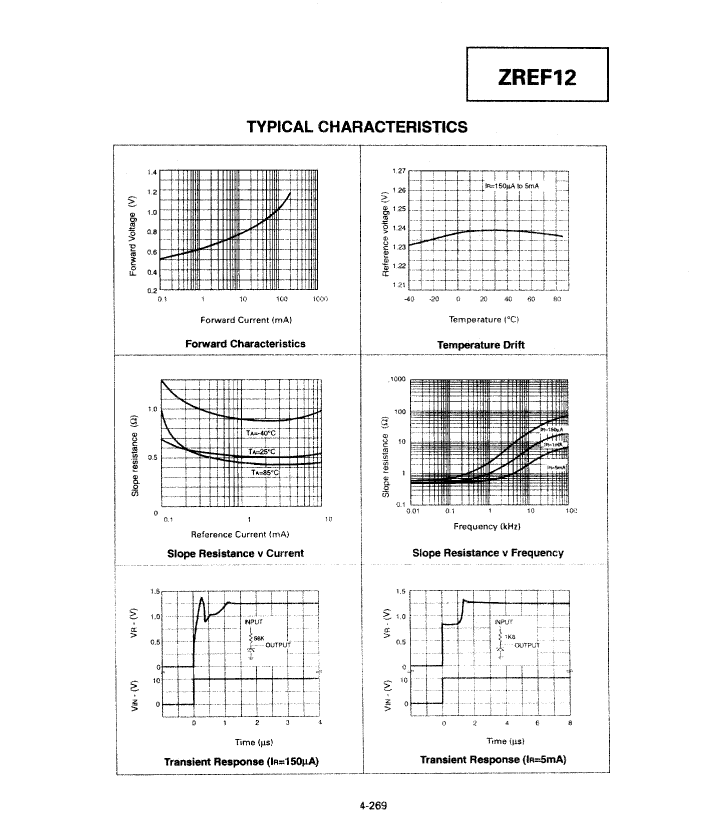

Preview

Download Datasheet

View All

ZREF12ZSTOA Related Products

	ZREF12ZSTOA	ZREF12ZSTOB	ZREF12ZSTZ	ZREF12STZ	ZREF12STOB	ZREF12STOA
Description	Two Terminal Voltage Reference, 1 Output, 1.24V, BIPolar, PSIP3	Two Terminal Voltage Reference, 1 Output, 1.24V, BIPolar, PSIP3	Two Terminal Voltage Reference, 1 Output, 1.24V, BIPolar, PSIP3	Two Terminal Voltage Reference, 1 Output, 1.24V, BIPolar, PSIP2	Two Terminal Voltage Reference, 1 Output, 1.24V, BIPolar, PSIP2	Two Terminal Voltage Reference, 1 Output, 1.24V, BIPolar, PSIP2
package instruction	SIP,	SIP,	SIP,	SIP,	SIP,	SIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T2	R-PSIP-T2	R-PSIP-T2
length	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm
Number of functions	1	1	1	1	1	1
Output times	1	1	1	1	1	1
Number of terminals	3	3	3	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	1.252 V	1.252 V	1.252 V	1.252 V	1.252 V	1.252 V
Minimum output voltage	1.228 V	1.228 V	1.228 V	1.228 V	1.228 V	1.228 V
Nominal output voltage	1.24 V	1.24 V	1.24 V	1.24 V	1.24 V	1.24 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIP	SIP	SIP	SIP	SIP	SIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.01 mm	4.01 mm	4.01 mm	4.01 mm	4.01 mm	4.01 mm
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	90 ppm/°C	90 ppm/°C	90 ppm/°C	90 ppm/°C	90 ppm/°C	90 ppm/°C
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO
width	2.285 mm	2.285 mm	2.285 mm	2.285 mm	2.285 mm	2.285 mm
Base Number Matches	1	1	1	1	1	1
