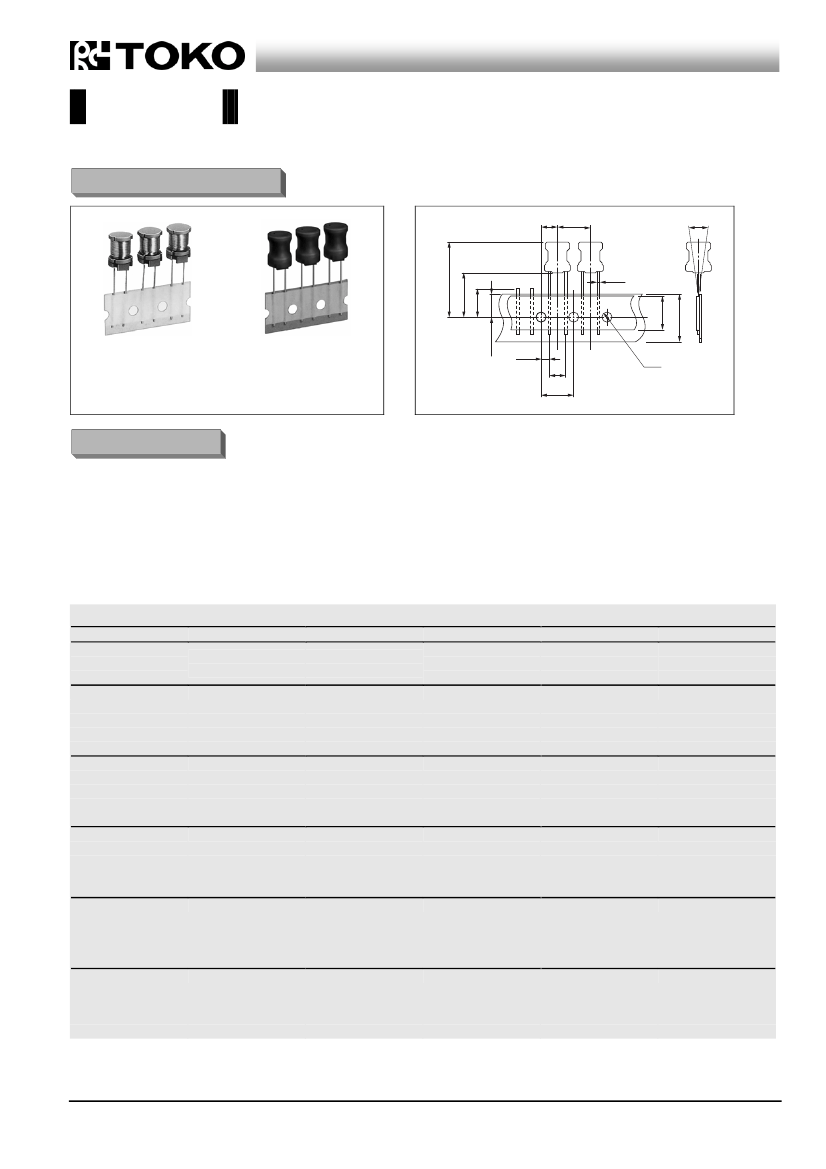

A830LY-821K: DescriptionRadial Type Fixed Inductors; File Size83KB，2 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet View All

A830LY-821K Overview

Radial Type Fixed Inductors

Preview

Download Datasheet

View All

Radial Type Fixed Inductors

ラジアルタイプ固定インダクタ

10RHT2

Inductance Range:

10~3900μH

DIMENSIONS／外½寸法図

6.35 12.7

0±2°

34.0Max.

21.3Max.

11Max.

φ0.7

12.5

3.85

12.7

φ4

(4)

(2)

9.5Max.

FEATURES／特長

•

Open magnetic circuit construction.

High rated current.

5 mm-pitch, 2-terminals fixed inductor.

Ideal for use as choke coil for high current DC circuits in

all types of electronic instruments.

•

RoHS compliant.

•

開磁路構造

定格電流が大きい

5mmピッチの2端子½固定インダクタ

各種電子機器の大電流回路チョークコイルに最適

RoHS指令対応

SELECTION GUIDE FOR STANDARD COILS

TYPE 10RHT2 Covered with Heat Shrunk Cover

熱収縮チューブカバー付

東光品番

TOKO

Part

Number

#A830LY-100K=R

#A830LY-120K=R

#A830LY-150K=R

#A830LY-180K=R

#A830LY-220K=R

#A830LY-270K=R

#A830LY-330K=R

#A830LY-390K=R

#A830LY-470K=R

#A830LY-560K=R

#A830LY-680K=R

#A830LY-820K=R

#A830LY-101K=R

#A830LY-121K=R

#A830LY-151K=R

#A830LY-181K=R

#A830LY-221K=R

#A830LY-271K=R

#A830LY-331K=R

#A830LY-391K=R

#A830LY-471K=R

#A830LY-561K=R

#A830LY-681K=R

#A830LY-821K=R

#A830LY-102K=R

インダクタンス

Inductance

L (μH)

100

120

150

180

220

270

330

390

470

560

680

820

1000

(1)

(Unit: mm)

許容差

Tolerance

(%)

直流抵抗

(4)

Resistance

(Ω) Max.

0.052

0.059

0.065

0.071

0.076

0.082

0.086

0.095

0.11

0.12

0.13

0.14

0.18

0.19

0.22

0.25

0.28

0.46

0.50

0.56

0.62

0.69

0.79

0.86

1.60

最大許容電流

Rated DC

(2)

Current

(A) Max.

2.20

2.00

1.93

1.77

1.72

1.56

1.49

1.40

1.29

1.25

1.24

1.04

1.02

0.94

0.92

0.85

0.82

0.60

0.56

0.52

0.48

0.45

0.44

0.40

0.31

自己共振周波数

Self-resonant

(3) (5)

Frequency

(MHz) Min.

8.3

5.9

4.9

4.1

4.0

3.9

3.6

2.8

2.6

2.2

2.1

1.9

1.6

1.5

1.4

1.3

1.2

1.1

1.0

0.87

(3)(5)

continued on next page

次頁へ続く
