DBMV15P832NLF

Description
D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, LEAD FREE
CategoryThe connector    The connector
File Size120KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

DBMV15P832NLF Overview

D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, LEAD FREE

DBMV15P832NLF Parametric

Parameter NameAttribute value
package instructionLEAD FREE
Reach Compliance Codecompliant
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationGOLD (50) OVER NICKEL
Contact completed and terminatedGOLD (50) OVER NICKEL
Contact point genderMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialPOLYETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberDM
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceCADMIUM
Shell materialSTEEL
Housing size2/A
Termination typeSOLDER
Total number of contacts15
UL Flammability Code94V-0
Base Number Matches1

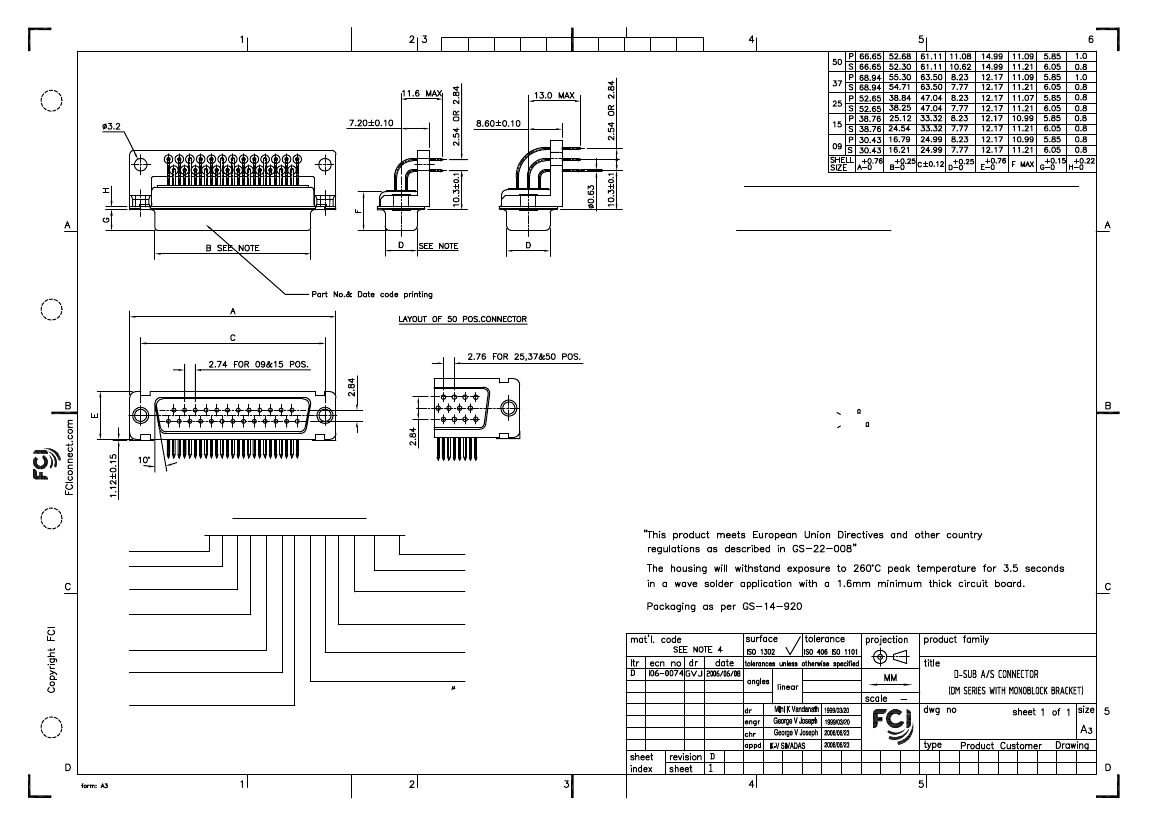

NOTE:-INSIDE DIMENSIONS OF MALE AND OUTSIDE DIMENSIONS OF THE FEMALE CONNECTOR.
TECHNICAL SPECIFICATIONS
SHELLS
INSULATOR MATERIAL
:
:
CADMIUM PLATED STEEL
SELF EXTINGUISHING THERMOPLASTIC-
TO UL CLASS 94 V0
THE HOUSING WILL WITHSTAND EXPOSURE TO 260-265°C
IF WE USE PROTECTIVE ADHESIVE (type Kapton or Teflon)
OR PROTECTIVE METALLIC DEVICE
CONTACTS DIA ON ACTIVE AREA
CONTACTS MATERIAL
CONTACT PLATING
OPERATING TEMPERATURE
OPERATING CURRENT
CONTACT RESISTANCE
INSULATION RESISTANCE
MAXIMUM VOLTAGE
MECHANICAL ENDURANCE
DAMP HEAT
:
:
:
:
:
:
:
:
:
:
Ø1 MM.
COPPER ALLOY
GOLD OVER NICKEL
-55°C +125°C
7.5 A PER CONTACT
<7.3m
>5000 M
1000 V.r.m.s
500 MATINGS
56 DAYS
ORDERING INFORMATION
D B M V 25 P 8 32
SERIES
SHELL SIZE
E,A,B,C,D
N XXX LF
LEAD FREE
SPECIAL CODES
OBLIGATORY
N - FOR DM MIL
CHARECTERISATION
M-DM SERIES
OPTIONS
V-FEM. SCREW LOCK HEX. (UNC)
N-THREADED FEM. SCREW LOCK M3
SHELL PLATING
BLANK- CADMIUM
NO.OF CONTACTS
09,15,25,37,50
OPTIONS
BLANK-STANDARD
CONTACTS
P - PIN
S - SOCKET
CONTACT PLATING
32 - 1.27 Au
TERMINATION TYPE
5-ANGLED SPILL 2.54mm BETWEEN ROWS
8-ANGLED SPILL 2.84mm BETWEEN ROWS
C-DSUB-0122
6
PDM: Rev:D
STATUS:
Released
Printed: Jan 23, 2008
.
