JM38510/31301BDA datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> JM38510/31301BDA

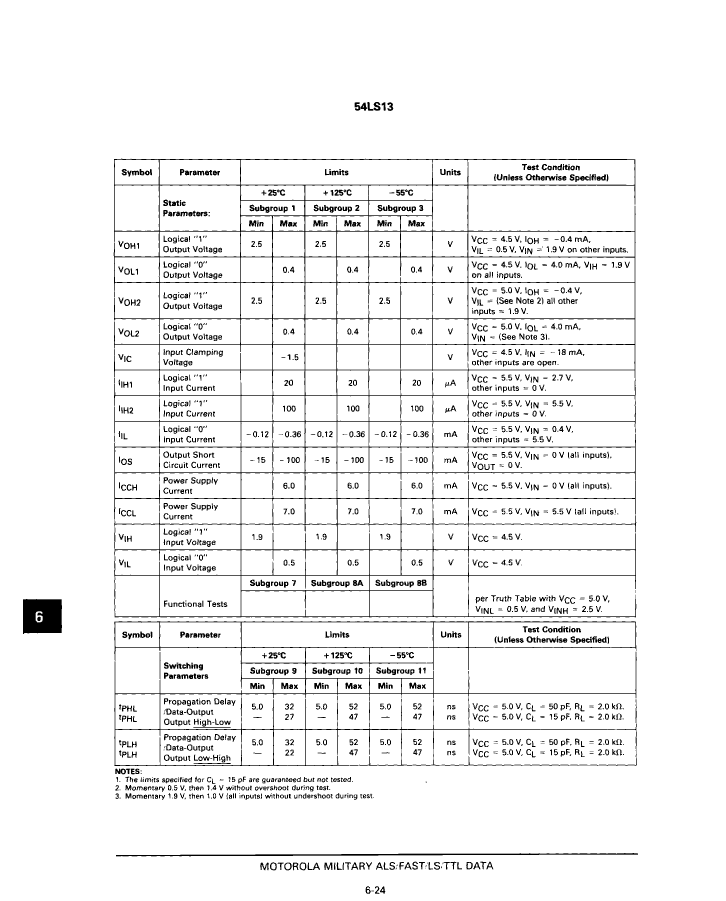

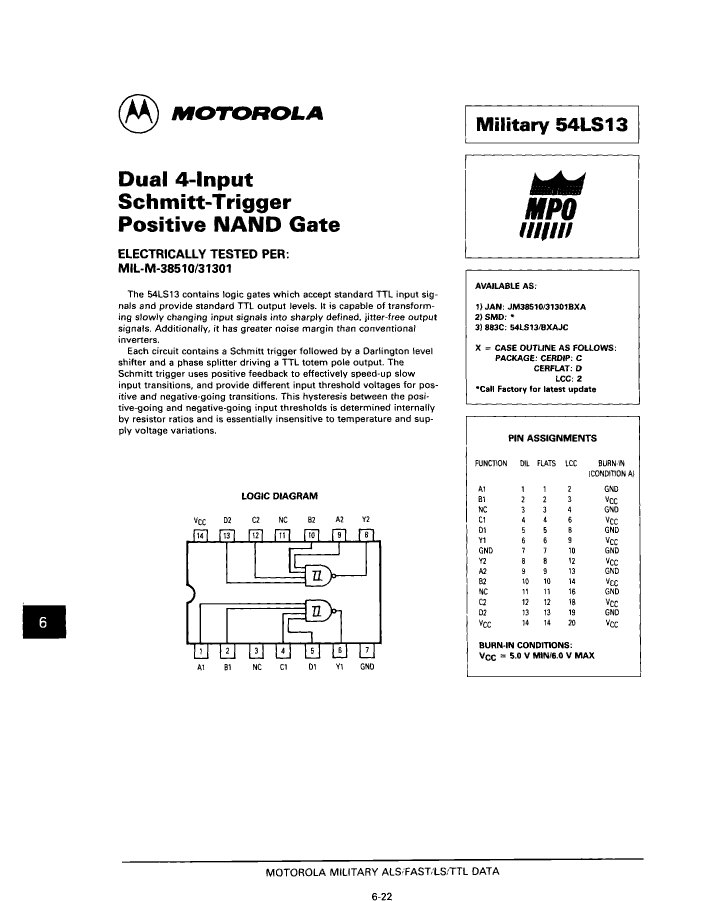

Preview

JM38510/31301BDA: DescriptionNAND Gate, LS Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14; Categorylogic logic; File Size67KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

JM38510/31301BDA Overview

NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14

JM38510/31301BDA Parametric

Parameter Name	Attribute value
package instruction	DFP,
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-GDFP-F14
length	9.65 mm
Logic integrated circuit type	NAND GATE
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	52 ns
Certification status	Not Qualified
Maximum seat height	2.15 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.415 mm
Base Number Matches	1

Preview

Download Datasheet

View All

JM38510/31301BDA Related Products

	JM38510/31301BDA	54LS13/B2AJC	JM38510/31301BCA	JM38510/31301B2A
Description	NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14	LS SERIES, DUAL 4-INPUT NAND GATE, CQCC20, CERAMIC, LCC-20	LS SERIES, DUAL 4-INPUT NAND GATE, CDIP14, CERDIP-14	LS SERIES, DUAL 4-INPUT NAND GATE, CQCC20, CERAMIC, LCC-20
package instruction	DFP,	QCCN, LCC20,.35SQ	DIP,	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown
series	LS	LS	LS	LS
JESD-30 code	R-GDFP-F14	S-CQCC-N20	R-GDIP-T14	S-CQCC-N20
length	9.65 mm	8.885 mm	19.495 mm	8.885 mm
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Number of functions	2	2	2	2
Number of entries	4	4	4	4
Number of terminals	14	20	14	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	QCCN	DIP	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	FLATPACK	CHIP CARRIER	IN-LINE	CHIP CARRIER
propagation delay (tpd)	52 ns	52 ns	52 ns	52 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.15 mm	1.9 mm	5.08 mm	1.9 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	QUAD
width	6.415 mm	8.885 mm	7.62 mm	8.885 mm
Parts packaging code	-	QLCC	DIP	QLCC
Contacts	-	20	14	20
