SHP5-05S3V3-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> SHP5-05S3V3-4

SHP5-05S3V3-4: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, DIP-6; CategoryPower/power management The power supply circuit; File Size39KB，3 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

SHP5-05S3V3-4 Overview

DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, DIP-6

SHP5-05S3V3-4 Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	,
Contacts	6
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	9 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-MDMA-P6
Number of functions	1
Output times	1
Number of terminals	6
Maximum operating temperature	50 °C
Minimum operating temperature	-40 °C
Maximum output voltage	3.366 V
Minimum output voltage	3.234 V
Nominal output voltage	3.3 V
Package body material	METAL
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	3 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

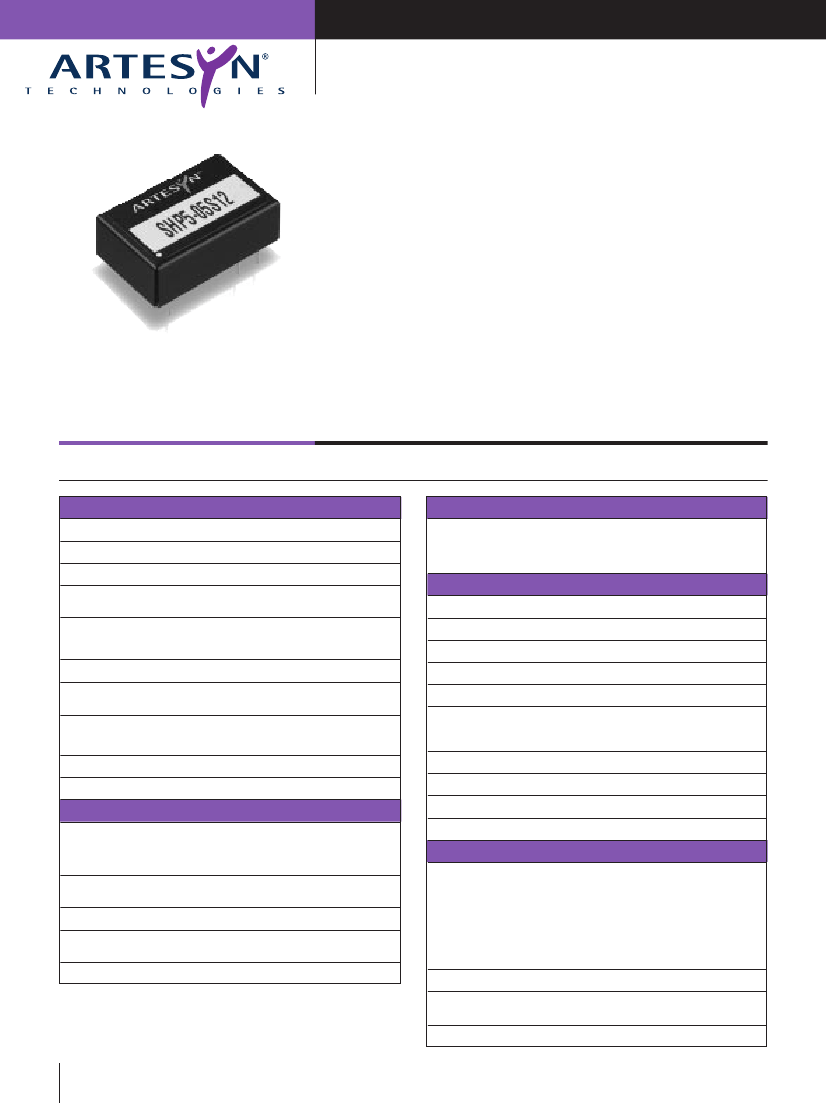

SHP5 SERIES

Single and dual output

•

3 to 5 Watts in DIL package

32 models including 2.1V and 3.3V outputs

Wide input ranges 4.5-9V, 9-18V, 18-36V and 36-72V

EN55022 conducted emissions level B

Operating temperature range -25°C to +50°C

Input voltage range to ETS300-132-2

The SHP5 Series of DC/DC converters is designed to offer the optimum cost/benefit

power solution for a wide variety of applications including public and private

telecommunications, industrial systems and process and test equipment. The series

consists of 32 models in a DIL package with input voltages of 4.5-9VDC, 9-18VDC, 18-

36VDC and 36-72VDC. The SHP5 offers standard 5V, 12V and 15V in single and dual

outputs. 2.1V and 3.3V single outputs are also available suitable for low voltage logic

applications. Optional filtering to EN55022 level B conducted emissions and low output

ripple minimize design-in time, cost and eliminate the need for external components.

[ 2 YEAR WARRANTY ]

SPECIFICATION

OUTPUT SPECIFICATIONS

Voltage accuracy

Line regulation

Load regulation

Cross regulation

Minimum load

All specifications are typical at nominal input, full load at 25°C unless otherwise stated

EMC CHARACTERISTICS

±2.0%

Conducted emissions

Radiated emissions

EN55022, EN55011, FCC

Suffix ‘-F’ versions,

See Note 1

EN55022

Level B

LL to HL, all outputs

Min. load to full load

Asymmetrical load

25% / 100% FL

2.1V, 3.3V, 5V

Single 12V, 15V

Dual

At start-up

20MHz bandwidth

25% load step

±0.1%

±0.3%

GENERAL SPECIFICATIONS

4.0% max.

Efficiency

50mA max.

80mA max.

3.0% max.

1.0% pk-pk, max.

75mV rms

±10% max. dev.,

1ms recovery

to within ±1.0%

±0.02%/°C

1 minute

Automatic recovery

Isolation voltage

Isolation resistance

Isolation capacitance

Switching frequency

Approvals and

standards (pending)

Case material

Material flammability

Weight

4.5 to 9VDC

9 to 18VDC

18 to 36VDC

36 to 72VDC

Common mode

and Pi type

See table

Single output

Dual and triple outputs

20mA

5ms

Relative humidity

Altitude

Vibration

MTBF

MIL-HDBK-217F

Input/output

Fixed

Safety

78% typ.

500VDC

Ω

1nF

200 to 250kHz

VDE0805, EN60950

IEC950, UL1950

CSA C22.2 No. 950

Black coated, metal case

UL94V-0

16g (0.56oz)

250,000 hours

Overshoot

Ripple and noise

Transient response

Temperature coefficient

Short circuit protection

INPUT SPECIFICATIONS

Input voltage range

5VDC nominal, FL

12VDC nominal, FL

24VDC nominal, FL

48VDC nominal, FL

Suffix ‘-F’

See Note 1

ENVIRONMENTAL SPECIFICATIONS

Thermal performance

Operating ambient

-25°C to +50°C

(See derating curve)

Extended temp.,

-40°C to +50°C

option, See Note 3

Non-operating amb.

-25°C to +95°C

Case

+95°C max.

Derating

See derating curve

Cooling

Free air convection

cooled

Non-condensing

Operating

Non operating

5Hz to 500Hz

30% to 95%

10,000 feet max.

40,000 feet max.

2.5G rms (approx.)

Input filter

Input current

Input reflected ripple

Start-up time

PAGE 1
