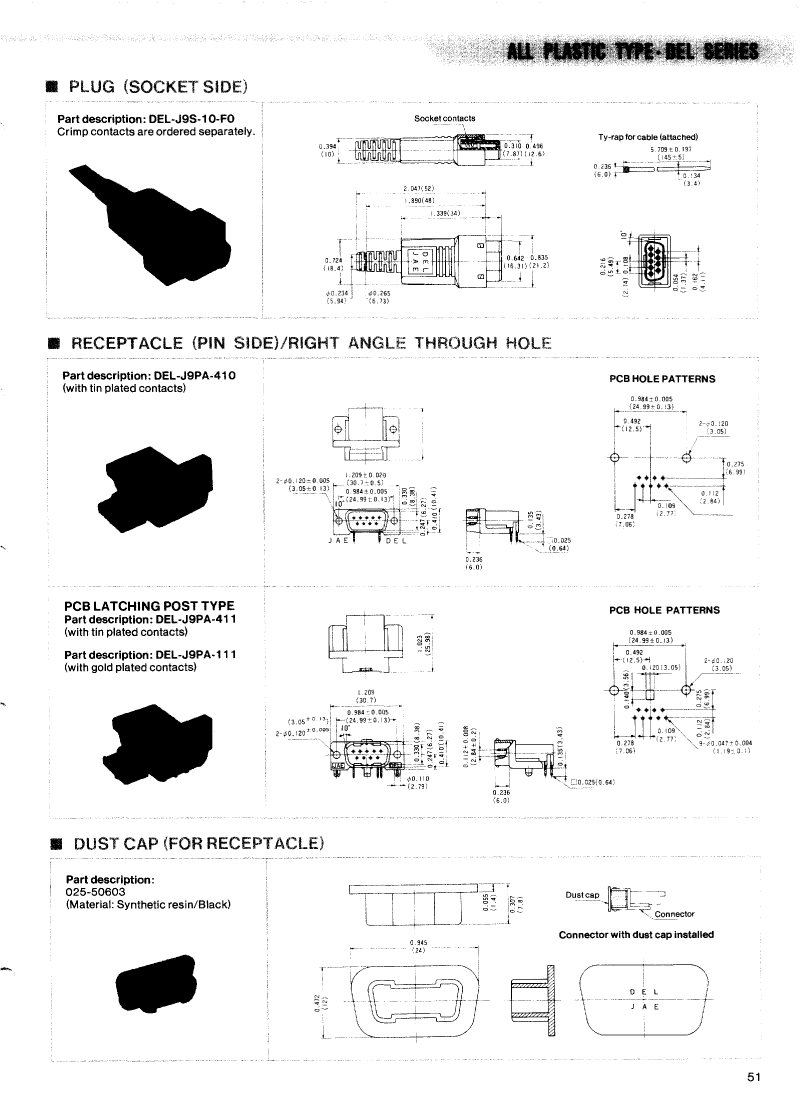

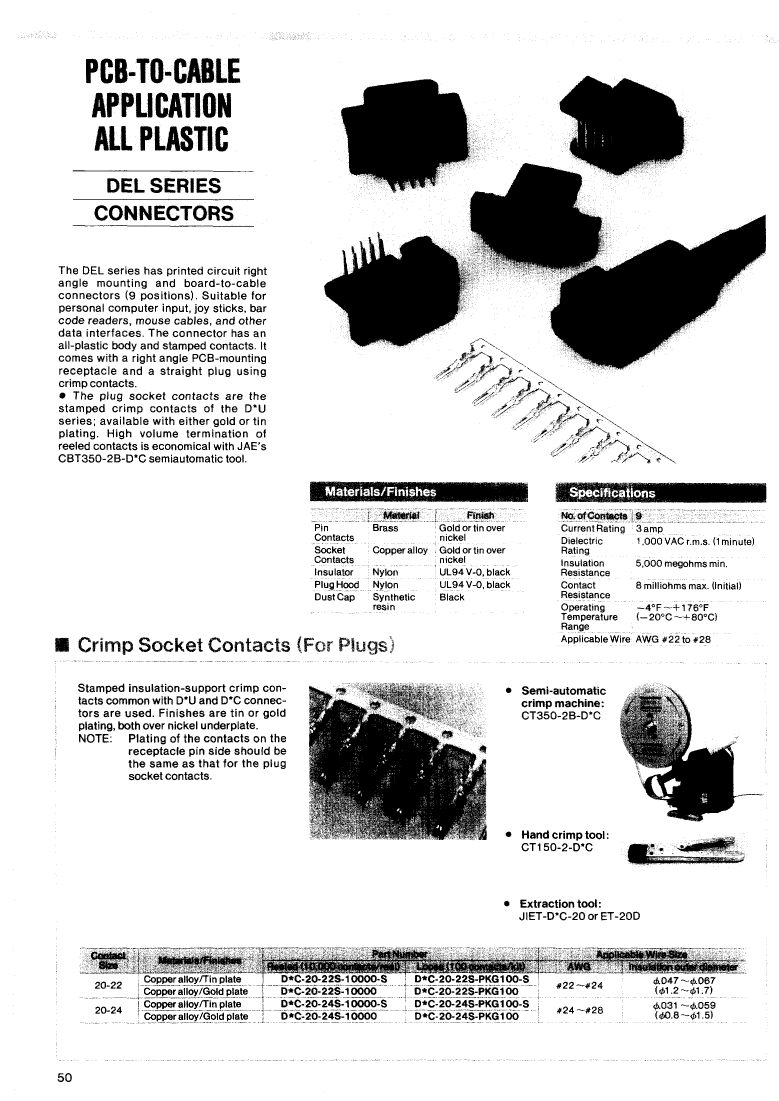

D Subminiature Connector, 9 Contact(s), Female, 0.108 inch Pitch, Crimp Terminal, Plug
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| body width | 0.496 inch |
| subject depth | 1.339 inch |
| body length | 0.835 inch |
| Body/casing type | PLUG |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contactor design | STAMPED, PREASSEM |
| Contact to complete cooperation | AU |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | STAGGERED |
| Contact resistance | 8 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| empty shell | YES |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYAMIDE |
| MIL compliance | NO |
| Manufacturer's serial number | DEL |
| Plug contact pitch | 0.108 inch |
| Mixed contacts | NO |
| Installation type | CABLE |
| Number of rows loaded | 2 |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -20 °C |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | MIL-C-24308 |
| Shell material | PLASTIC |
| Housing size | 1/E |
| Termination type | CRIMP |
| Total number of contacts | 9 |
| UL Flammability Code | 94V-0 |
| Maximum wire diameter | 22 AWG |
| Minimum wire diameter | 28 AWG |
| Base Number Matches | 1 |
| DEL-J9S-10-FO | DEL-J9PA-111 | DEL-J9PA-410 | DEL-J9PA-411 | |
|---|---|---|---|---|
| Description | D Subminiature Connector, 9 Contact(s), Female, 0.108 inch Pitch, Crimp Terminal, Plug | D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle | D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle | D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| body length | 0.835 inch | 1.209 inch | 1.209 inch | 1.209 inch |
| Body/casing type | PLUG | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | AU | AU ON NI | SN ON NI | SN ON NI |
| Contact point gender | FEMALE | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | BRASS | BRASS | BRASS |
| contact mode | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 8 mΩ | 8 mΩ | 8 mΩ | 8 mΩ |
| Contact style | RND PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V |
| empty shell | YES | NO | NO | NO |
| Filter function | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK |
| insulator material | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE |
| MIL compliance | NO | NO | NO | NO |
| Manufacturer's serial number | DEL | DEL | DEL | DEL |
| Plug contact pitch | 0.108 inch | 0.108 inch | 0.108 inch | 0.108 inch |
| Mixed contacts | NO | NO | NO | NO |
| Installation type | CABLE | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 80 °C | 80 °C | 80 °C | 80 °C |
| Minimum operating temperature | -20 °C | -20 °C | -20 °C | -20 °C |
| Rated current (signal) | 3 A | 3 A | 3 A | 3 A |
| Guideline | UL | UL | UL | UL |
| reliability | MIL-C-24308 | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell material | PLASTIC | PLASTIC | PLASTIC | PLASTIC |
| Housing size | 1/E | 1/E | 1/E | 1/E |
| Termination type | CRIMP | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 9 | 9 | 9 | 9 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 |
| Match contact row spacing | - | 0.112 inch | 0.112 inch | 0.112 inch |
| Installation option 1 | - | HOLE .112-.124 | HOLE .112-.124 | HOLE .112-.124 |
| Installation method | - | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| PCB row number | - | 2 | 2 | 2 |
| PCB contact pattern | - | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | - | 2.8448 mm | 2.8448 mm | 2.8448 mm |
| Terminal length | - | 0.135 inch | 0.135 inch | 0.135 inch |
| Terminal pitch | - | 2.7686 mm | 2.7686 mm | 2.7686 mm |
