D2HW-C203MRS Overview

Miniature Basic Switch

D2HW-C203MRS Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Factory Lead Time11 weeks 1 day
Switch typeSNAP ACTING/LIMIT SWITCH
Base Number Matches1

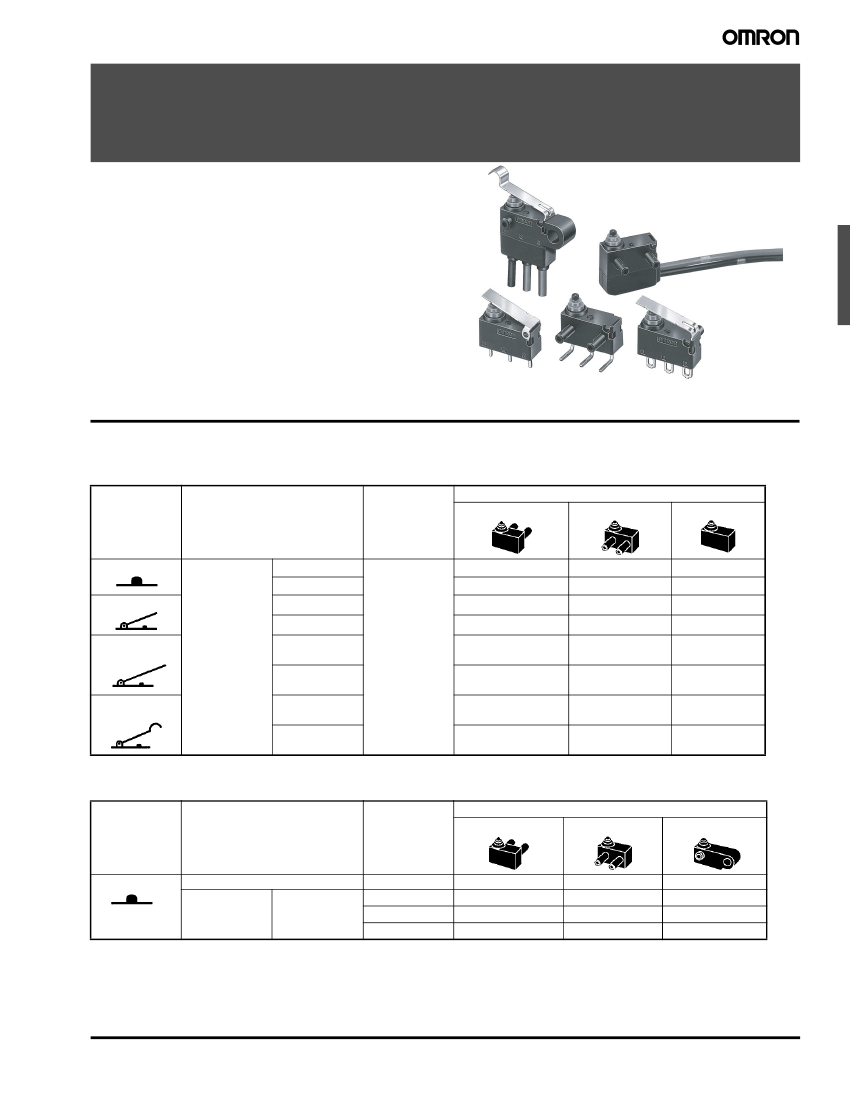

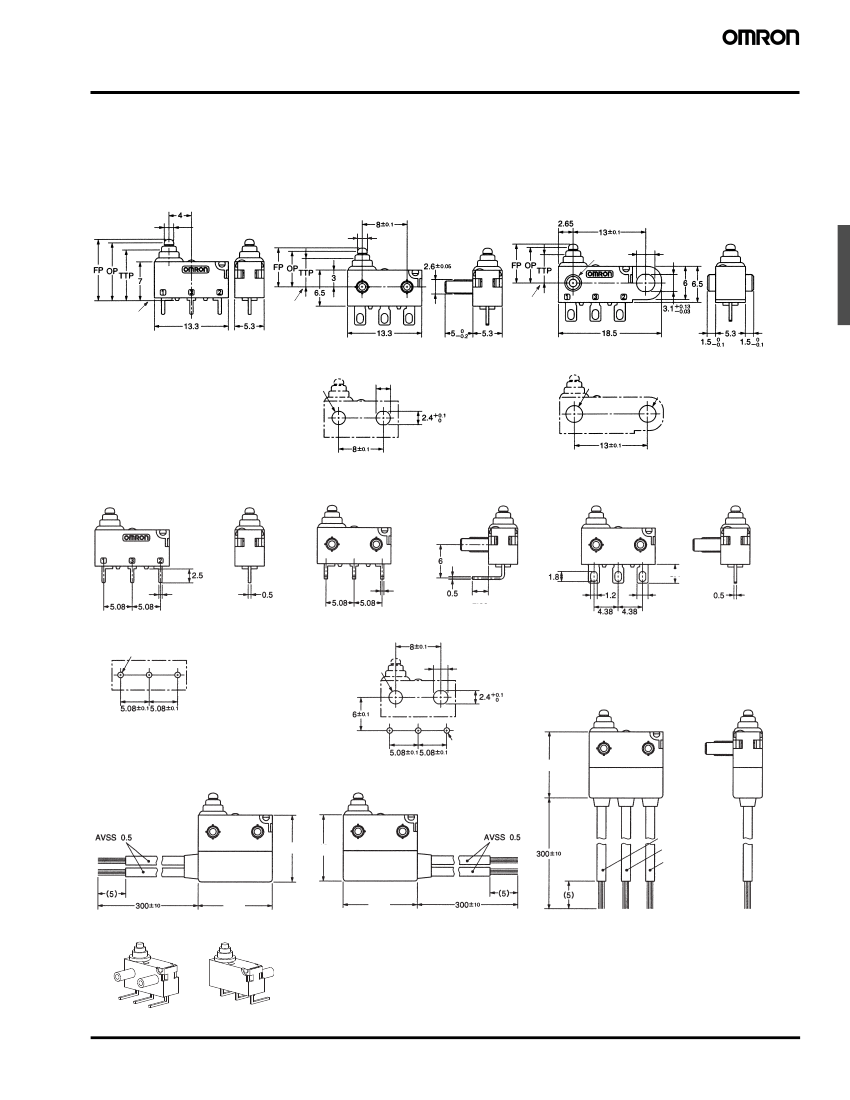

Sealed Subminiature Snap Action Switch
D2HW
Smallest Sealed Snap-Action Switch in
the Industry With a Long Stroke For
Reliable ON/OFF Action
• Conforms to IP67
• Case dimensions 22% smaller than conventional models
• Extra-long stroke even without levers
(OT: 1.4 mm)
• All models are lead-free, including lead wire models
• RoHS Compliant
Ordering Information
Add “S” to the end of the model number for the UL/CSA-approved version. Consult your OMRON sales representative for details.
PCB-Mounted Models
Actuator
Terminals
Contact form
Model
With posts on right
With posts on left
Without posts
Pin plunger
Hinge lever
For PCB
Straight
Angled
Straight
Angled
SPDT
---
D2HW-BR201DR
---
D2HW-BR211DR
---
D2HW-BR221DR
---
D2HW-BR231DR
---
D2HW-BL201DL
---
D2HW-BL211DL
---
D2HW-BL221DL
---
D2HW-BL231DL
D2HW-A201D
---
D2HW-A211D
---
D2HW-A221D
---
D2HW-A231D
---
Long hinge
lever
Straight
Angled
Simulated roller
lever
Straight
Angled
Models with Solder Terminals or Lead Wire Terminals
Actuator
Terminals
Contact form
Model
With posts on right
With posts on left
M3-screw mounting
Pin plunger
Solder
Lead wire
Downwards
SPDT
SPDT
SPST-NC
SPST-NO
D2HW-BR201H
D2HW-BR201M
D2HW-BR202M
D2HW-BR203M
D2HW-BL201H
D2HW-BL201M
D2HW-BL202M
D2HW-BL203M
D2HW-C201H
D2HW-C201M
D2HW-C202M
D2HW-C203M
(This table continues on the next page.)
Sealed Subminiature Snap Action Switch
D2HW
181
