D25S91C8GL00 datasheet, PDF - EEWORLD Datasheet

D25S91C8GL00: DescriptionD Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D25S91C8GL00 Overview

D Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (49)
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	PRESS FIT
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

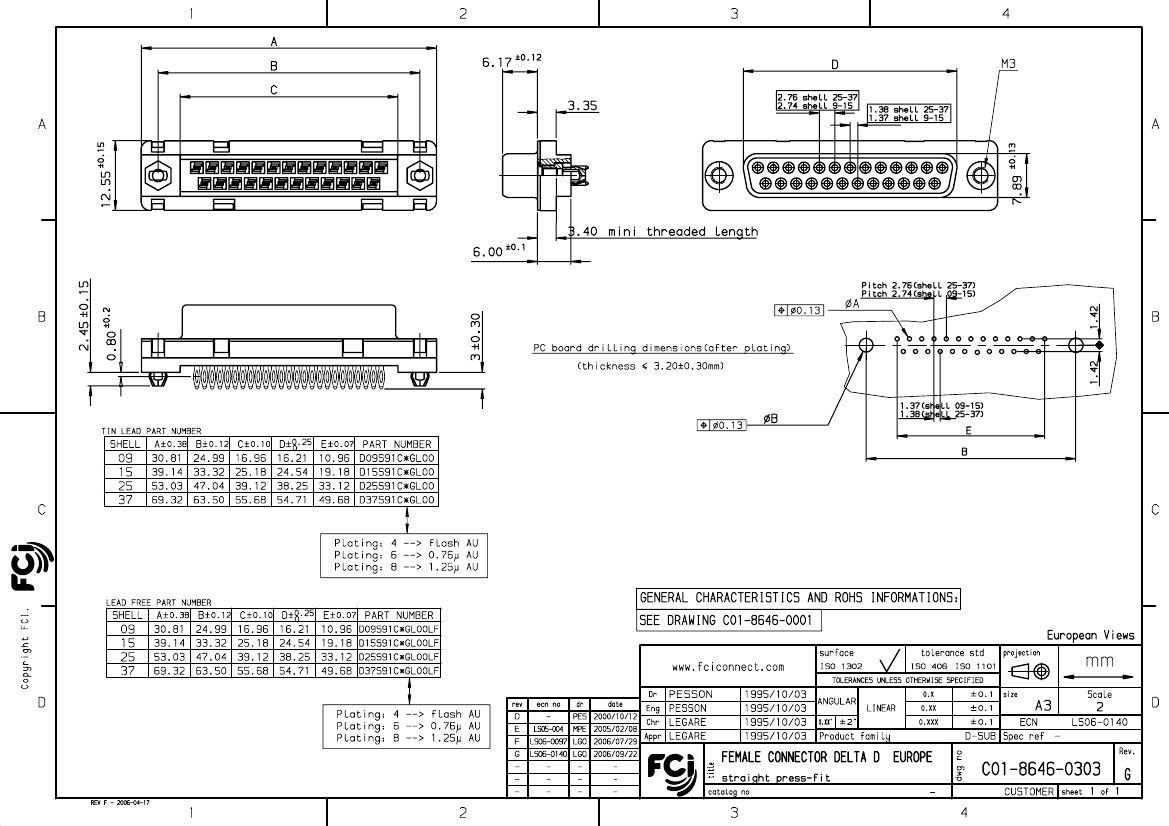

PDM: Rev:G

STATUS:

Released

Printed: Jan 18, 2011

	D25S91C8GL00	D15S91C8GL00	D37S91C8GL00	D09S91C8GL00LF	D09S91C8GL00
Description	D Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal,	D Subminiature Connector, 37 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal, LEAD FREE	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (49)	GOLD (49)	GOLD (49)	GOLD (49)	GOLD (49)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	3/B	2/A	4/C	1/E	1/E
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	25	15	37	9	9
Contact completed and terminated	TIN LEAD	TIN LEAD	TIN LEAD	-	TIN LEAD
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	-	POLYETHYLENE
JESD-609 code	e0	e0	e0	-	e0
Shell surface	TIN	TIN	TIN	-	TIN
Shell material	STEEL	STEEL	STEEL	-	STEEL
UL Flammability Code	94V-0	94V-0	94V-0	-	94V-0
