DTC143TCA: DescriptionNPN Bipolar Digital Transistor; Polarity: NPN; V(BR)CEO Min (V): 50V; IC Continuous (mA): 100mA; GI: 100; VO(ON) (V): 0.3V; FT (MHz): 250+ MHz; R1 (KΩ): 4.7K Ohm; R2 (KΩ): 0 Ohm; R1/R2 Typ: -; VI(OFF) Max (V): 0.5V; VI(ON) Min (V): 3V; PTOT (mW): 200mW; Package: SOT-23; CategoryDiscrete semiconductor The transistor; File Size188KB，3 Pages; ManufacturerGalaxy Microelectronics; Environmental Compliance

Download Datasheet Parametric Compare View All

DTC143TCA Overview

NPN Bipolar Digital Transistor; Polarity: NPN; V(BR)CEO Min (V): 50V; IC Continuous (mA): 100mA; GI: 100; VO(ON) (V): 0.3V; FT (MHz): 250+ MHz; R1 (KΩ): 4.7K Ohm; R2 (KΩ): 0 Ohm; R1/R2 Typ: -; VI(OFF) Max (V): 0.5V; VI(ON) Min (V): 3V; PTOT (mW): 200mW; Package: SOT-23

DTC143TCA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	0.1 A
Minimum DC current gain (hFE)	100
Number of components	1
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.2 W
surface mount	YES
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

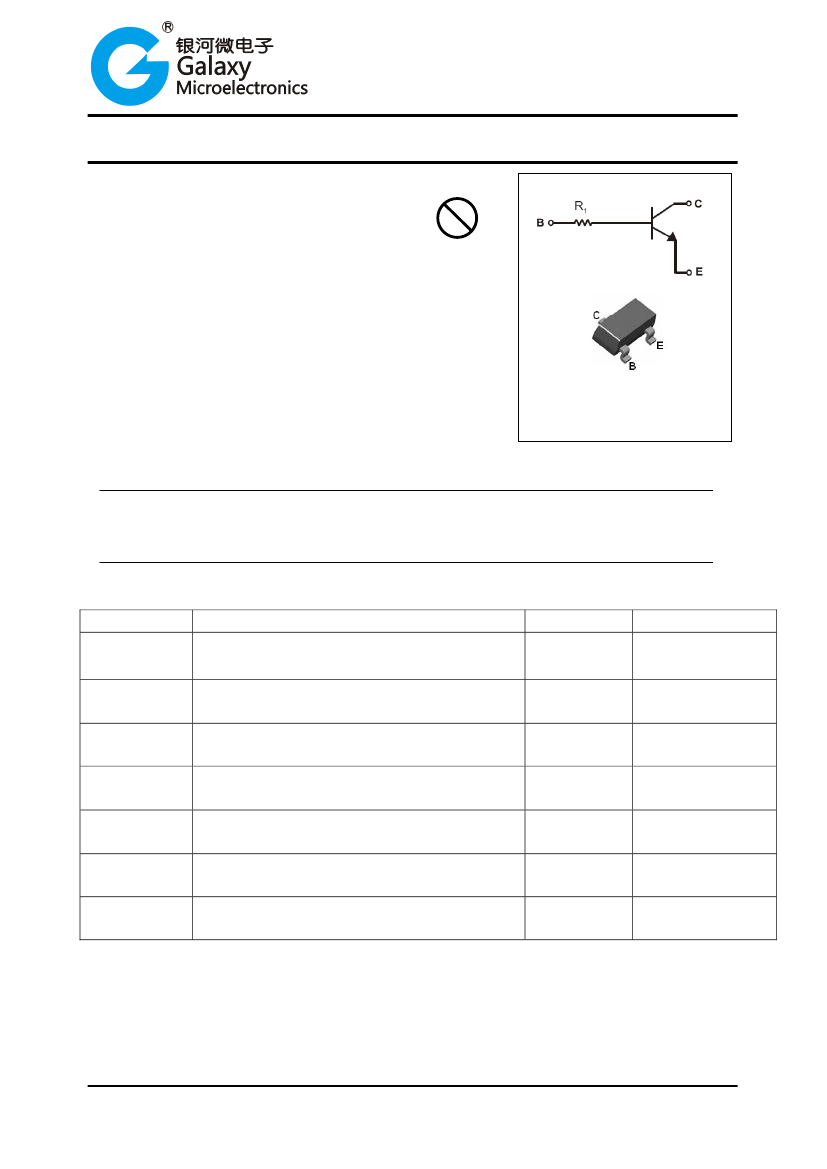

Production specification

Digital Transistor

FEATURES



Epitaxial planar die construction.

Complementary PNP types available(DTA).

Built-in biasing resistor,R

1

only.

Also available in lead free version.

DTC(R

1

-only SERIES)CA

Pb

Lead-free

APPLICATIONS



The NPN style digital transistor.

SOT-23

ORDERING INFORMATION

Type No.

DTC114TCA

DTC143TCA

DTC144TCA

Marking

04

03

06

Package Code

SOT-23

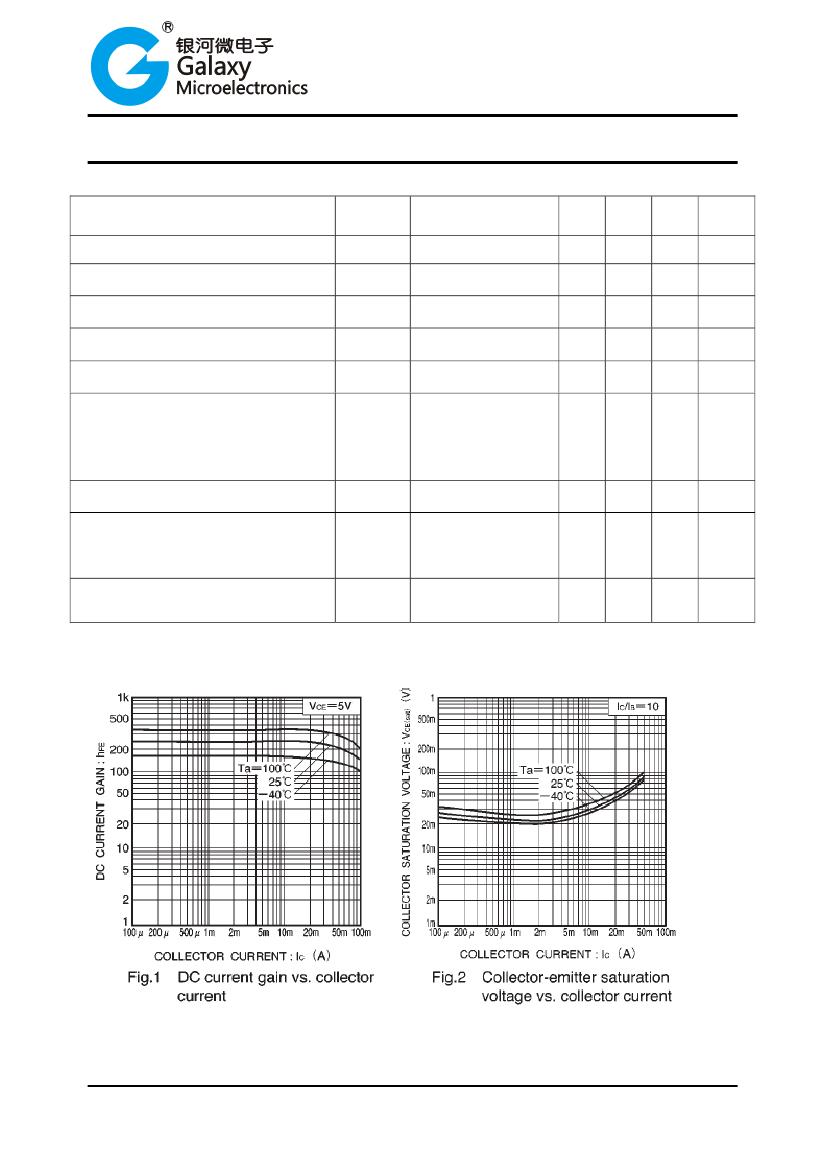

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Symbol

V

CBO

V

CEO

V

EBO

I

C

(Max.)

P

D

R

θJA

T

j

,T

stg

Parameter

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Collector Current

Power Dissipation

Thermal Resistance, Junction to Ambient Air

Operating and Storage and Temperature Range

Value

50

5

100

200

625

-55 to +150

Units

V

mA

mW

℃/W

℃

C129

Rev.B

www.gmesemi.com

1

DTC143TCA Related Products

	DTC143TCA	DTC114TCA	DTC144TCA
Description	NPN Bipolar Digital Transistor; Polarity: NPN; V(BR)CEO Min (V): 50V; IC Continuous (mA): 100mA; GI: 100; VO(ON) (V): 0.3V; FT (MHz): 250+ MHz; R1 (KΩ): 4.7K Ohm; R2 (KΩ): 0 Ohm; R1/R2 Typ: -; VI(OFF) Max (V): 0.5V; VI(ON) Min (V): 3V; PTOT (mW): 200mW; Package: SOT-23	50V,100mA,NPN Bipolar Digital Transistor, Diodes, NPN, 50V, 100mA, 0.1V, 250(typ), 10kΩ	50V,100mA,NPN Bipolar Digital Transistor, Diodes, NPN, 50V, 100mA, 0.1V, 250(typ), 47kΩ
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A
Minimum DC current gain (hFE)	100	100	100
Number of components	1	1	1
Polarity/channel type	NPN	NPN	NPN
Maximum power dissipation(Abs)	0.2 W	0.2 W	0.2 W
surface mount	YES	YES	YES
Transistor component materials	SILICON	SILICON	SILICON
Maker	-	Galaxy Microelectronics	Galaxy Microelectronics
polarity	-	NPN	NPN
V(BR)CEO (V) min.	-	50	50
IC Continuous (mA)	-	100	100
VO(ON) (V)	-	0.1	0.1
fT MHz	-	250(typ)	250(typ)
R1 (kΩ)	-	10	47
Vi(off) (V) max.	-	0.5	0.3
Vi(on) (V) min.	-	3	1.4
PD (mW)	-	200	200
AEC Qualified	-	No	No
Maximum operating temperature	-	150	150
Minimum operating temperature	-	-55	-55
MSL level	-	1	1
Is it lead-free?	-	Yes	Yes
Comply with Reach	-	Yes	Yes
RoHS compliant	-	Yes	Yes
ECCN code	-	EAR99	EAR99
Package Outlines	-	SOT-23	SOT-23
