BJ376HS datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BJ376HS

Preview

BJ376HS: DescriptionCONNECTOR, BOARD TERMINATED, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, JACK; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

BJ376HS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BJ376HS	-	-	View	Buy Now

BJ376HS Overview

CONNECTOR, BOARD TERMINATED, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, JACK

BJ376HS Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-49142, LEAKAGE RATE:1X10-6 ATM CC/SEC
Body/casing type	JACK
Connector type	RF TRIAXIAL-BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	370
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	0.5 GHz
Options	HERMETIC
Panel mounting	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

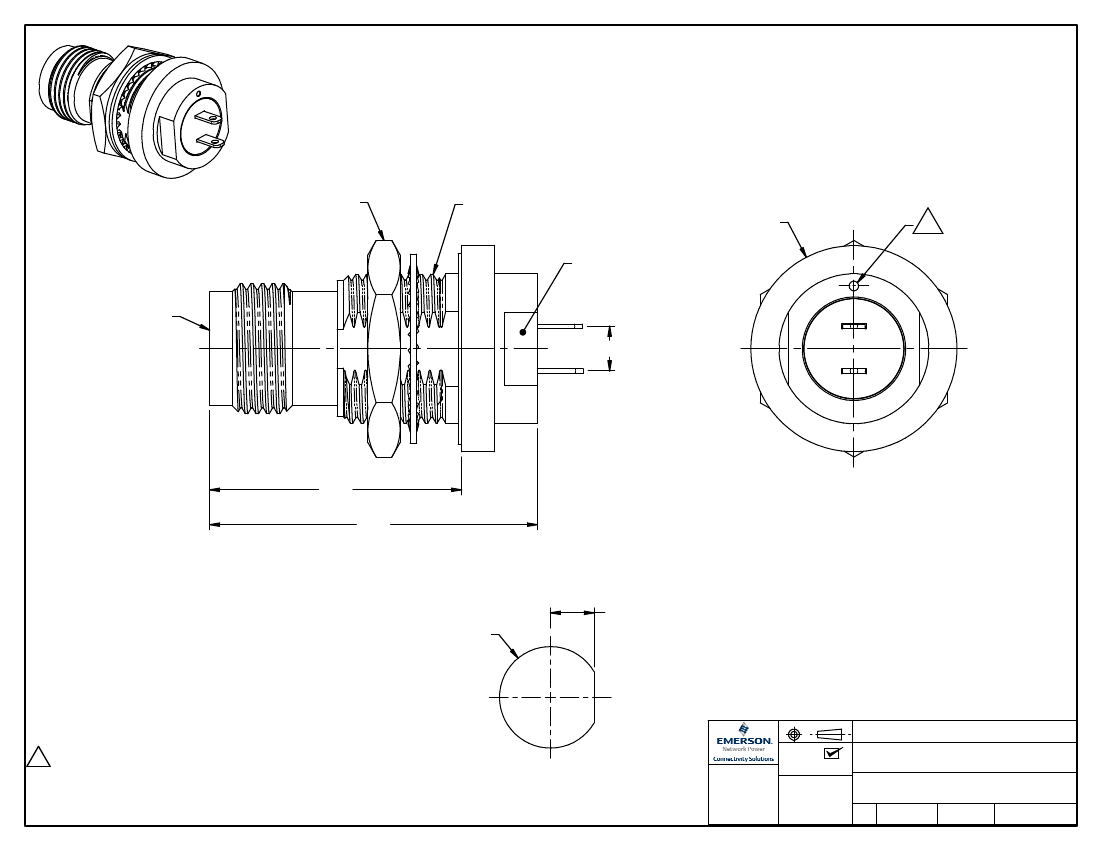

5/8 HEX NUT

1/2-28 UNEF-2A

O

.687

7/16 WRENCH

FLATS

INTERFACE PER

MIL-STD-348

FIGURE 202-2

4

.15

.840

1.09

NOTES: UNLESS OTHERWISE SPECIFIED.

1. FINISH: PASSIVATED STAINLESS STEEL.

2. MAX PANEL THICKNESS: .160

3. CONCENTRIC TWINAX/TRIAX BULKHEAD MOUNT

RECEPTACLE.

4. DIMPLE INDICATES CENTER CONTACT TAB.

5. LEAKAGE RATE: 1 X 10^-8 ATM CC/SEC MAXIMUM

OF INERT GAS (HELIUM) IAW MIL-STD-1344, REV A,

METHOD 1008, TEMP. RANGE -45.6

v

C TO +71

v

C.

O

.510

.505

.221

.218

3RD ANGLE PROJECTION

Trompeter

Title:

RoHS

RECOMMENDED

PANEL CUTOUT

This PROPRIETARY Document

is property of Emerson Network

Power Connectivity Solutions.

It is confidential in nature,

non-transferable, and issued with

the clear understanding that it is

not traced or copied without

permission and is returnable

upon demand.

2002/95/EC

UNLESS OTHERWISE SPECIFIED

UNITS: INCH

BJ376HS

Model No.

INTERPRET DRAWING IN

ACCORDANCE WITH ASME

Y14.5-2009.

.XX

u

.03

.XXX

u

.005

ANGLES

u

1

v

BJ376HS

Sheet 1 of 1

Size

A

DO NOT SCALE

Date:

1/31/2013

DRAWING
