HS16-4N: DescriptionRotary Switch, 11 Positions, Circular, Quick Connect Terminal, Rotary Shaft Actuator, Panel Mount,; CategoryMechanical and electronic products switch; File Size500KB，5 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric Compare View All

HS16-4N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HS16-4N	-	-	View	Buy Now

HS16-4N Overview

Rotary Switch, 11 Positions, Circular, Quick Connect Terminal, Rotary Shaft Actuator, Panel Mount,

HS16-4N Parametric

Parameter Name	Attribute value
Brand Name	NKK Switches
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Executor completed	NICKEL
Actuator length	0.591 inch
Actuator material	BRASS
Actuator type	ROTARY SHAFT
body height	74.4982 mm
Casing type	M10P0.75
center contact material	PHOSPHOR BRONZE
Contact (AC) maximum rated R load	6A@250VAC
Maximum contact current (AC)	6 A
Contact resistance	0.01 mΩ
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1500VAC V
Electrical life	7500 Cycle(s)
End contact material	BRASS
End contact plating	SILVER
Graduation angle	30 deg
Insulation resistance	200000000 Ω
insulator material	PHENOLIC
Manufacturer's serial number	HS
Installation features	PANEL MOUNT
Number of positions	2 THRU 11
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Solderability	HAND
surface mount	NO
Switch action	CIRCULAR
Switch type	ROTARY SWITCH
Terminal material	PHOSPHOR BRONZE
Termination type	QUICK CONNECT
Base Number Matches	1

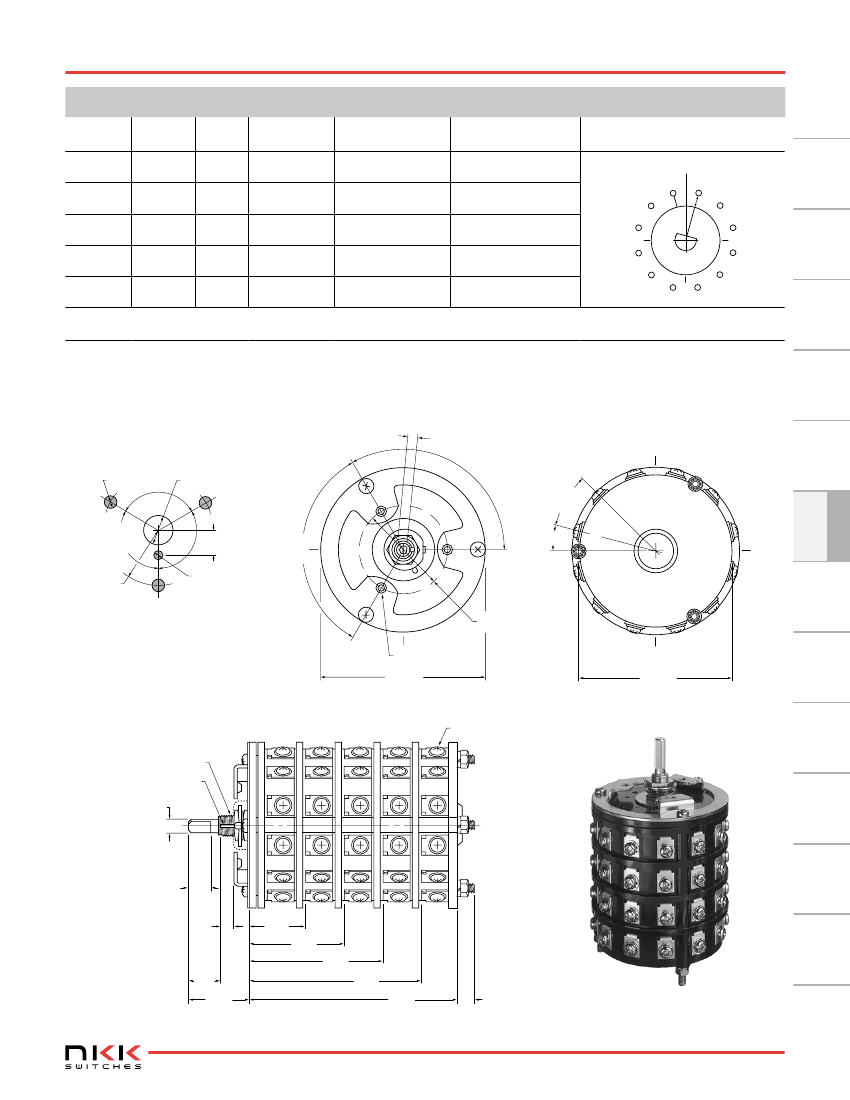

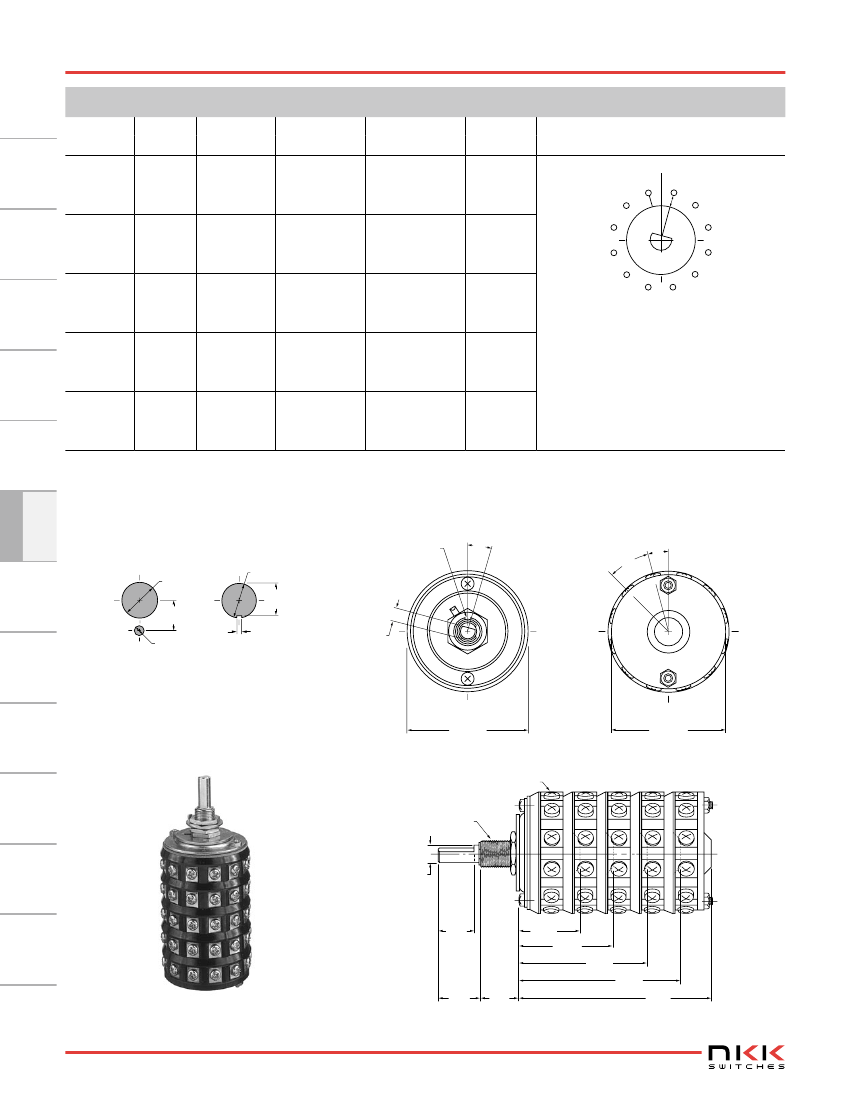

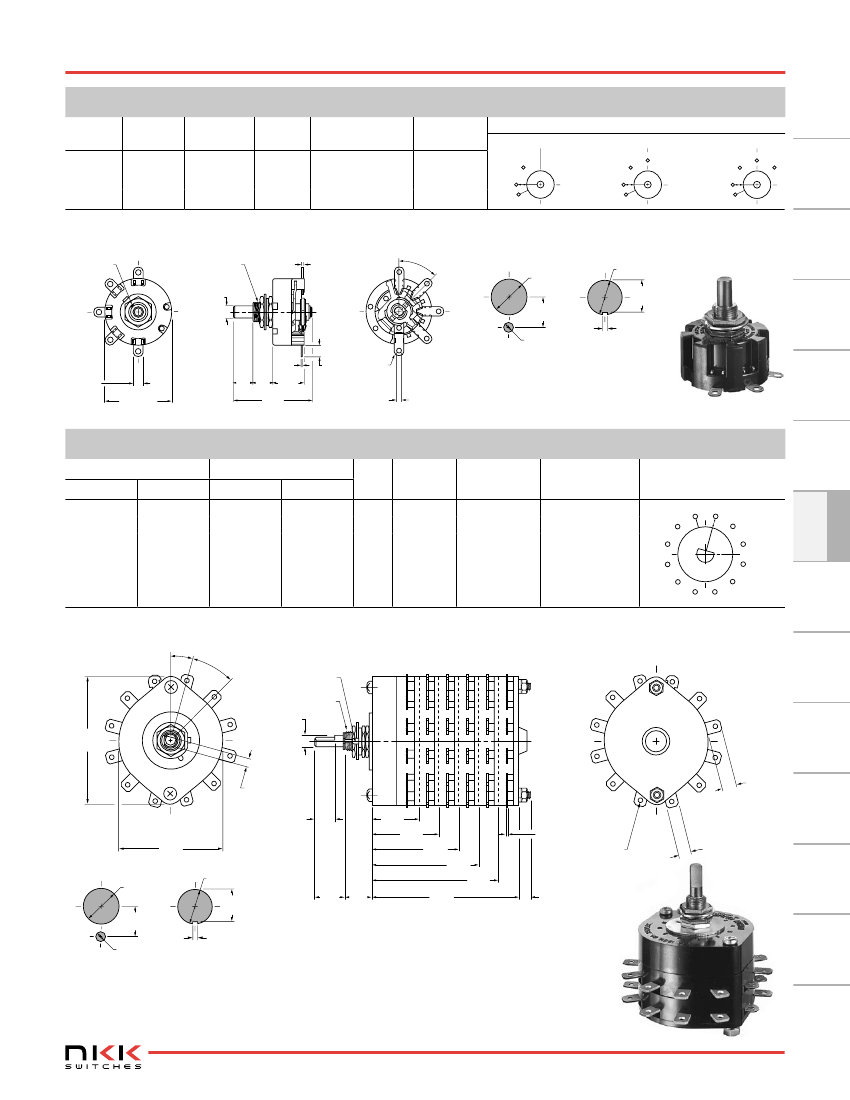

Preview

Download Datasheet

View All

Series HS TS PS

Toggles

Standard Size Rotaries

GENERAL SPECIFICATIONS

Rockers

Electrical Capacity

Resistive Load:

Pushbuttons

HS13: 6A @ 125V AC, 3A @ 250V AC, or 5A @ 30V DC

HS16: 12A @ 125V AC or 6A @ 250V AC

TS: 6A @ 125/250V AC

PS: 30A @ 125/250V AC

Other Ratings

Programmable Illuminated PB

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Mechanical Life:

Electrical Life:

Rotaries

Keylocks

Indexing:

Contact Timing:

Range of Operating Torque:

10 milliohms maximum

200 megohms minimum @ 500V DC

1,500V AC minimum for 1 minute minimum

HS: 15,000 operations minimum

TS: 30,000 operations minimum

PS: 10,000 operations minimum

HS: 7,500 operations minimum

TS: 10,000 operations minimum

PS: 5,000 operations minimum

30° for HS16, TS & PS; 45° for HS13

Nonshorting HS13; Shorting & Nonshorting HS16; Nonshorting TS; Nonshorting PS

HS16: 0.54 ~ 0.64Nm for first pole & 0.05Nm for each additional pole

HS13: 0.15 ~ 0.24Nm

TS: 0.09Nm for first pole & (0.07Nm x total number of poles) + 0.13Nm for additional poles

PS: 0.14Nm for each pole

Materials & Finishes

Tactiles

Knob:

Shaft:

Bushing:

Case:

Movable Contacts:

Stationary Contacts:

Terminals:

Phenolic resin

HS13: brass; HS16, TS, & PS: brass with nickel plating

Phenolic resin

HS13, HS16, & TS phosphor bronze; PS silver alloy

HS13, HS16, & PS: brass with silver plating; TS: phosphor bronze

HS: phosphor bronze; TS & PS: copper with silver plating

Slides

Environmental Data

Operating Temp Range:

Humidity:

Vibration:

Shock:

–10°C through +70°C (+14°F through +158°F)

90 ~ 98% humidity for 96 hours @ 40°C (104°F)

10 ~ 55 Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range

& returning in 1 minute; 3 right angled directions for 2 hours

50G (490m/s

) acceleration (tested in 3 right angled directions, with 3 shocks in each direction)

Touch

Tilt

Installation

Indicators

Mounting Torque:

Maximum Panel Thickness:

Soldering Time & Temperature:

2.94Nm (26 lb

•

in)

Shown with panel cutouts in following drawings

Manual Soldering (HS series only): See Profile A in Supplement section.

Standards & Certifications

UL:

File No. E44145 - Recognized only when ordered with marking on switch.

Add “/U” or “/CUL” to end of part number to order UL recognized switch.

HS16 models 1– through 6–pole are recognized at 12A @ 125V AC & 6A @ 250V AC

See Supplement section to find UL or cULus rating details.

Supplement

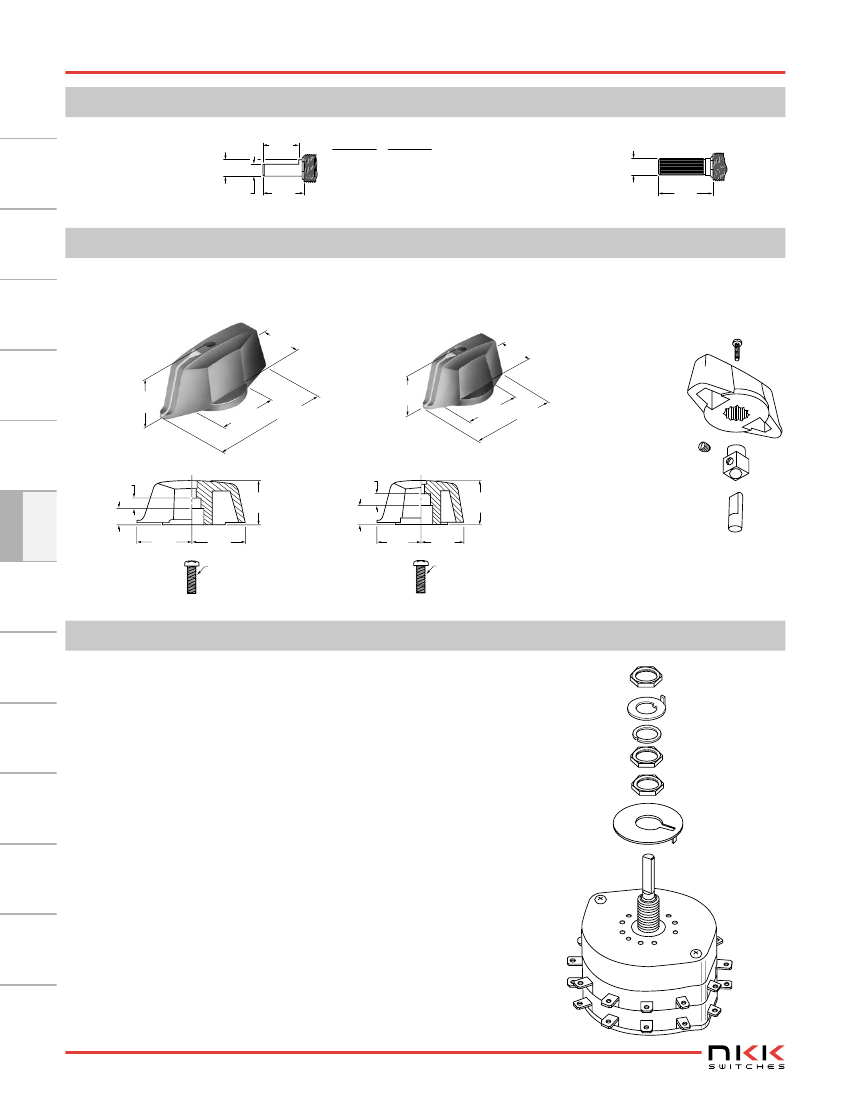

Accessories

G46

www.nkk.com
