65240-029: DescriptionBoard Connector, 29 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Blue Insulator, Plug; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

65240-029 Overview

Board Connector, 29 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Blue Insulator, Plug

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.15 inch
subject depth	0.552 inch
body length	2.897 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLUE
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	1
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	29
UL Flammability Code	94V-0
Base Number Matches	1

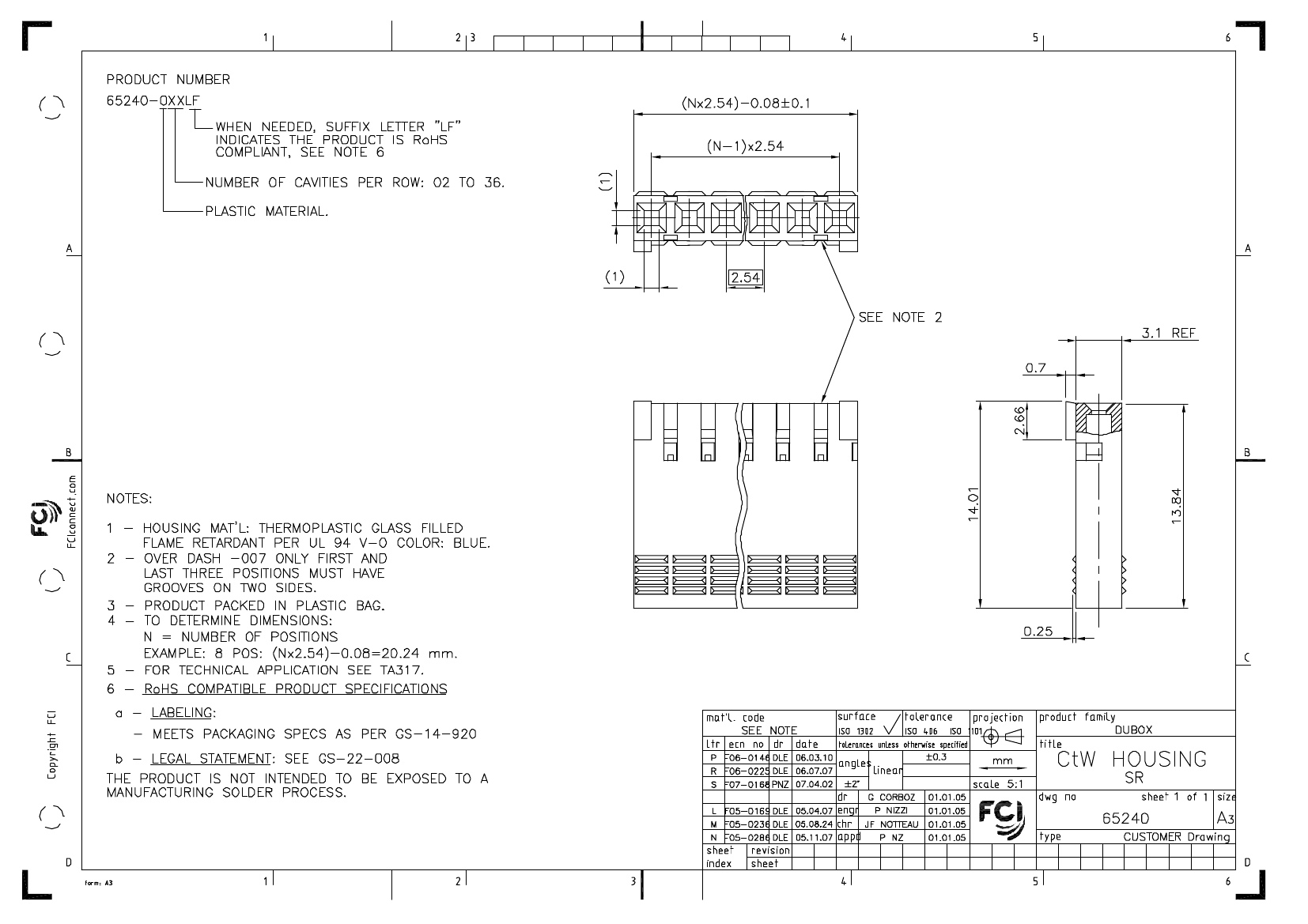

R:\Dcu\Public\Engineering\Product\CDC\F07-0168\65240c01.dwg

PDM: Rev:S

STATUS:

Released

Printed: Apr 04, 2007

.
