SE5535K datasheet, PDF - EEWORLD Datasheet

SE5535K: DescriptionDUAL OP-AMP, 3000uV OFFSET-MAX, 1MHz BAND WIDTH, MBCY10; CategoryAnalog mixed-signal IC Amplifier circuit; File Size171KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

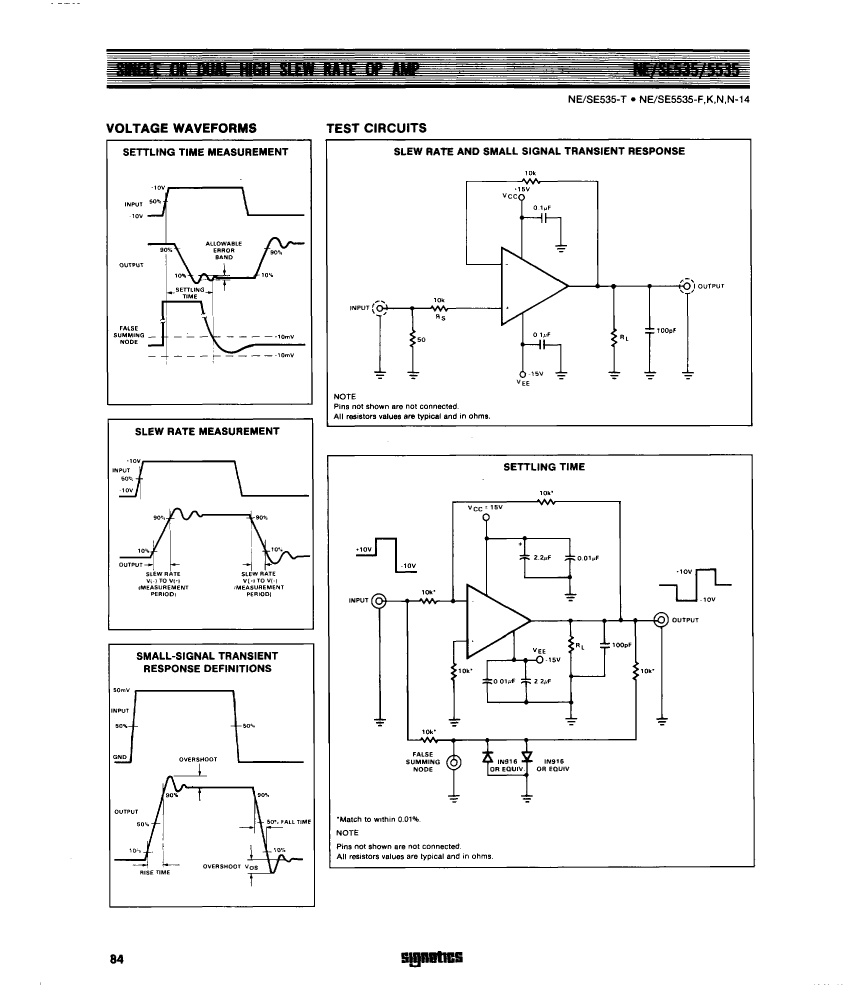

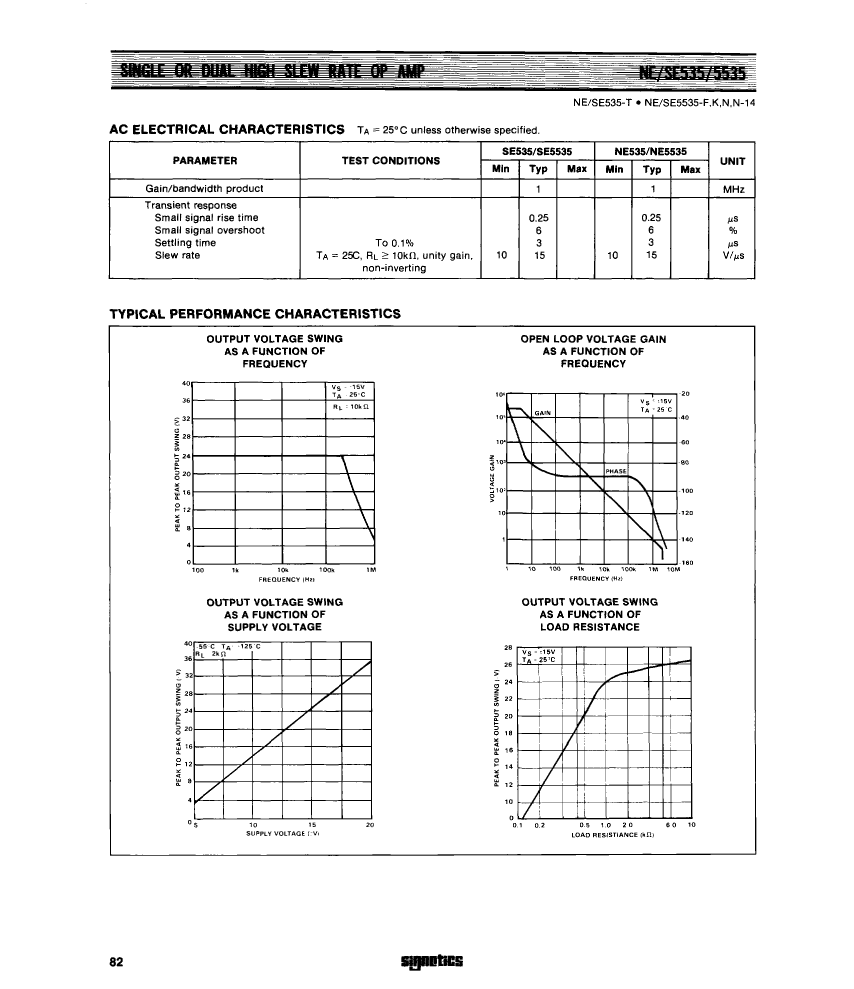

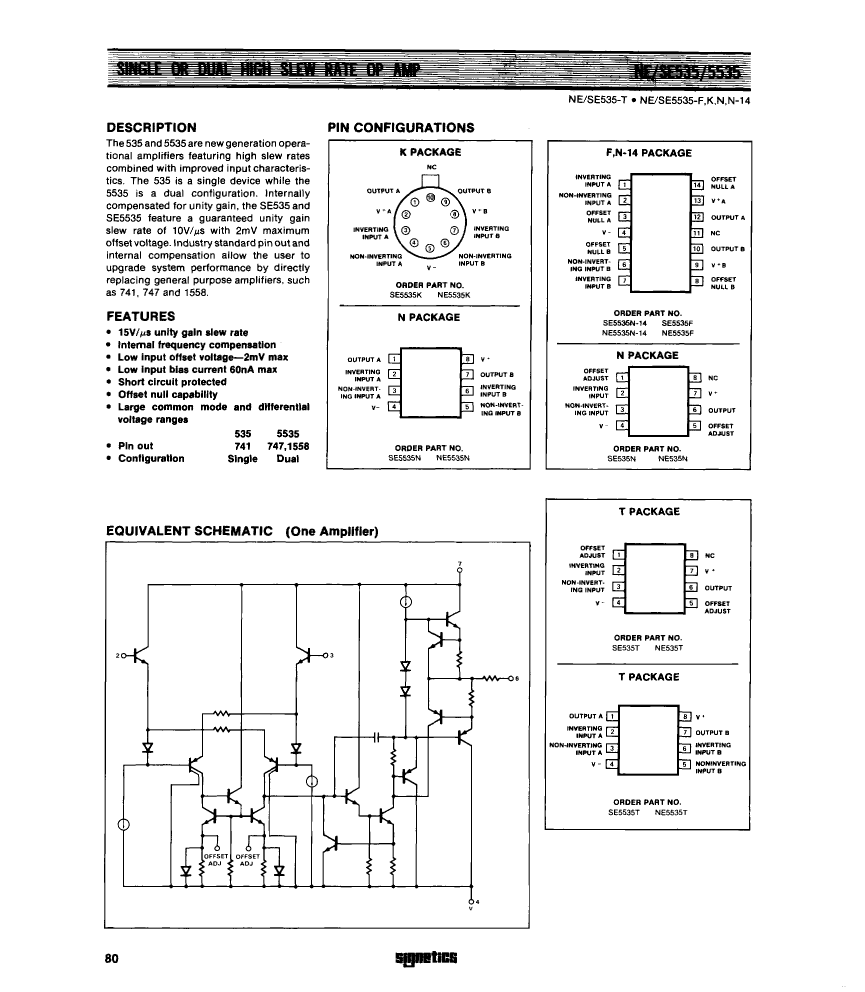

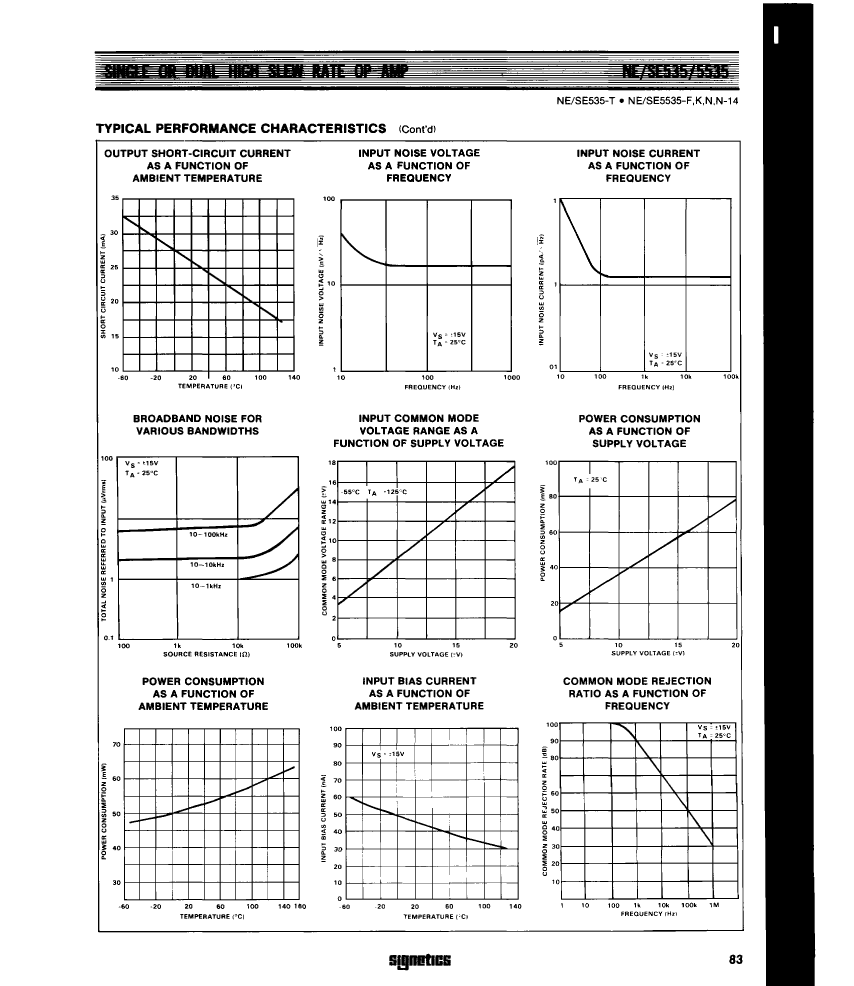

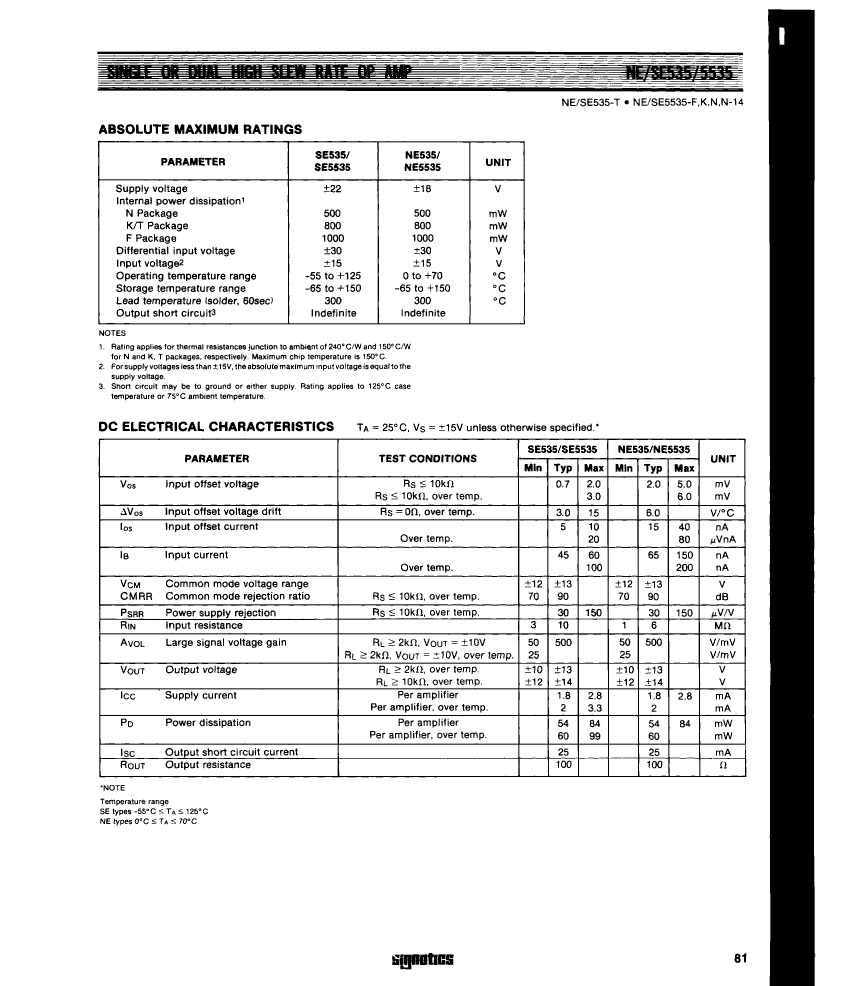

SE5535K Overview

DUAL OP-AMP, 3000uV OFFSET-MAX, 1MHz BAND WIDTH, MBCY10

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.1 µA
Nominal Common Mode Rejection Ratio	90 dB
Maximum input offset voltage	3000 µV
JESD-30 code	O-MBCY-W10
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Nominal slew rate	15 V/us
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	WIRE
Terminal location	BOTTOM
Nominal Uniform Gain Bandwidth	1000 kHz
Base Number Matches	1

	SE5535K	SE5535N-14	SE535T
Description	DUAL OP-AMP, 3000uV OFFSET-MAX, 1MHz BAND WIDTH, MBCY10	DUAL OP-AMP, 3000uV OFFSET-MAX, 1MHz BAND WIDTH, PDIP14	OP-AMP, 3000uV OFFSET-MAX, MBCY8
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.1 µA	0.1 µA	0.1 µA
Nominal Common Mode Rejection Ratio	90 dB	90 dB	90 dB
Maximum input offset voltage	3000 µV	3000 µV	3000 µV
JESD-30 code	O-MBCY-W10	R-PDIP-T14	O-MBCY-W8
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of functions	2	2	1
Number of terminals	10	14	8
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	METAL	PLASTIC/EPOXY	METAL
Package shape	ROUND	RECTANGULAR	ROUND
Package form	CYLINDRICAL	IN-LINE	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	WIRE	THROUGH-HOLE	WIRE
Terminal location	BOTTOM	DUAL	BOTTOM
Negative supply voltage upper limit	-22 V	-22 V	-
Nominal slew rate	15 V/us	15 V/us	-
Supply voltage upper limit	22 V	22 V	-
Nominal Uniform Gain Bandwidth	1000 kHz	1000 kHz	-
Base Number Matches	1	1	-
