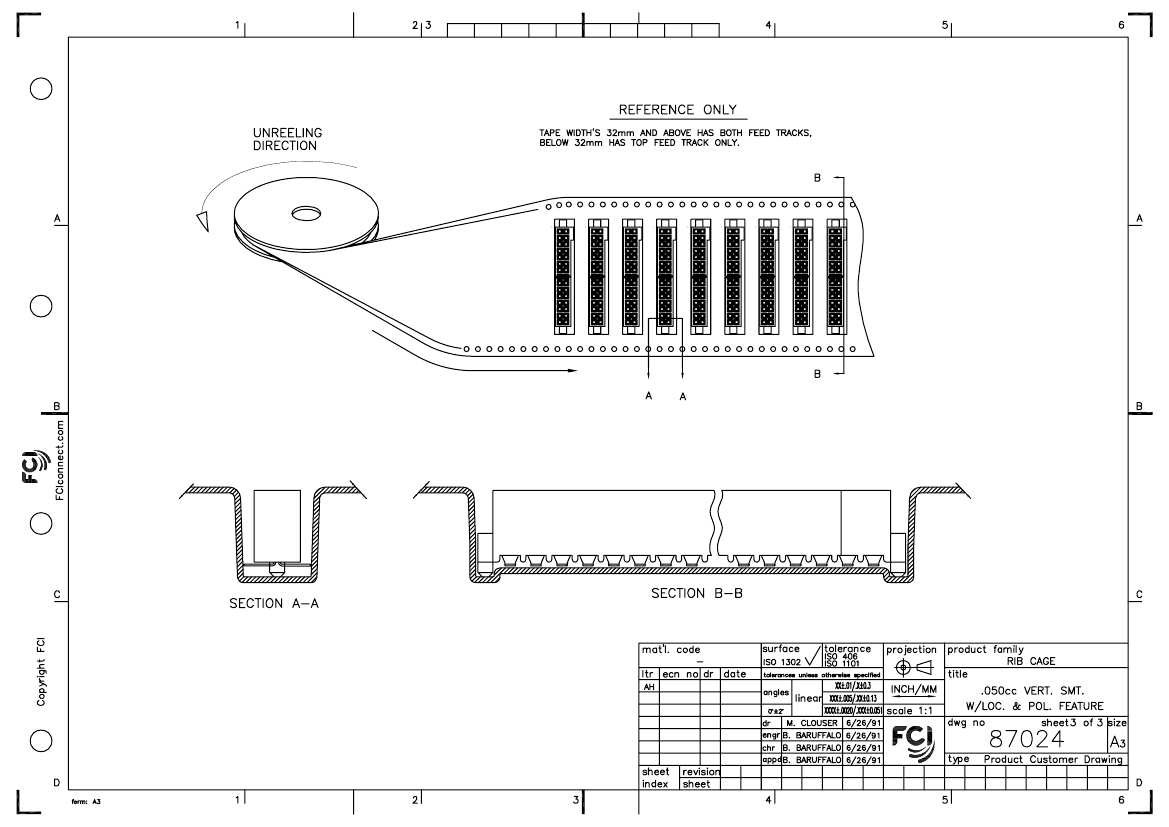

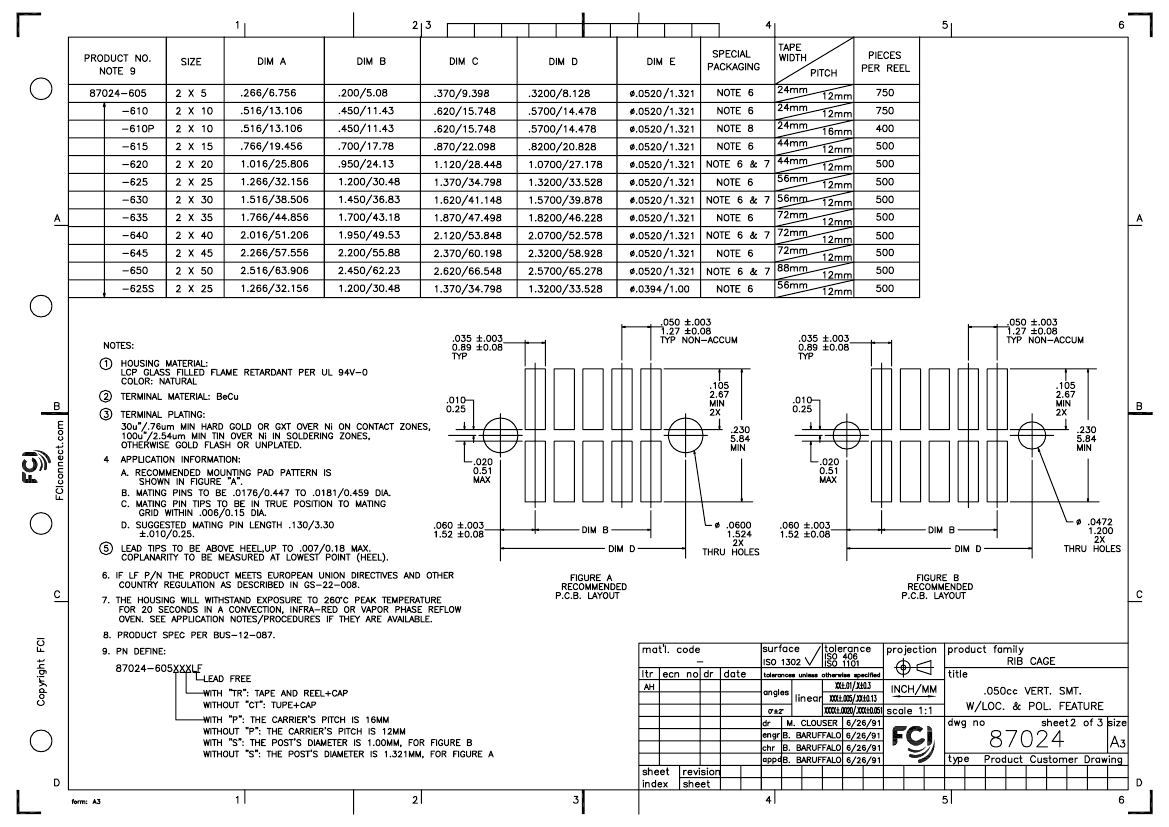

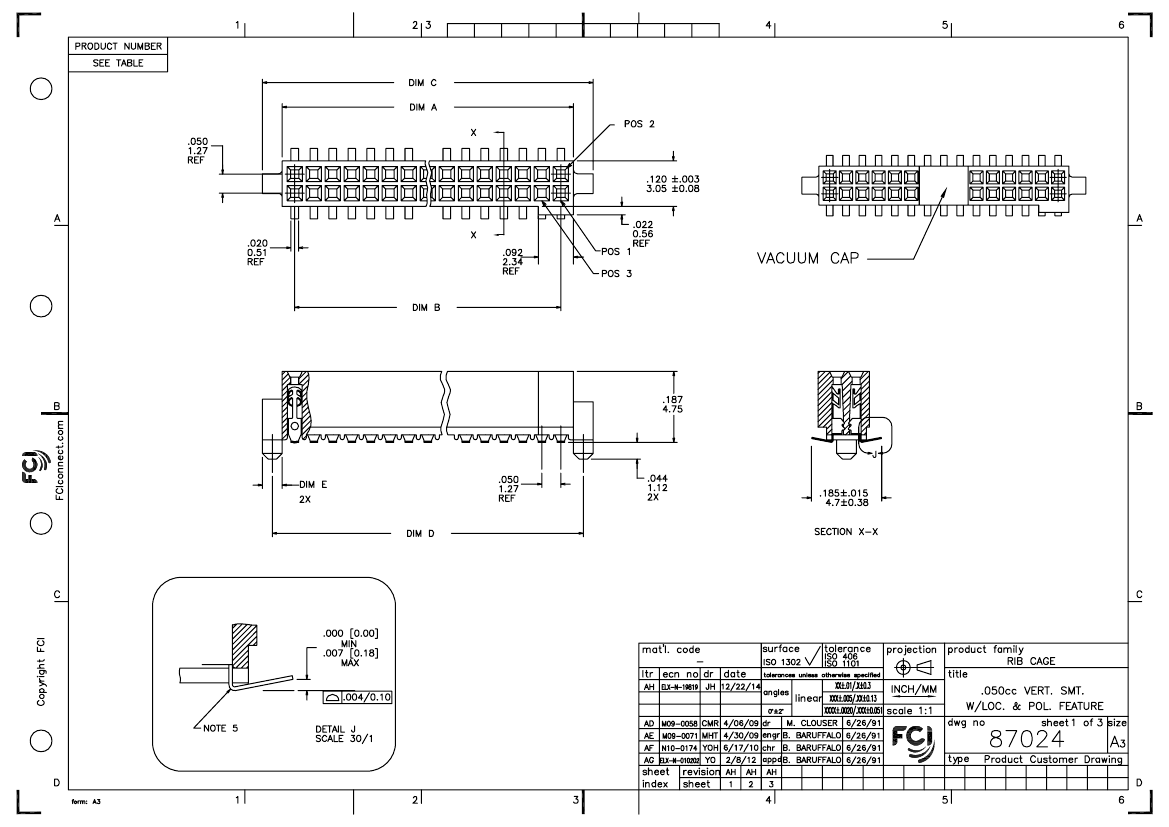

Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | POLARIZED |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (30) OVER NICKEL (50) |
| Contact completed and terminated | TIN (100) OVER NICKEL (50) |
| Contact point gender | FEMALE |
| Contact material | BERYLLIUM COPPER |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Manufacturer's serial number | 87024 |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 1.27 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 40 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 87024-620TR | 87024-615LF | 87024-630LF | 87024-620LF | 87024-620TRLF | 87024-630CTLF | 87024-605TRLF | 87024-610TRLF | 87024-610TR | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal | Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE | Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE | Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE | Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE | Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE | Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE | Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE | Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle |
| Is it Rohs certified? | incompatible | conform to | conform to | conform to | conform to | conform to | conform to | conform to | incompatible |
| Reach Compliance Code | unknown | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Other features | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED | POLARIZED |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (30) OVER NICKEL (50) | GOLD (30) OVER NICKEL (50) | GOLD (30) OVER NICKEL (50) | GOLD (30) OVER NICKEL (50) | GOLD (30) OVER NICKEL | NOT SPECIFIED | NOT SPECIFIED | TIN OVER NICKEL | GOLD (30) OVER NICKEL (50) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | BERYLLIUM COPPER | BERYLLIUM COPPER | BERYLLIUM COPPER | BERYLLIUM COPPER | BERYLLIUM COPPER | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | BERYLLIUM COPPER |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 40 | 30 | 60 | 40 | 40 | 60 | 10 | 20 | 20 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| ECCN code | EAR99 | EAR99 | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Contact completed and terminated | TIN (100) OVER NICKEL (50) | Tin (Sn) - with Nickel (Ni) barrier | Tin (Sn) - with Nickel (Ni) barrier | Tin (Sn) - with Nickel (Ni) barrier | MATTE TIN (100) OVER NICKEL | - | - | Tin (Sn) - with Nickel (Ni) barrier | Tin (Sn) - with Nickel (Ni) barrier |
| JESD-609 code | e3 | e3 | e3 | e3 | e3 | - | - | e3 | e3 |
| Is it lead-free? | - | Lead free | Lead free | Lead free | Lead free | - | Lead free | Lead free | - |
| package instruction | - | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | - |
| Board mount options | - | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS | - | - | - | LOCATING POSTS | LOCATING POSTS |
| body width | - | 0.12 inch | 0.12 inch | 0.12 inch | - | - | - | 0.12 inch | 0.12 inch |
| subject depth | - | 0.187 inch | 0.187 inch | 0.187 inch | - | - | - | 0.187 inch | 0.187 inch |
| body length | - | 0.87 inch | 1.62 inch | 1.12 inch | - | - | - | 0.62 inch | 0.62 inch |
| Body/casing type | - | RECEPTACLE | RECEPTACLE | RECEPTACLE | - | - | - | RECEPTACLE | RECEPTACLE |
| contact mode | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | - | - | RECTANGULAR | RECTANGULAR |
| Contact resistance | - | 20 mΩ | 20 mΩ | 20 mΩ | - | - | - | 20 mΩ | 20 mΩ |
| Contact style | - | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | - | - | - | SQ PIN-SKT | SQ PIN-SKT |
| Durability | - | 200 Cycles | 200 Cycles | 200 Cycles | - | - | - | 200 Cycles | 200 Cycles |
| maximum insertion force | - | 1.529 N | 1.529 N | 1.529 N | - | - | - | 1.529 N | 1.529 N |
| Insulation resistance | - | 50000000000 Ω | 50000000000 Ω | 50000000000 Ω | - | - | - | 50000000000 Ω | 50000000000 Ω |
| Insulator color | - | NATURAL | NATURAL | NATURAL | - | - | - | NATURAL | NATURAL |
| insulator material | - | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | - | - | - | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER |
| Plug contact pitch | - | 0.05 inch | 0.05 inch | 0.05 inch | - | - | - | 0.05 inch | 0.05 inch |
| Match contact row spacing | - | 0.05 inch | 0.05 inch | 0.05 inch | - | - | - | 0.05 inch | 0.05 inch |
| Installation option 1 | - | LOCKING | LOCKING | LOCKING | - | - | - | LOCKING | LOCKING |
| Number of connectors | - | ONE | ONE | ONE | - | - | - | ONE | ONE |
| PCB row number | - | 2 | 2 | 2 | - | - | - | 2 | 2 |
| Maximum operating temperature | - | 130 °C | 130 °C | 130 °C | - | - | - | 130 °C | 130 °C |
| Minimum operating temperature | - | -55 °C | -55 °C | -55 °C | - | - | - | -55 °C | -55 °C |
| PCB contact pattern | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | - | - | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | - | 3.175 mm | 3.175 mm | 3.175 mm | - | - | - | 3.175 mm | 3.175 mm |
| Plating thickness | - | 30u inch | 30u inch | 30u inch | - | - | - | 30u inch | 30u inch |
| polarization key | - | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | - | - | - | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | - | 1 A | 1 A | 1 A | - | - | - | 1 A | 1 A |
| Guideline | - | UL, CSA | UL, CSA | UL, CSA | - | - | - | UL, CSA | UL, CSA |
| reliability | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | - | - | COMMERCIAL | COMMERCIAL |
| Evacuation force-minimum value | - | .417 N | .417 N | .417 N | - | - | - | .417 N | .417 N |
