PTV12020LAD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> PTV12020LAD

PTV12020LAD: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 28.8W, Hybrid, ROHS COMPLIANT PACKAGE-12; CategoryPower/power management The power supply circuit; File Size250KB，5 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric Compare View All

PTV12020LAD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PTV12020LAD	-	-	View	Buy Now

PTV12020LAD Overview

DC-DC Regulated Power Supply Module, 1 Output, 28.8W, Hybrid, ROHS COMPLIANT PACKAGE-12

PTV12020LAD Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
package instruction	,
Contacts	12
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	R-XSMA-P12
Number of functions	1
Output times	1
Number of terminals	12
Maximum output voltage	1.8 V
Minimum output voltage	0.8 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum total power output	28.8 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

12 Vin single output

DC-DC CONVERTERS

POLA Non-isolated

NEW Product

•

16 A output current

•

12 V input voltage

•

Wide-output voltage adjust

•

1.2 Vdc to 5.5 Vdc for suffix ‘W’ and

0.8 Vdc to 1.8 Vdc for suffix ‘L’

•

Auto-track™ sequencing*

•

Pre-bias start-up

•

Efficiencies up to 93%

•

Output ON/OFF inhibit

•

Vertical through-hole mounting

•

Point-of-Load-Alliance (POLA) compatible

•

Undervoltage lockout

•

Available RoHS compliant

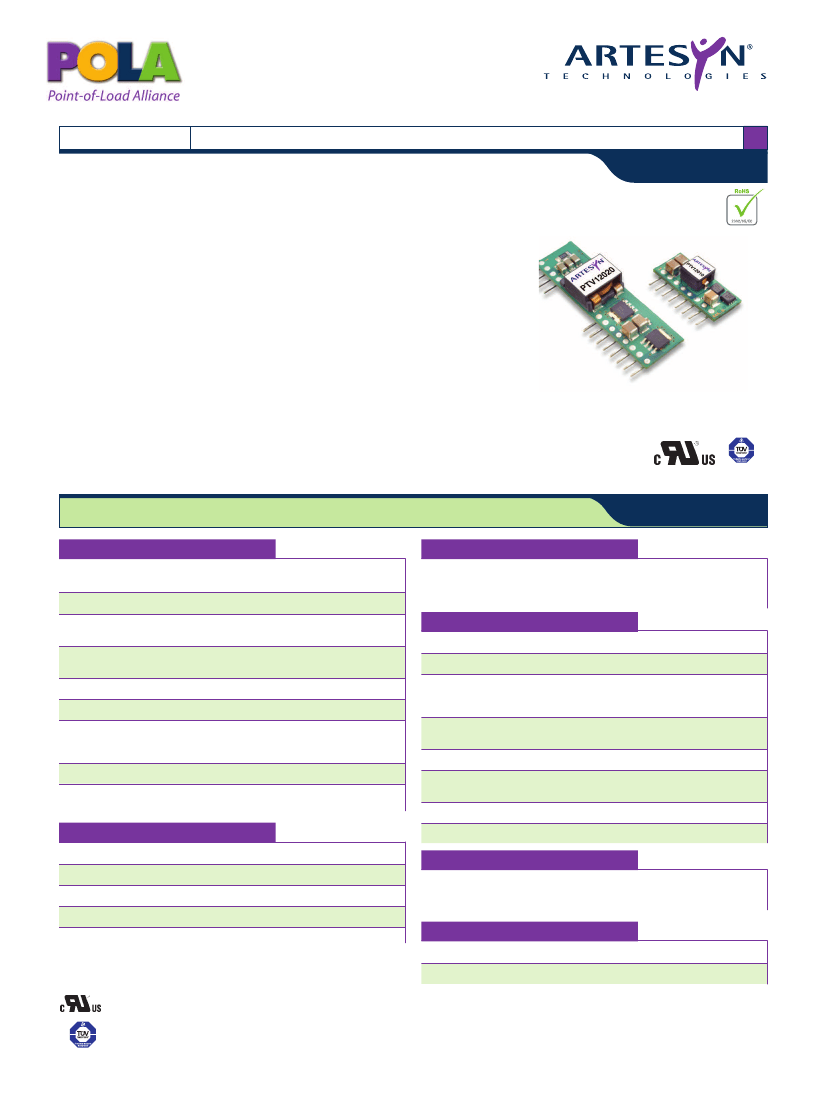

The PTV12020 is a non-isolated dc-dc converter from Artesyn under the Point of Load

Alliance (POLA) standard. The vertical mounting option of the PTV12020 module provides

performance in less than 20% of the space that is required by alternative solutions. The

Auto-Track™ feature provides for sequencing between multiple modules, a function,

which is becoming a necessity for powering advanced silicon including DSP’s, FPGA’s

and ASIC’s requiring controlled power-up and power-down. The PTV12020 has an input

voltage of 10.8 Vdc to 13.2 Vdc and offers a wide 1.2 Vdc to 5.5 Vdc for suffix ‘W’ and

0.8 Vdc to 1.8 Vdc for suffix ‘L’ output voltage range with up to 16 A output current,

which allows for maximum design flexibility and a pathway for future upgrades.

All specifications are typical at nominal input, full load at 25 °C unless otherwise stated

= 560 µF (non-ceramic) and 22 µF (ceramic), C

out

= 0 µF

OUTPUT SPECIFICATIONS

Voltage adjustability

(See Note 4)

Setpoint accuracy

Line regulation

Load regulation

Total regulation

Minimum load

Ripple and noise

20 MHz bandwidth

Suffix ‘W’ Vo <2.5 V

Suffix ‘W’ Vo >2.5 V

Suffix ‘L’

Suffix ‘W’

Suffix ‘L’

(See Note 8)

Suffix ‘W’

Suffix ‘L’

Suffix ‘W’

Suffix ‘L’

(See Note 8)

1.2-5.5 Vdc

0.8-1.8 Vdc

±2.0% Vo

±5 mV typ.

±10 mV typ.

±12 mV typ.

±3.0% Vo

1.0%

1.5%

2.0%

EMC CHARACTERISTICS

Electrostatic discharge

Conducted immunity

Radiated immunity

EN61000-4-2, IEC801-2

EN61000-4-6

EN61000-4-3

PTV12020

2 YEAR WARRANTY

SPECIFICATIONS

GENERAL SPECIFICATIONS

Efficiency

Insulation voltage

Switching frequency

Suffix ‘W’

Suffix ‘L’

Approvals and

standards

Material flammability

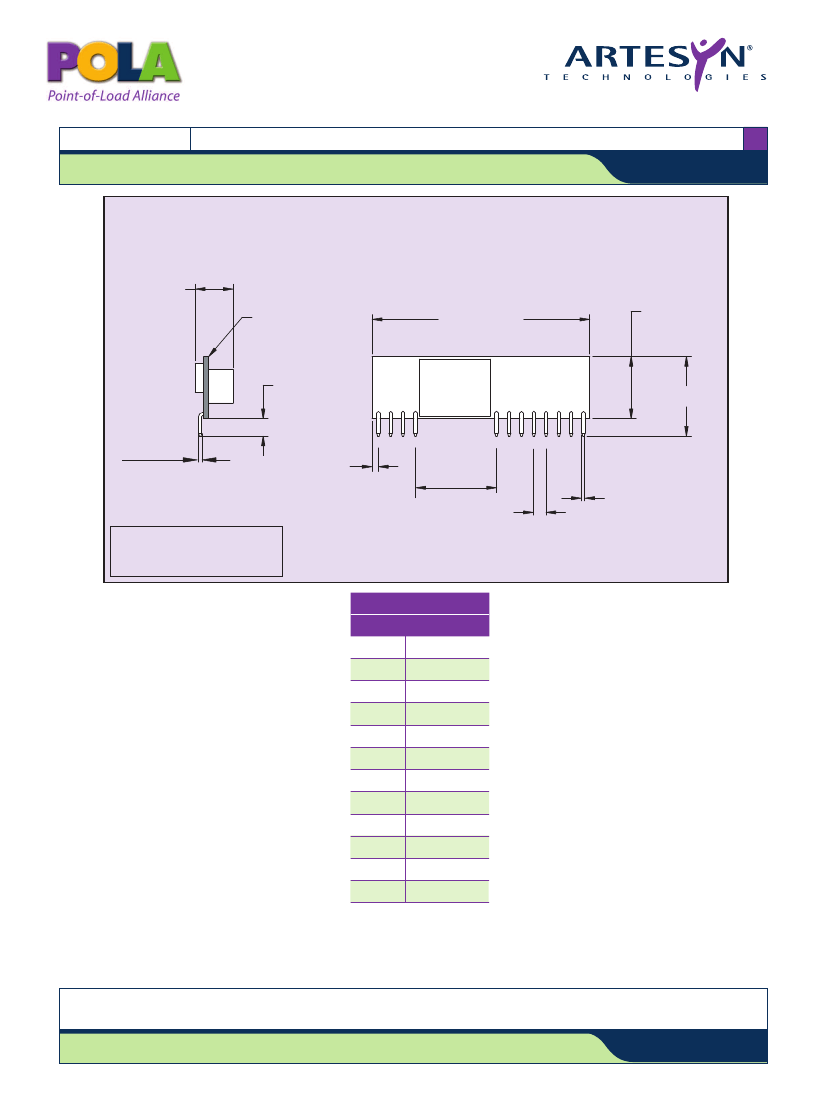

Dimensions

Weight

MTBF

Telcordia SR-332

(L x W x H)

250-400 kHz

200-300 kHz

See Tables on page 2

Non-isolated

325 kHz typ.

250 kHz typ.

EN60950

UL/cUL60950

UL94V-0

44.45 x 9.39 x 12.70 mm

1.75 x 0.37 x 0.50 in

5.5 g (0.19 oz)

4,900,000 hours

Temperature co-efficient -40 ºC to +85 ºC

Transient response

(See Note 5)

INPUT SPECIFICATIONS

Input voltage range

Input standby current

Remote ON/OFF

Undervoltage lockout

Track input current

(See Note 1)

(Increasing)

Pin 9 (See Notes 6, 7)

(See Note 3)

±0.5% Vo

70 µs recovery time

Overshoot/undershoot 100 mV

10.8-13.2 Vdc

10 mA typ.

Positive logic

9.5 V typ.

0.13 mA

ENVIRONMENTAL SPECIFICATIONS

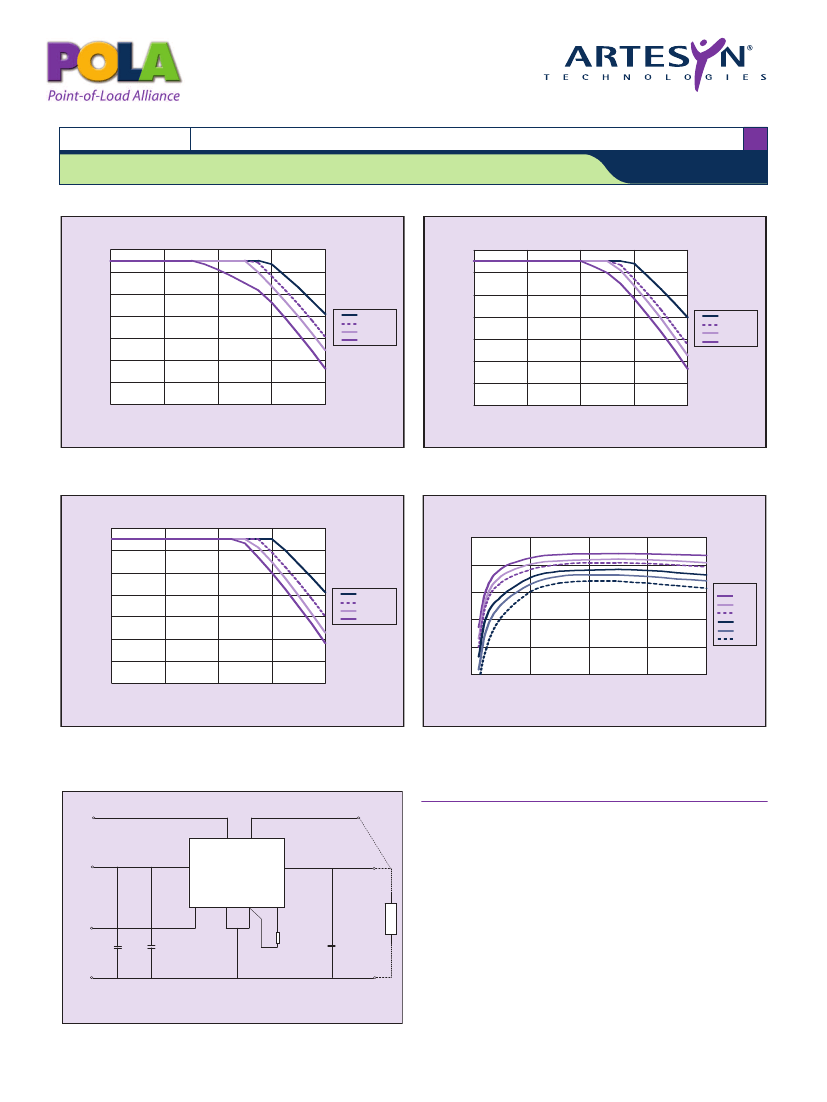

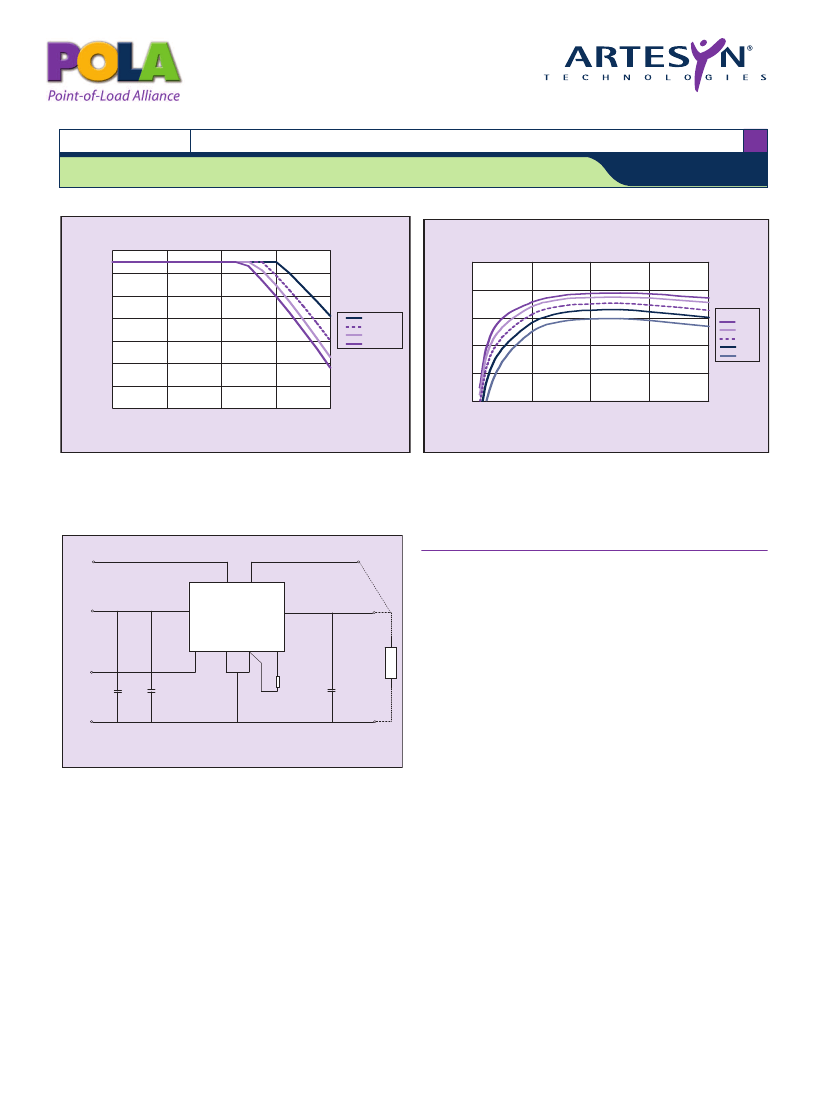

Thermal performance

(See Note 2)

Operating ambient,

temperature

Non-operating

-40 ºC to +85 ºC

-40 ºC to +125 ºC

PROTECTION

Overcurrent

Auto reset

30 A typ.

Auto recovery

International Safety Standard Approvals

UL/cUL CAN/CSA-C22.2 No. 60950

File No. E174104

TÜV Product Service (EN60950) Certificate No. B 04 06 38572 044

CB Report and Certificate to IEC60950, Certificate No.

US/8292/UL

Overtemperature

*Auto-track™ is a trade mark of

Texas Instruments

File Name: ptv12020w.pdf Rev (02): 19 Dec 2005

PTV12020LAD Related Products

	PTV12020LAD	PTV12020WAD
Description	DC-DC Regulated Power Supply Module, 1 Output, 28.8W, Hybrid, ROHS COMPLIANT PACKAGE-12	DC-DC Regulated Power Supply Module, 1 Output, 88W, Hybrid, ROHS COMPLIANT PACKAGE-12
Parts packaging code	MODULE	MODULE
Contacts	12	12
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	13.2 V	13.2 V
Minimum input voltage	10.8 V	10.8 V
Nominal input voltage	12 V	12 V
JESD-30 code	R-XSMA-P12	R-XSMA-P12
Number of functions	1	1
Output times	1	1
Number of terminals	12	12
Maximum output voltage	1.8 V	5.5 V
Minimum output voltage	0.8 V	1.2 V
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
technology	HYBRID	HYBRID
Terminal form	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE
Maximum total power output	28.8 W	88 W
Fine-tuning/adjustable output	YES	YES
