TL431ACLP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TL431ACLP

TL431ACLP: DescriptionThree Terminal Voltage Reference, 1 Output, 2.495V, BIPolar, PBCY3, TO-92, 3 PIN; CategoryPower/power management The power supply circuit; File Size257KB，16 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com; Related ProductsFound7parts with similar functions to TL431ACLP

Download Datasheet Parametric Compare View All

TL431ACLP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TL431ACLP	-	-	View	Buy Now

TL431ACLP Overview

Three Terminal Voltage Reference, 1 Output, 2.495V, BIPolar, PBCY3, TO-92, 3 PIN

TL431ACLP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	TO-92,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PROGRAMMABLE TO 36V
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output voltage	36 V
Minimum output voltage	2.495 V
Nominal output voltage	2.495 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-92
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Maximum supply current (Isup)	100 mA
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

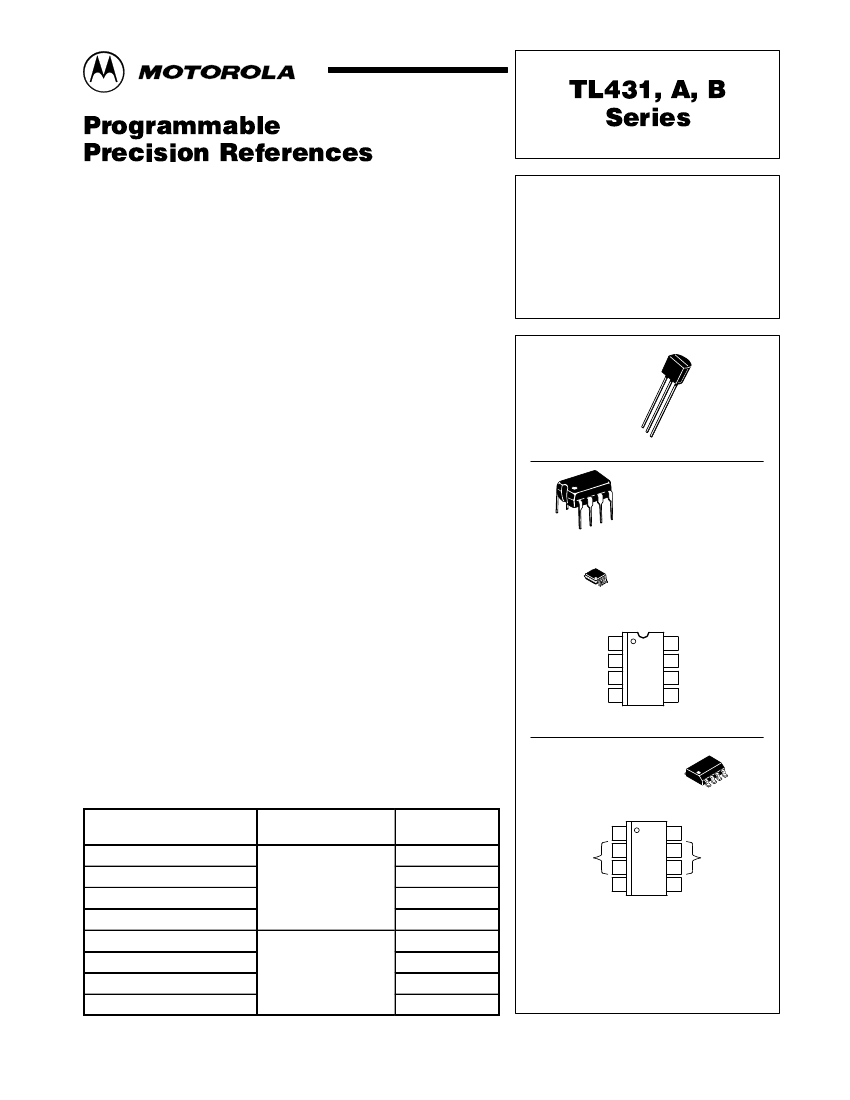

Order this document by TL431/D

TL431, A, B

Programmable

Precision References

The TL431, A, B integrated circuits are three–terminal programmable

shunt regulator diodes. These monolithic IC voltage references operate as a

low temperature coefficient zener which is programmable from Vref to 36 V

with two external resistors. These devices exhibit a wide operating current

range of 1.0 mA to 100 mA with a typical dynamic impedance of 0.22

Ω.

The

characteristics of these references make them excellent replacements for

zener diodes in many applications such as digital voltmeters, power

supplies, and op amp circuitry. The 2.5 V reference makes it convenient to

obtain a stable reference from 5.0 V logic supplies, and since the TL431, A,

B operates as a shunt regulator, it can be used as either a positive or

negative voltage reference.

Series

PROGRAMMABLE

PRECISION REFERENCES

SEMICONDUCTOR

TECHNICAL DATA

•

Programmable Output Voltage to 36 V

Voltage Reference Tolerance:

±0.4%,

Typ @ 25°C (TL431B)

Low Dynamic Output Impedance, 0.22

Ω

Typical

Sink Current Capability of 1.0 mA to 100 mA

Equivalent Full–Range Temperature Coefficient of 50 ppm/°C Typical

Temperature Compensated for Operation over Full Rated Operating

Temperature Range

Low Output Noise Voltage

LP SUFFIX

PLASTIC PACKAGE

CASE 29

(TO–92)

Pin 1. Reference

2. Anode

3. Cathode

P SUFFIX

PLASTIC PACKAGE

CASE 626

DM SUFFIX

PLASTIC PACKAGE

CASE 846A

(Micro–8)

Cathode 1

N/C 2

N/C 3

N/C 4

(Top View)

8 Reference

7 N/C

6 Anode

5 N/C

ORDERING INFORMATION

Device

TL431CLP, ACLP, BCLP

TL431CP, ACP, BCP

TL431CDM, ACDM, BCDM

TL431CD, ACD, BCD

TL431ILP, AILP, BILP

TL431IP, AIP, BIP

TL431IDM, AIDM, BIDM

TL431ID, AID, BID

TA = –40° to +85°C

40°

85°C

TA = 0° to +70°C

70°C

Operating

Temperature Range

Package

TO–92

Plastic

Micro–8

D SUFFIX

PLASTIC PACKAGE

CASE 751

(SOP–8)

Cathode 1

Anode

N/C 4

(Top View)

Reference

Anode

N/C

SOP–8

TO–92

Plastic

Micro–8

SOP–8

Motorola, Inc. 1998

Rev 6

SOP–8 is an internally modified SO–8 package. Pins 2,

3, 6 and 7 are electrically common to the die attach flag.

This internal lead frame modification decreases power

dissipation capability when appropriately mounted on a

printed circuit board. SOP–8 conforms to all external

dimensions of the standard SO–8 package.

MOTOROLA ANALOG IC DEVICE DATA

TL431ACLP Related Products

	TL431ACLP	TL431ID	TL431CP	TL431ACP
Description	Three Terminal Voltage Reference, 1 Output, 2.495V, BIPolar, PBCY3, TO-92, 3 PIN	Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PDSO8, SOP-8	Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PDIP8, 626-05	Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PDIP8, 626-05
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	TO-92,	SOP,	626-05	626-05
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	PROGRAMMABLE TO 36V	PROGRAMMABLE TO 36V	PROGRAMMABLE TO 36V	PROGRAMMABLE TO 36V
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-PBCY-T3	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8
JESD-609 code	e0	e0	e0	e0
Number of functions	1	1	1	1
Output times	1	1	1	1
Number of terminals	3	8	8	8
Maximum operating temperature	70 °C	85 °C	70 °C	70 °C
Maximum output voltage	36 V	36 V	36 V	36 V
Minimum output voltage	2.495 V	2.495 V	2.495 V	2.495 V
Nominal output voltage	2.495 V	2.495 V	2.495 V	2.495 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TO-92	SOP	DIP	DIP
Package shape	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CYLINDRICAL	SMALL OUTLINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	100 mA	100 mA	100 mA	100 mA
surface mount	NO	YES	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	DUAL	DUAL	DUAL
Fine-tuning/adjustable output	NO	YES	YES	YES
Base Number Matches	1	1	1	1
length	-	4.9 mm	9.78 mm	9.78 mm
Maximum seat height	-	1.75 mm	4.45 mm	4.45 mm
Terminal pitch	-	1.27 mm	2.54 mm	2.54 mm
width	-	3.9 mm	7.62 mm	7.62 mm
