N74F8966AB datasheet, PDF - EEWORLD Datasheet

N74F8966AB: DescriptionRegistered Bus Transceiver, 1-Func, 9-Bit, Inverted Output, TTL, PQCC44; Categorylogic logic; File Size832KB，11 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

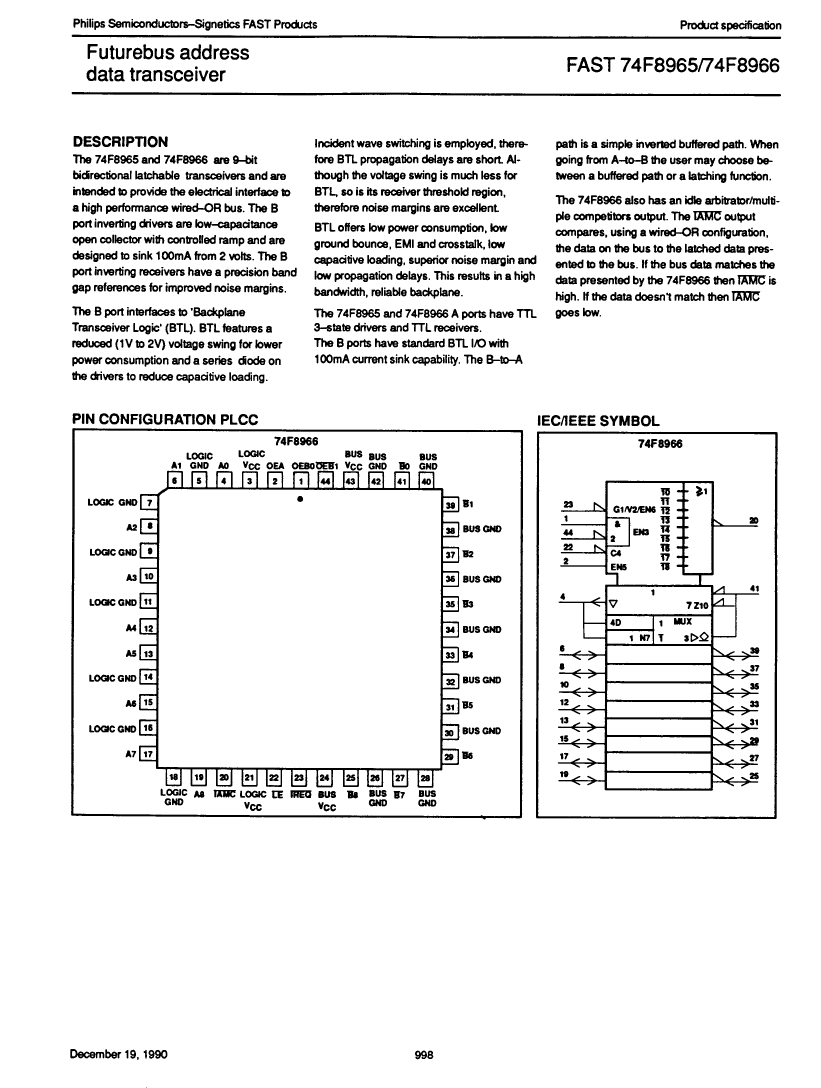

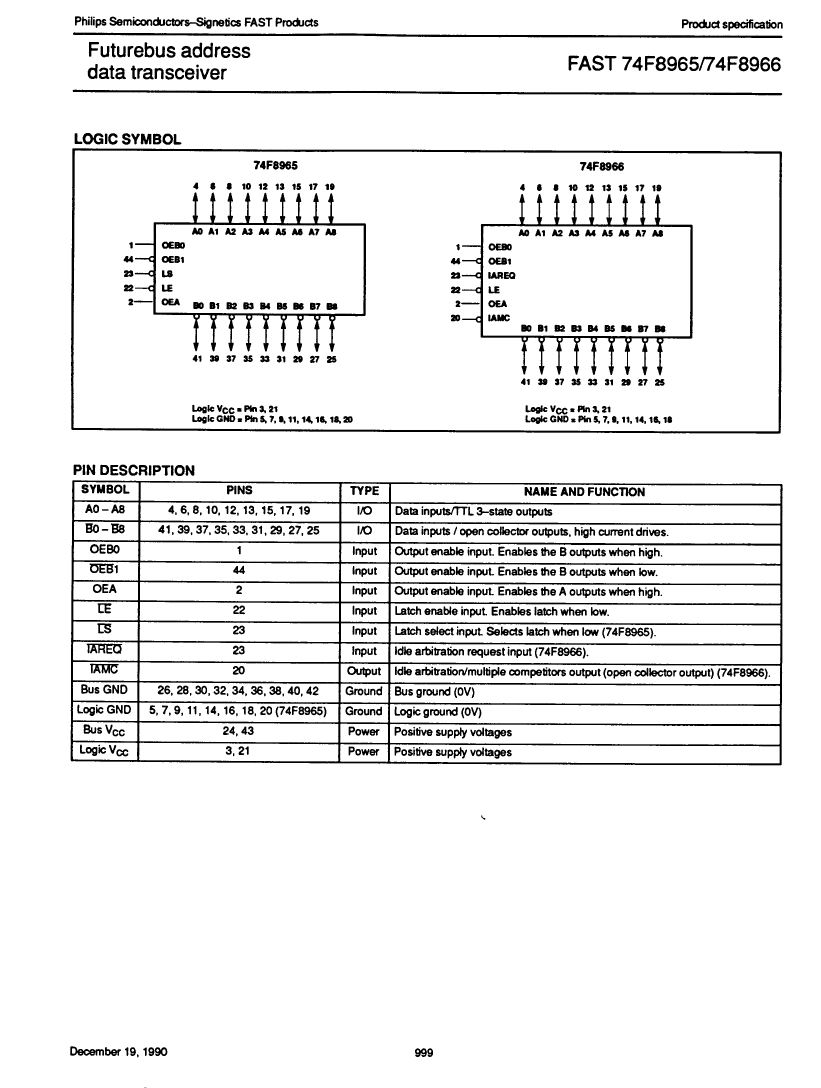

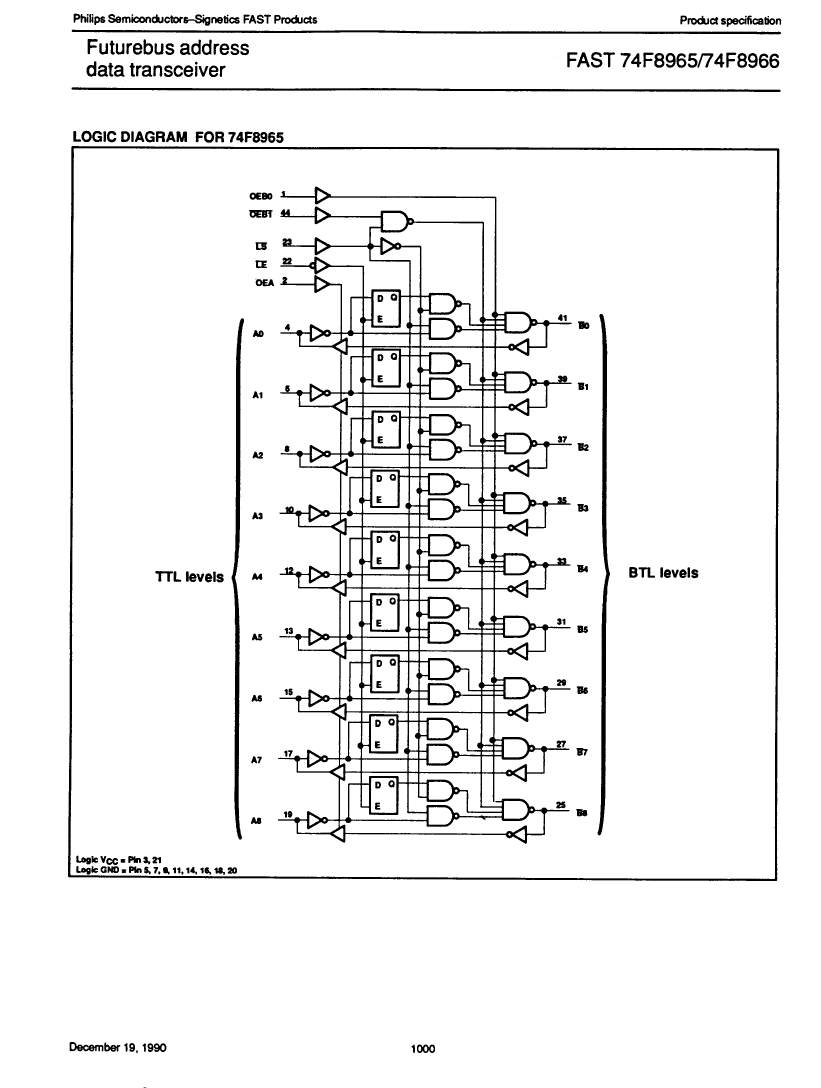

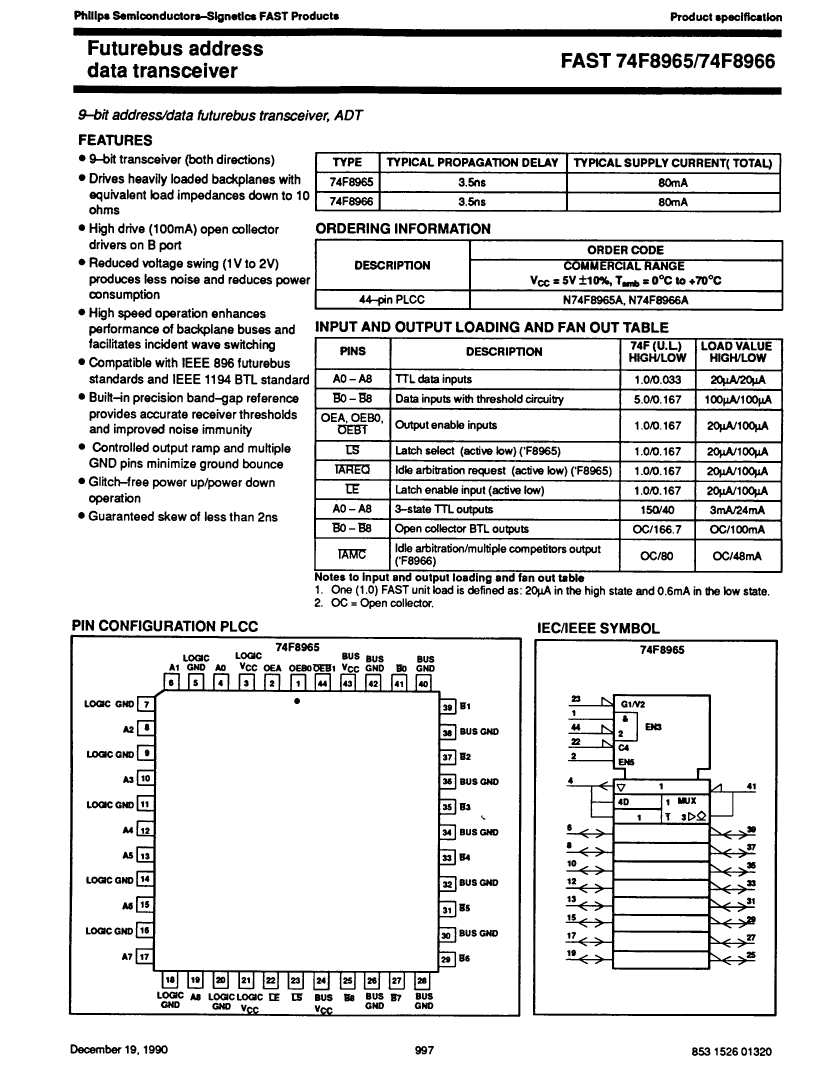

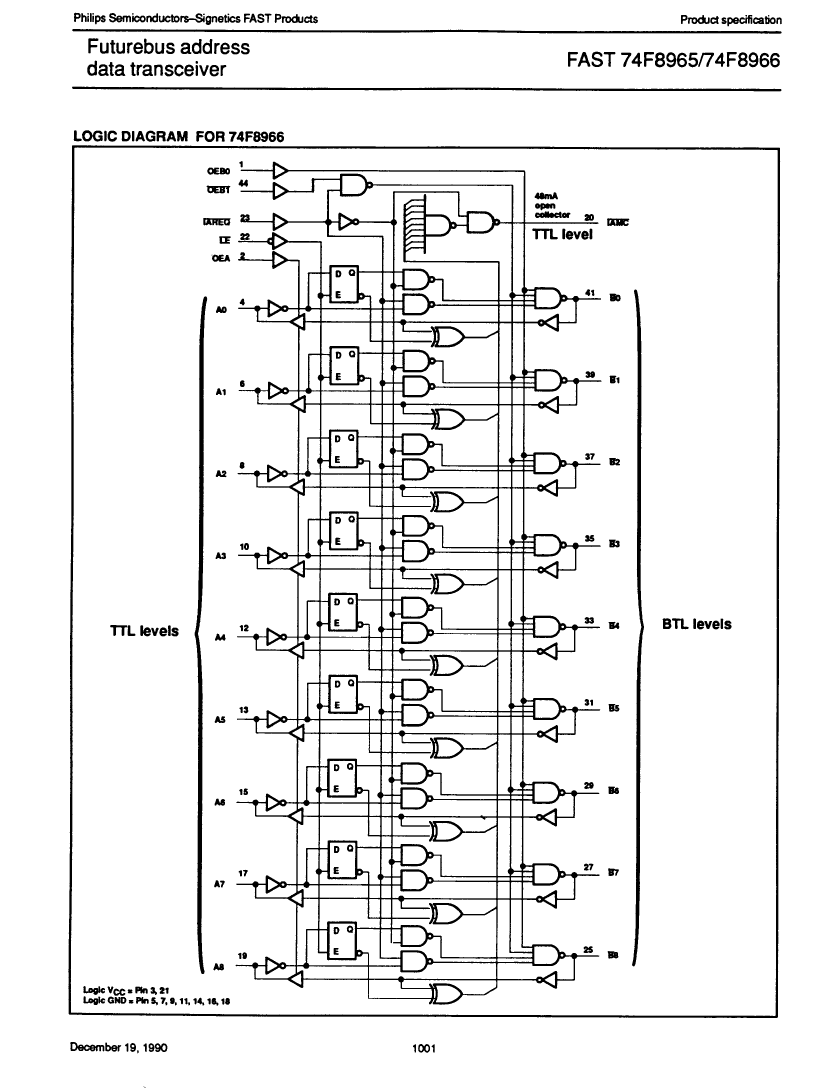

N74F8966AB Overview

Registered Bus Transceiver, 1-Func, 9-Bit, Inverted Output, TTL, PQCC44

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCJ, LDCC44,.7SQ
Reach Compliance Code	unknown
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.1 A
Number of digits	9
Number of functions	1
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR/3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Maximum supply current (ICC)	145 mA
Prop。Delay @ Nom-Sup	11.5 ns
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
translate	BTL & TTL
Base Number Matches	1

	N74F8966AB	N74F8965AB
Description	Registered Bus Transceiver, 1-Func, 9-Bit, Inverted Output, TTL, PQCC44	Registered Bus Transceiver, 1-Func, 9-Bit, Inverted Output, TTL, PQCC44
Is it Rohs certified?	incompatible	incompatible
package instruction	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ
Reach Compliance Code	unknown	unknown
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.1 A	0.1 A
Number of digits	9	9
Number of functions	1	1
Number of terminals	44	44
Maximum operating temperature	70 °C	70 °C
Output characteristics	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE
Output polarity	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ	LDCC44,.7SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V
Maximum supply current (ICC)	145 mA	145 mA
Prop。Delay @ Nom-Sup	11.5 ns	11.5 ns
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
translate	BTL & TTL	BTL & TTL
Base Number Matches	1	1
