M83723/76W2219N-LC: DescriptionMIL Series Connector, 19 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size329KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

M83723/76W2219N-LC Overview

MIL Series Connector, 19 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug,

M83723/76W2219N-LC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-83723, COMPATIBLE CONTACT: M39029/4-111
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	YES
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	22
Termination type	CRIMP
Total number of contacts	19
Base Number Matches	1

Preview

Download Datasheet

View All

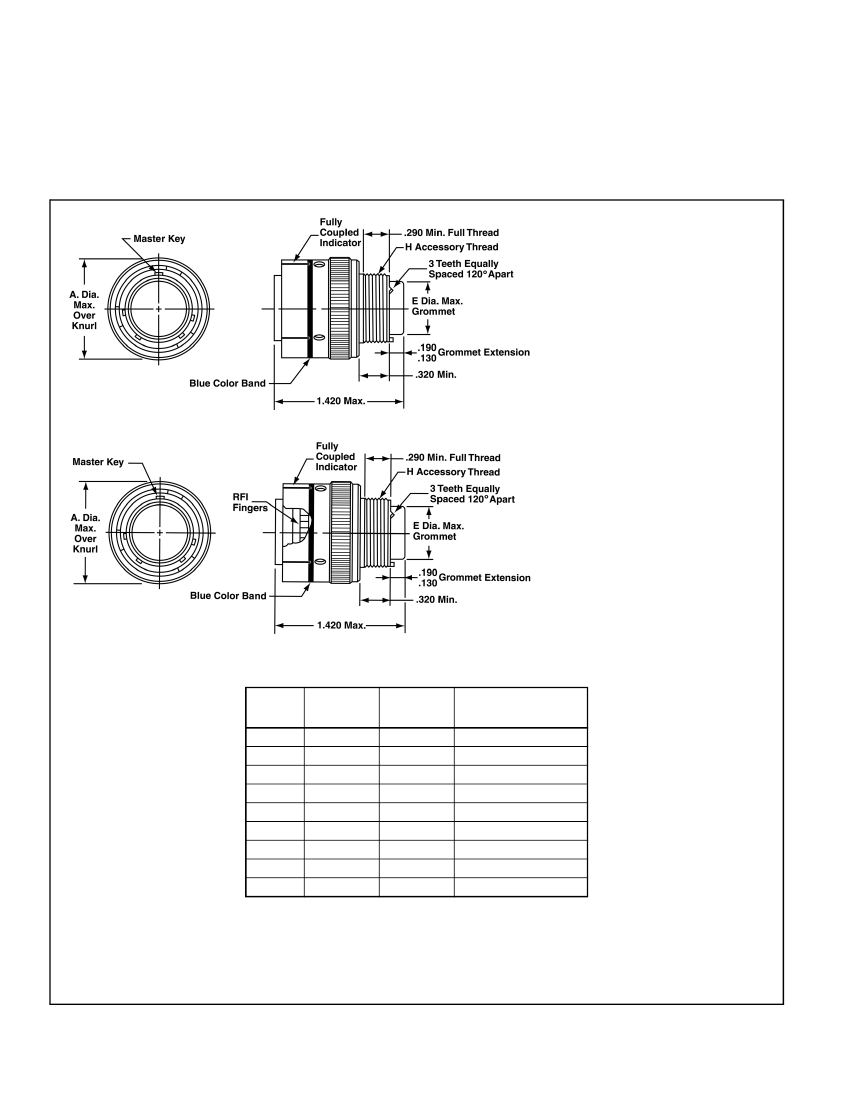

Miniature Cylindrical MIL-C-83723, Series III

Bayonet Coupling

M83723/75 & 76

straight plug

M83723/77 & 78

straight plug with RFI grounding

Plug Shell,

Bayonet Coupling

Military No.

M83723/75 with socket contacts

M83723/76 with pin contacts

Amphenol/Matrix No. MB36

Plug Shell, RFI Grounding,

Bayonet Coupling

Military No.

M83723/77 with socket contacts

M83723/78 with pin contacts

Amphenol/Matrix No. MB38

To complete order number see how to order, page 9.

H

Accessory Thread

Class 2A

Shell

Size

A Dia.

Max.

E Dia.

Max.

8

10

12

14

16

18

20

22

24

.776

.906

1.078

1.141

1.266

1.375

1.510

1.625

1.760

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

.5000-20 UNF

.6250-24 UNEF

.7500-20 UNEF

.8750-20 UNEF

1.0000-20 UNEF

1.0625-18 UNEF

1.1875-18 UNEF

1.3125-18 UNEF

1.4375-18 UNEF

8
