74LV30N datasheet, PDF - EEWORLD Datasheet

74LV30N: DescriptionNAND Gate, CMOS, PDIP14,; Categorylogic logic; File Size390KB，9 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

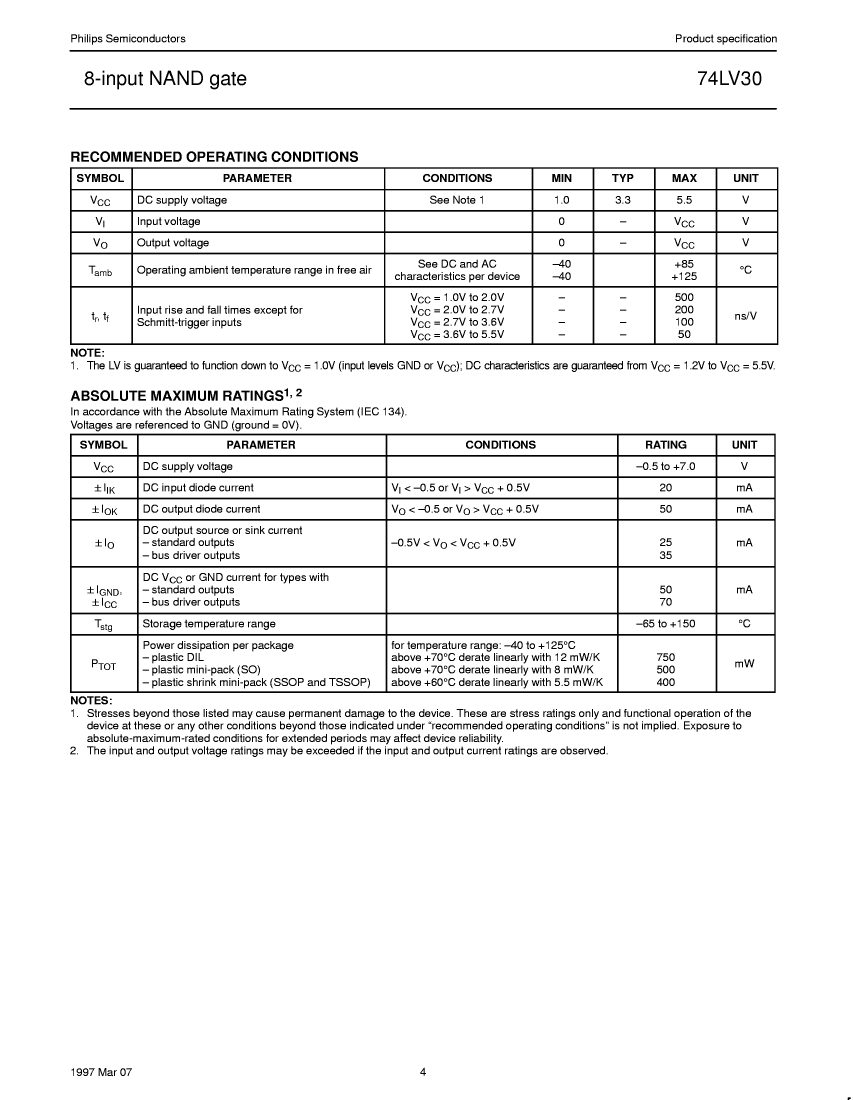

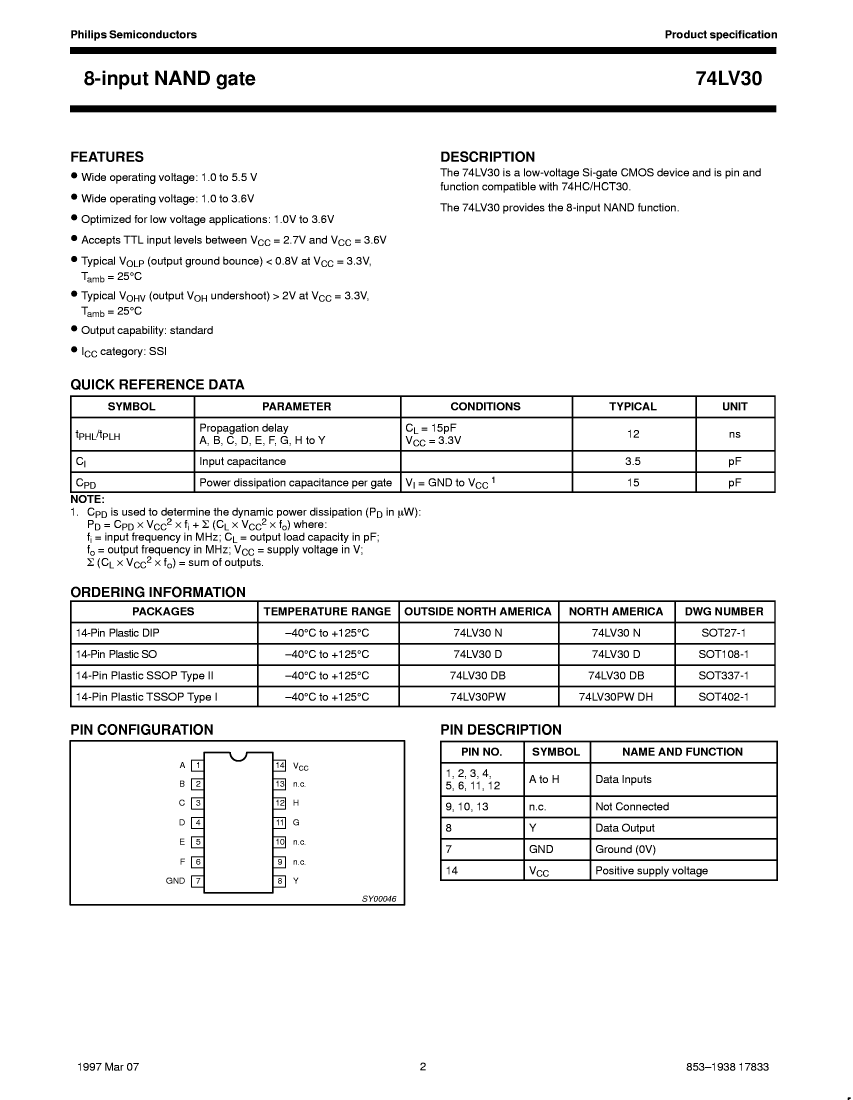

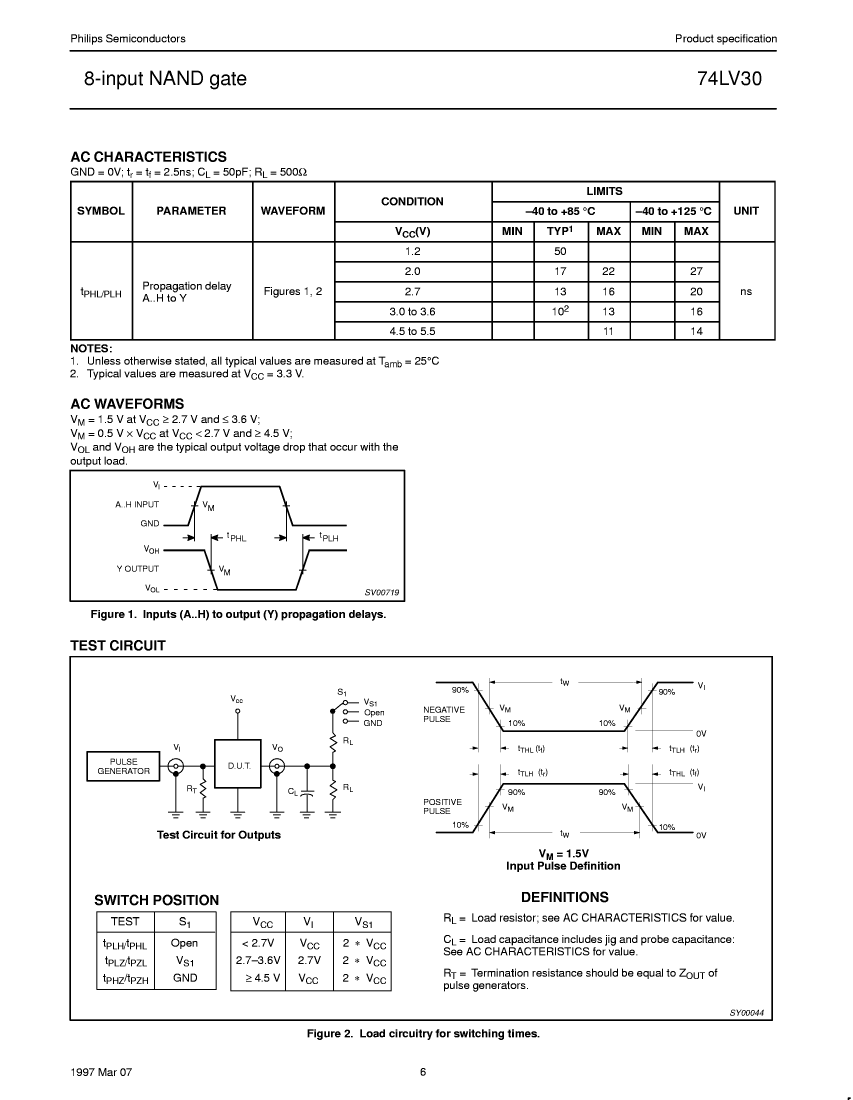

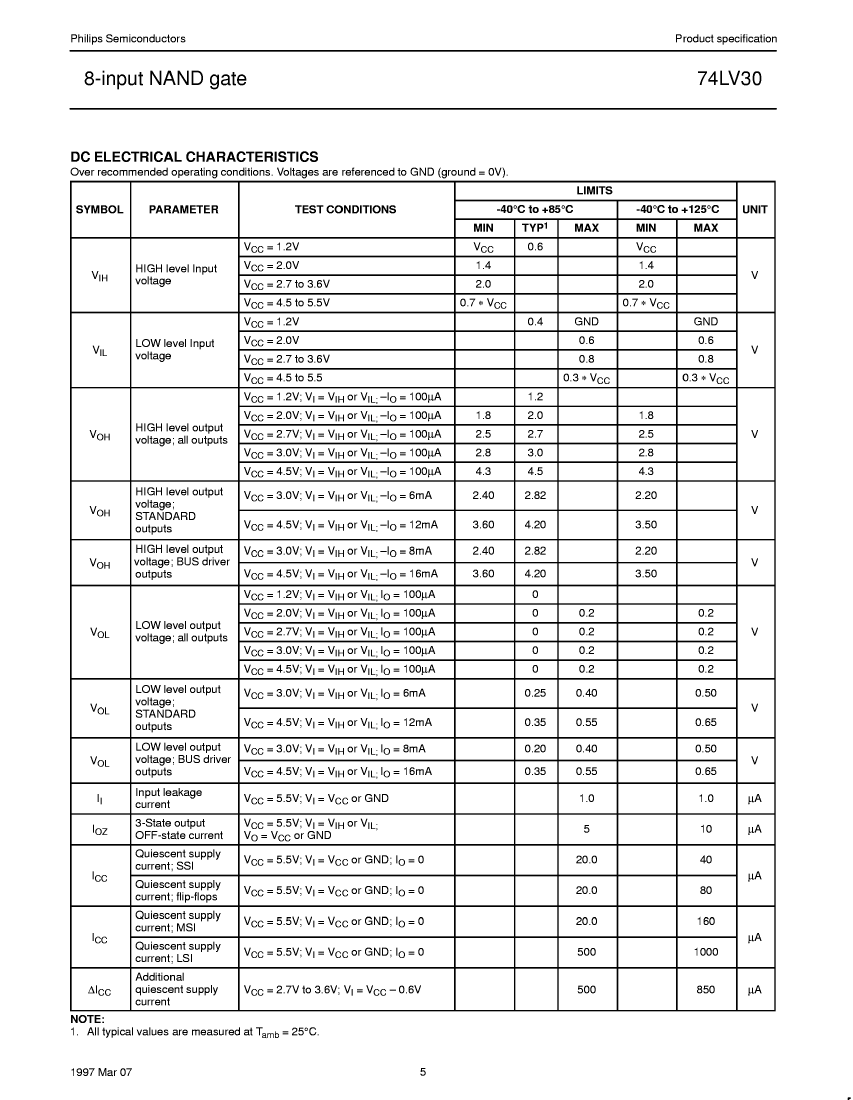

74LV30N Overview

NAND Gate, CMOS, PDIP14,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.012 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3.3 V
Prop。Delay @ Nom-Sup	16 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	74LV30N	74LV30DB	74LV30PW
Description	NAND Gate, CMOS, PDIP14,	NAND Gate, CMOS, PDSO14,	NAND Gate, CMOS, PDSO14,
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	SSOP, SSOP14,.3	TSSOP, TSSOP14,.25
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE
MaximumI(ol)	0.012 A	0.012 A	0.012 A
Number of terminals	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SSOP	TSSOP
Encapsulate equivalent code	DIP14,.3	SSOP14,.3	TSSOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	3.3 V	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	16 ns	16 ns	16 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	-
Maker	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
